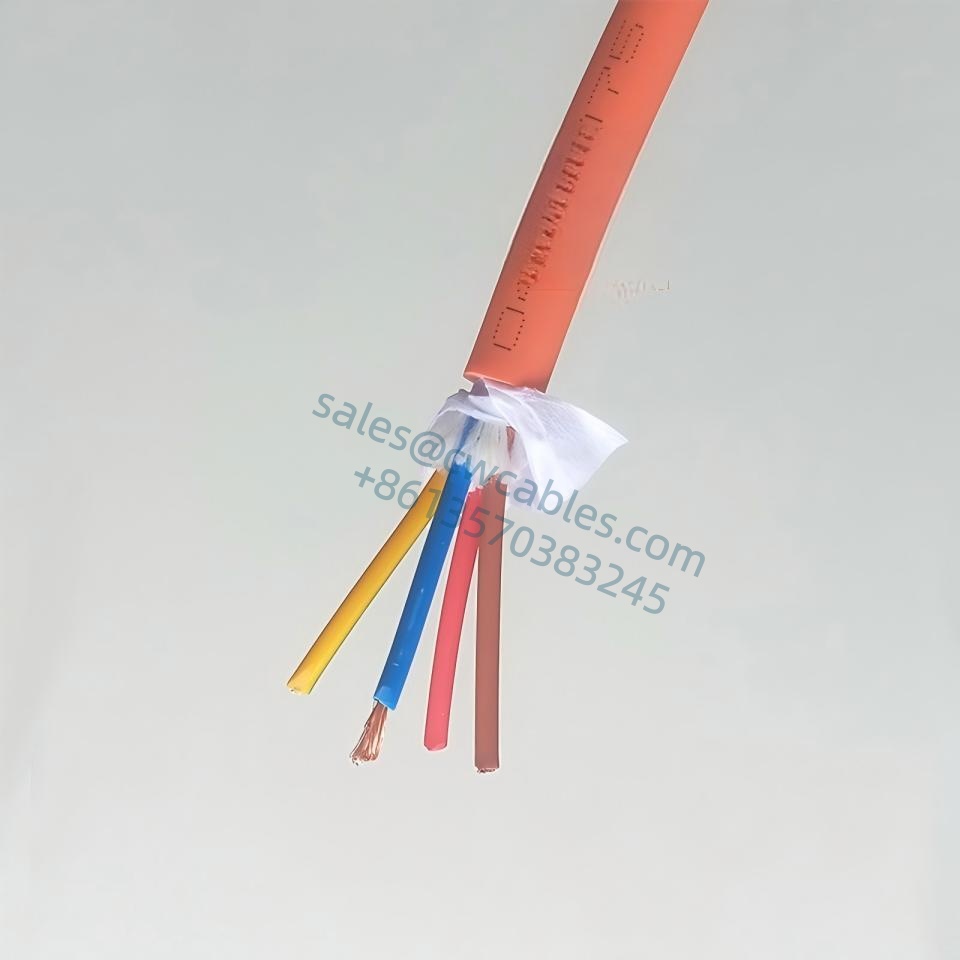

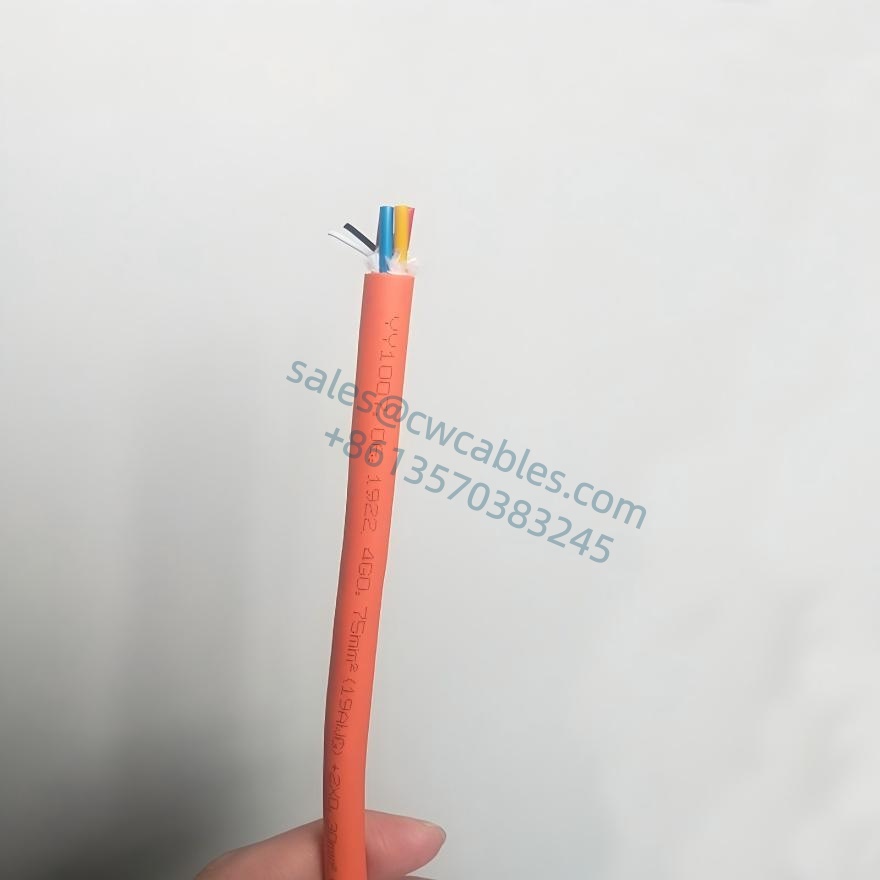

YY1008 Ultra High Flexible Drag Chain Power Torsion Cables With Shielded

●It adopts a wrapped structure, and the conductor is made up of 0.08 ultra-fine copper wires twisted together in groups, providing excellent flexibility.

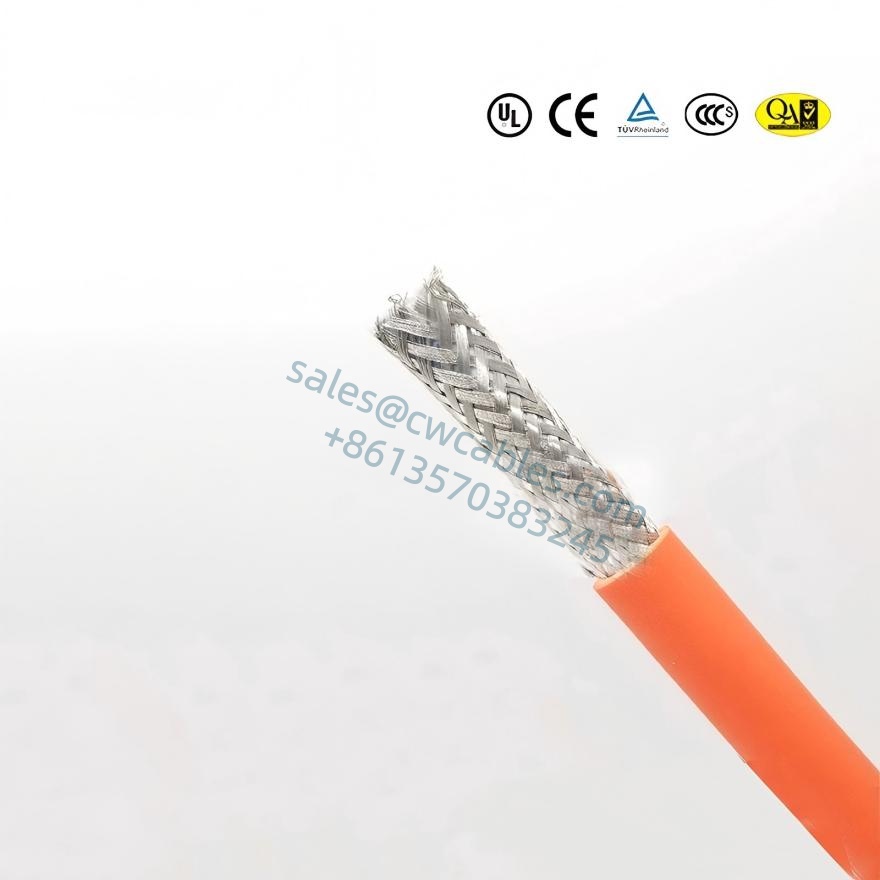

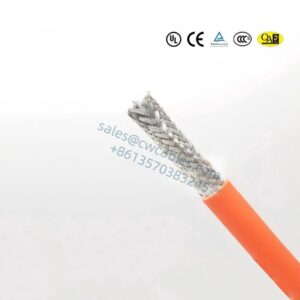

●It has a tinned copper wire braided shielding layer to effectively eliminate signal interference.

●It is suitable for extremely harsh industrial environments with corrosive coolants and lubricants, offering excellent oil resistance and wear resistance.

●It has good resistance to microorganisms, hydrolysis, chemical corrosion, UV radiation, and low temperatures.

●Drag Chain Power Torsion Cables can be used indoors and outdoors, in both dry and humid conditions, making it particularly suitable for industrial environments.

●Under normal usage conditions, it generally has a service life of over 10 million cycles, making it suitable for use in high-speed drag chains.

Thêm vào trích dẫn

Thể loại: Cáp xích kéo tốc độ cao (kiểm tra độ tin cậy 10 triệu lần đối với xích kéo), kéo chuỗi cáp thẻ: PVC, UL

Sự miêu tả

●It adopts a wrapped structure, and the conductor is made up of 0.08 ultra-fine copper wires twisted together in groups, providing excellent flexibility.

●It has a tinned copper wire braided shielding layer to effectively eliminate signal interference.

●It is suitable for extremely harsh industrial environments with corrosive coolants and lubricants, offering excellent oil resistance and wear resistance.

●It has good resistance to microorganisms, hydrolysis, chemical corrosion, UV radiation, and low temperatures.

●Drag Chain Power Torsion Cables can be used indoors and outdoors, in both dry and humid conditions, making it particularly suitable for industrial environments.

●Under normal usage conditions, it generally has a service life of over 10 million cycles, making it suitable for use in high-speed drag chains.

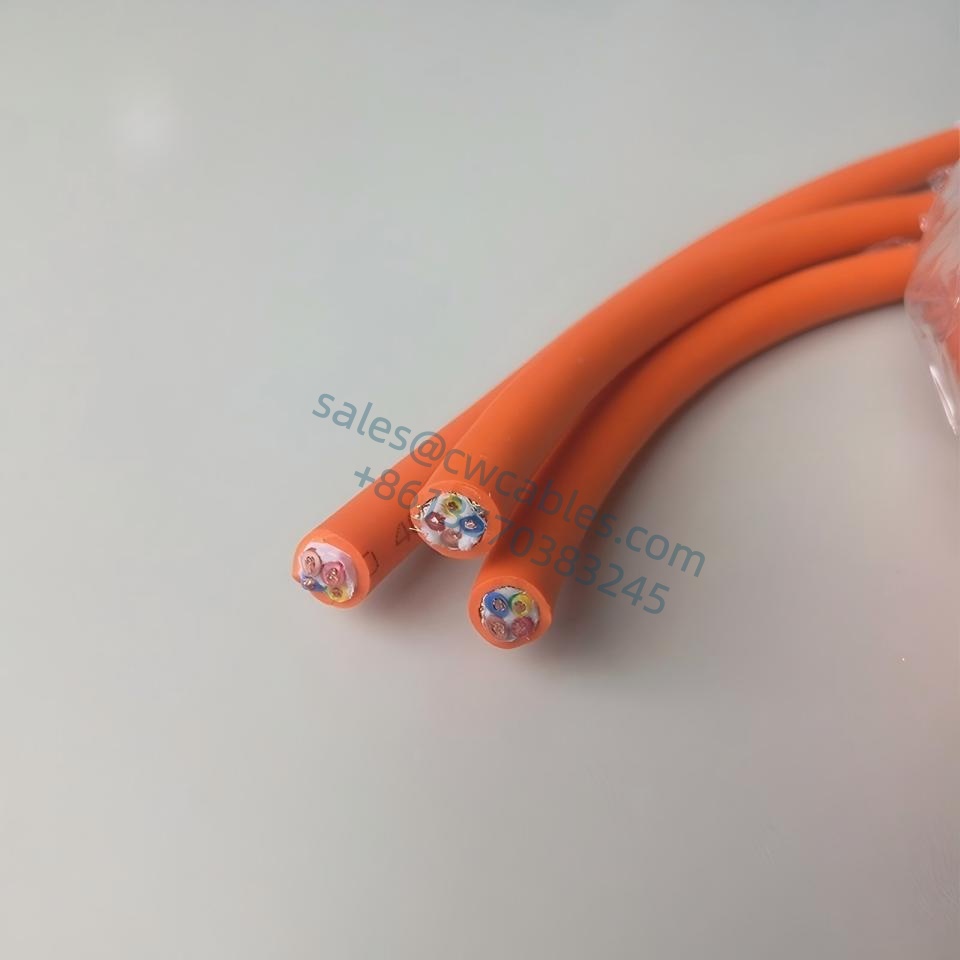

Drag Chain Power Torsion Cables

YY1008 ULTRA HIGH FLEXIBLE DRAG CHAIN POWER CABLE WITH SHIELD ( 10 million times reliability tests for drag chain)
KHÔNG.	Mã sản phẩm	Số lõi và diện tích mặt cắt ngang	Đường kính ngoài gần đúng （mm)	Màu vỏ ngoài
KHÔNG.	Mã sản phẩm	(SỐ.Xm㎡)	Đường kính ngoài gần đúng （mm)	Màu vỏ ngoài
1	YY1008.03.0050	3G0.5	7,0	Orange, Black
2	YY1008.04.0050	4G0.5	7,5	Orange, Black
3	YY1008.04.0075	4G0.75	8.2	Orange, Black
4	YY1008.04.0100	4G1.0	9,0	Orange, Black
5	YY1008.04.0150	4G1.5	10,0	Orange, Black
6	YY1008.04.0250	4G2.5	12.2	Orange, Black

G = Represents the yellow-green grounding wire. For more specifications or special customized products, please contact our product consultant.

The MOQ for the above cable is one roll (100 M). If the cable with PUR sheath, the MOQ is 400 meters.

Technical Parameter Of Drag Chain Power Torsion Cables

● Special PVC sheath, with ultra-high flexibility

● Temperature range Mobile installation: -5°C to +70°C Fixed installation: -15°C to +80°C

● Nominal voltage Uo/U: 300/500V

● Test voltage: 2000V ● Insulation resistance: Minimum 20 MOhmxkm

● Minimum bending radius: Mobile installation: 6 x cable diameter Fixed installation: 4 x cable diameter

●Compliant with EU RoHS and Reach regulations.

● Flame retardant, compliant with IEC 60332-1-2, CEI 20-35, FT1, VW-1.

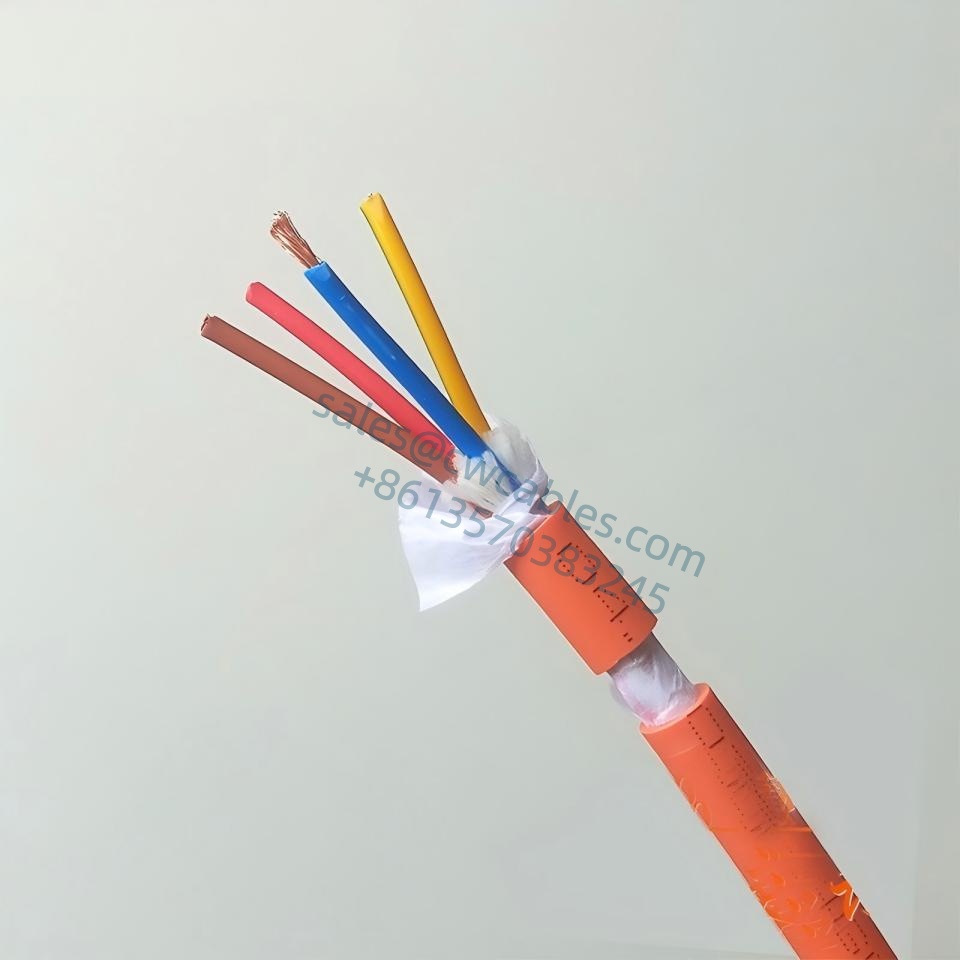

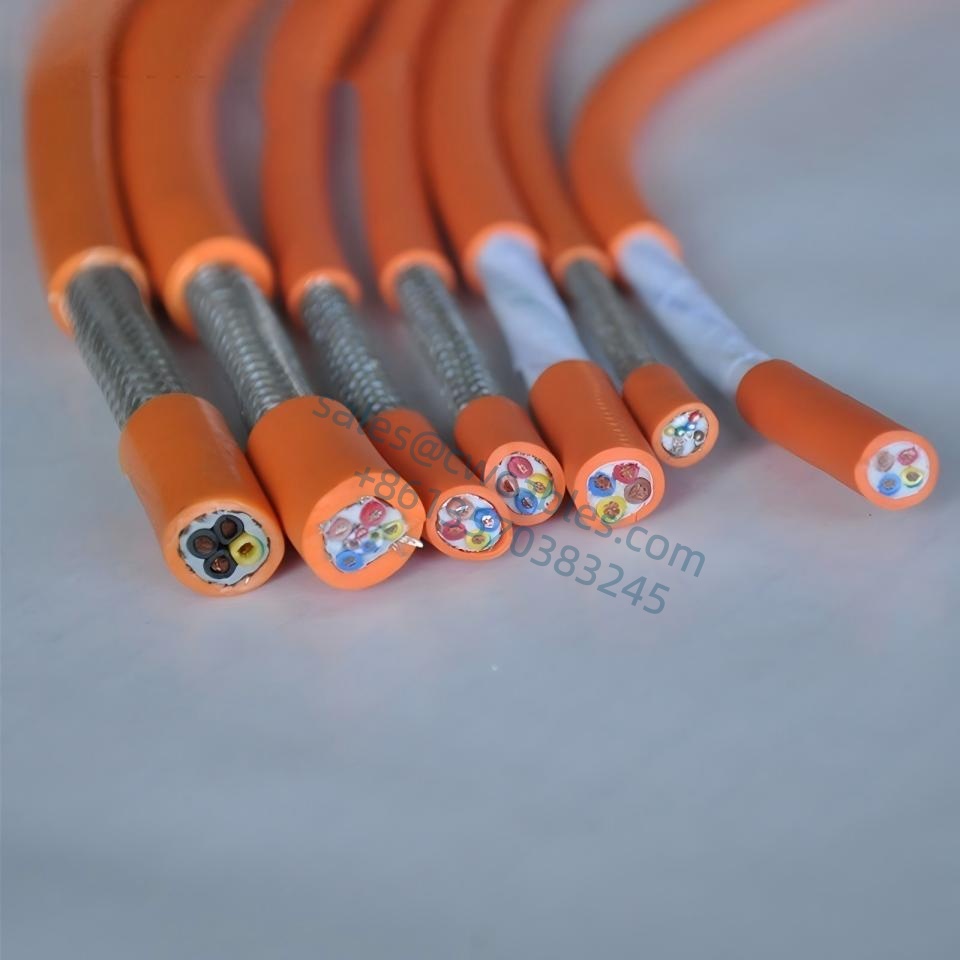

Drag Chain Power Torsion Cables Structure

● 0.08mm² Bare copper conductor, ultra-fine copper wire

●Compliant with DIN VDE 0295 Class 6 and IEC 60228 Class 6

●PVC cách nhiệt đặc biệt

●Color-coded cores

●Optimal pitch concentric stranded cores

●With yellow-green grounding wire (3 cores and above)

●Improved tinned copper wire braiding shield

●Minimum coverage rate of 90%

● Grey, black, orange or color can be customized according to customer requirements.

High-flexible drag chain cable testing standards

(10 million times reliability tests for drag chain)

1.Drag Chain Bending Test

Test method: Take a 2-meter finished cable assembly, bend it with a radius 6 times the outer diameter of the cable, move it back and forth for a travel distance of 900mm at a speed of 90 cycles per minute.

Judgment criteria: 1. Over 10,000,000 cycles of reciprocating movement without open circuit or short circuit. 2. No breakage in the sheath.

2.Two-wheel bending test

Test method: Take a 5-meter finished cable, according to the specified pulley diameter and weight of the load, the pulley moves back and forth at a speed of 0.33 meters per second, with a movement distance of more than 1.0 meter.

Judgment criteria: 1. Over 500,000 cycles of reciprocating movement without open circuit or short circuit. 2. No breakage in the sheath.

3.90-degree bending test

Test method: Take a 2-meter finished cable, bend it with a radius 2.5 times the outer diameter of the cable, using the specified weight according to the standard, and bend at a speed of 40 cycles per minute.

Judgment criteria: 1. Over 200,000 cycles of reciprocating movement without open circuit or short circuit. 2. No breakage in the sheath.

YY1008 Ultra High Flexible Drag Chain Power Torsion Cables With Shielded

Technical Parameter Of Drag Chain Power Torsion Cables

Drag Chain Power Torsion Cables Structure

High-flexible drag chain cable testing standards

(10 million times reliability tests for drag chain)
