Technical data Linear encoder connection cable
● The special Teflon insulation and special PUR sheath have ultra-high strength and bending/torsion performance
●Complies with TUV2 PfG 2577 Class V requirements.
●Temperature range: -20°C to +80°C for mobile installation -40°C to +90°C for fixed installation
●Nominal voltage 300/500V
●Test voltage 2000V ●Insulation resistance: Minimum 100 MOhm x km Minimum bending radius:6 x the cable diameter for mobile installation 4 x the cable diameter for fixed installation
●Complies with EU RoHS and Reach regulations.
●Oil resistance: Fully resistant to oil (in compliance with DIN EN50363-10-2 standard), Cass3.
● Black or color can be customized according to customer requirements.

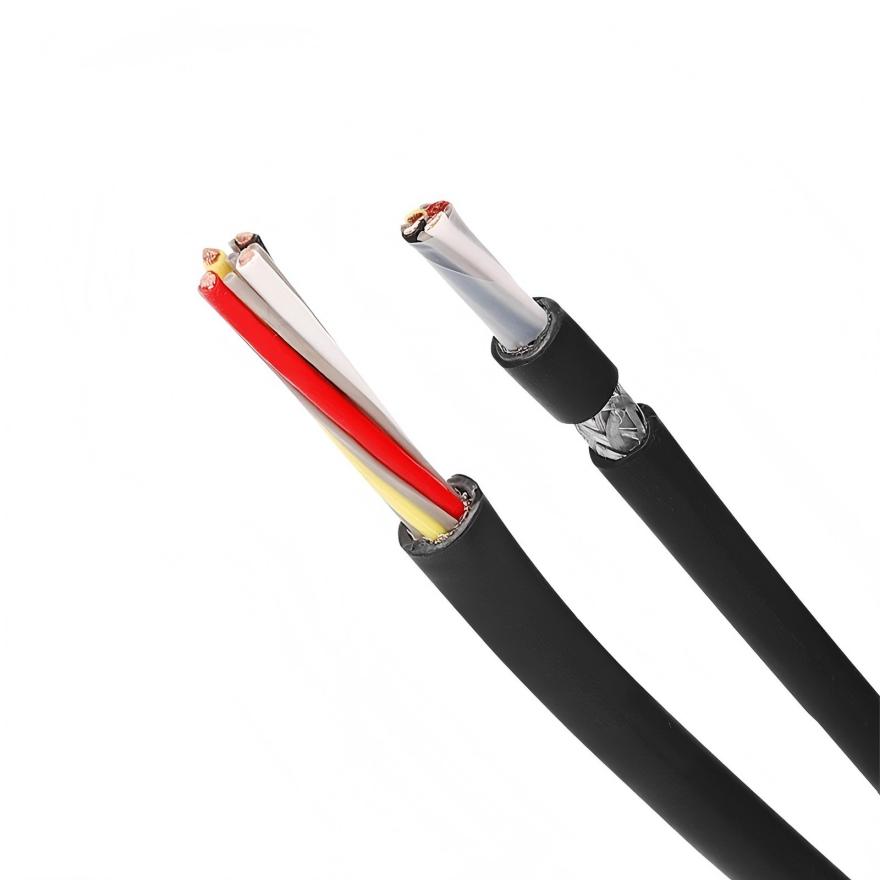

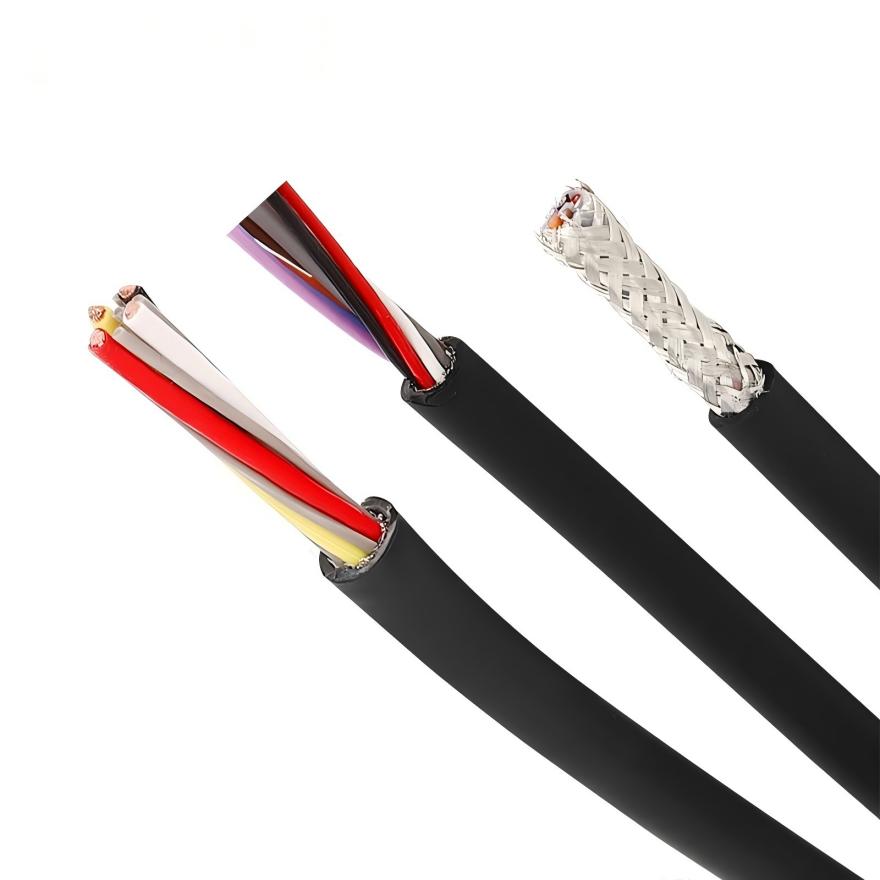

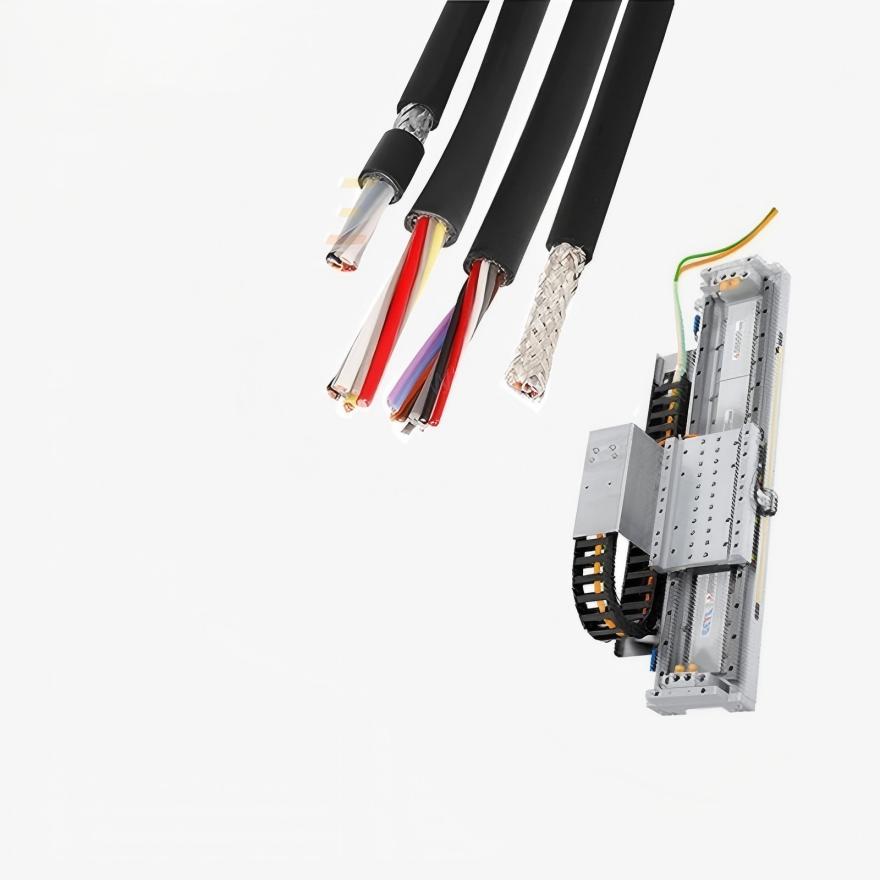

Cấu trúc cáp
●Bare copper conductor, ultra-fine copper wire Complies with DIN VDE 0295 Class 6 and IEC60228 Class 6
●Special fluororesin insulation
●Core wire color is color-coded
●Optimal pitch layer stranded core wire
●Improved tinned copper wire braided shield
● Minimum coverage of 95%
● Low-friction, PUR-based compound suitable for use in drag chains (in compliance with Part 10 of DIN 0281 standard).
| ULTRA HIGH SPEED LINEAR MOTOR POWER CABLE ( 50 million times reliability tests for drag chain) | ||||
| KHÔNG. | Mã sản phẩm | Số lõi và diện tích mặt cắt ngang | Đường kính ngoài gần đúng （mm) | Màu vỏ ngoài |
| (SỐ.Xm㎡) | ||||
| 1 | LM-FP5002.04.0050 | 4×0.5 | 5.2 | Đen |
| 2 | LM-FP5002.04.0075 | 4×0.75 | 6,8 | Đen |
| 3 | LM-FP5002.04.0100 | 4×1.0 | 7,5 | Đen |
| 4 | LM-FP5002.04.0150 | 4×1.5 | số 8 | Đen |
| 5 | LM-FP5002.06.2026 | 4×0.5+(2×0.14) | 6.2 | Đen |
50 Million Times Linear encoder connection cable test standard |
||
| Drag chain bending test | Two rounds of winding test | 90 degree bending test |
| Test method: Take a 2-meter finished cable assembly, bend it with a radius 6 times the outer diameter of the cable, move it back and forth for a travel distance of 900mm at a speed of 90 cycles per minute. | Test method: Take a 5-meter finished cable, according to the specified pulley diameter and weight of the load, the pulley moves back and forth at a speed of 0.33 meters per second, with a movement distance of more than 1.0 meter. | Test method: Take a 2-meter finished cable, bend it with a radius 2.5 times the outer diameter of the cable, using the specified weight according to the standard, and bend at a speed of 40 cycles per minute. |
 |
 |
 |
| Judgment criteria: 1. Over 50,000,000 cycles of reciprocating movement without open circuit or short circuit. 2. No breakage in the sheath. | Judgment criteria: 1. Over 1000,000 cycles of reciprocating movement without open circuit or short circuit. 2. No breakage in the sheath. | Judgment criteria: 1. Over 1000,000 cycles of reciprocating movement without open circuit or short circuit. 2. No breakage in the sheath. |
