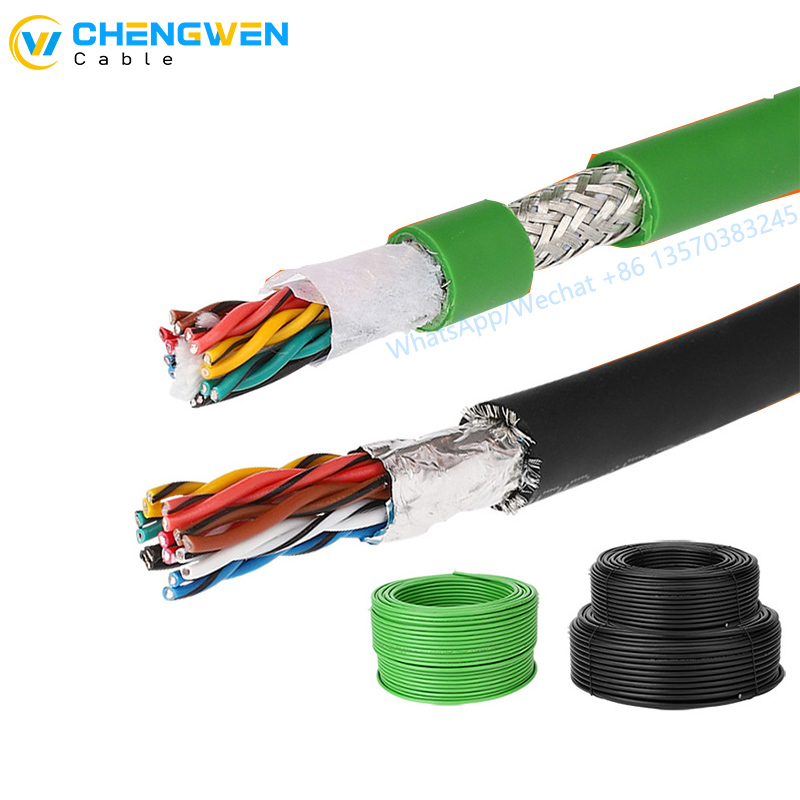

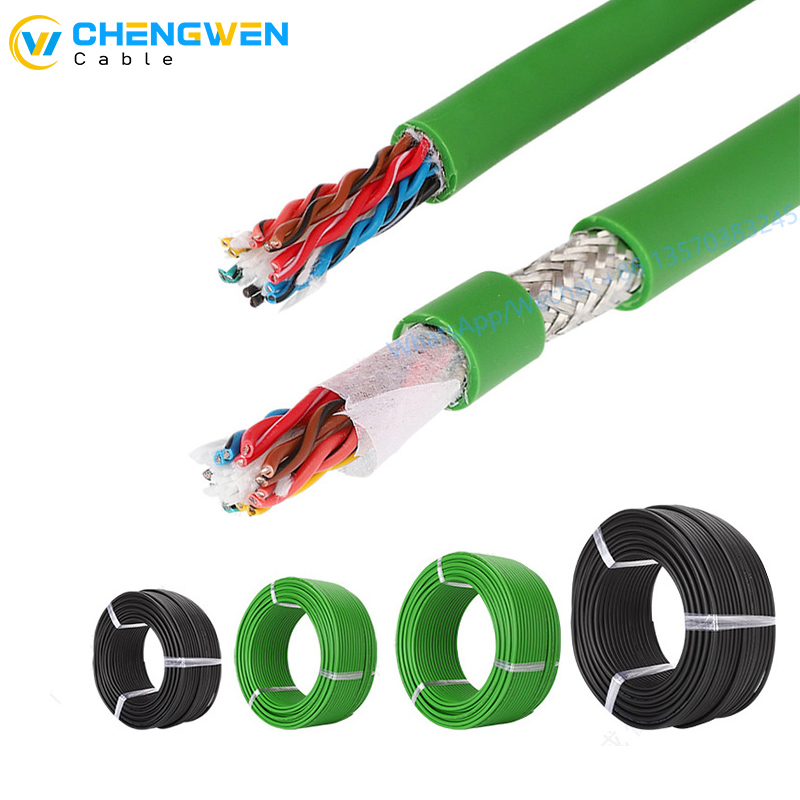

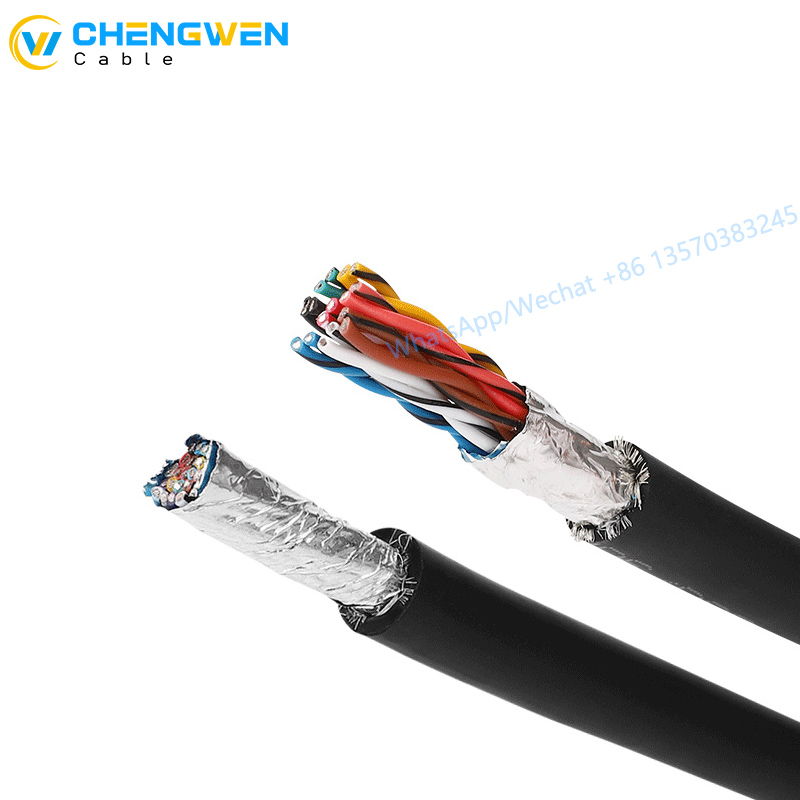

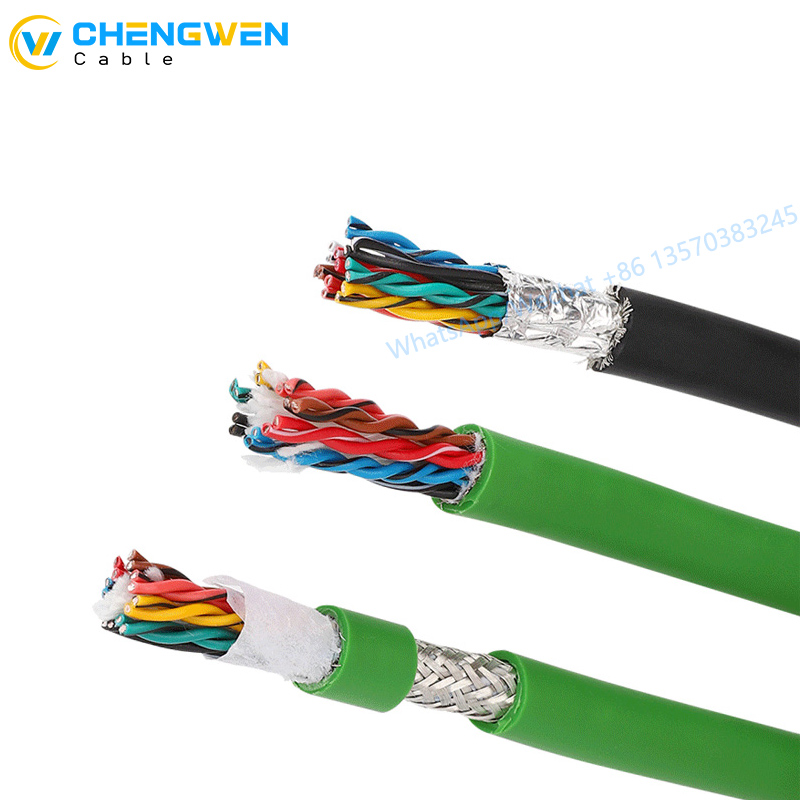

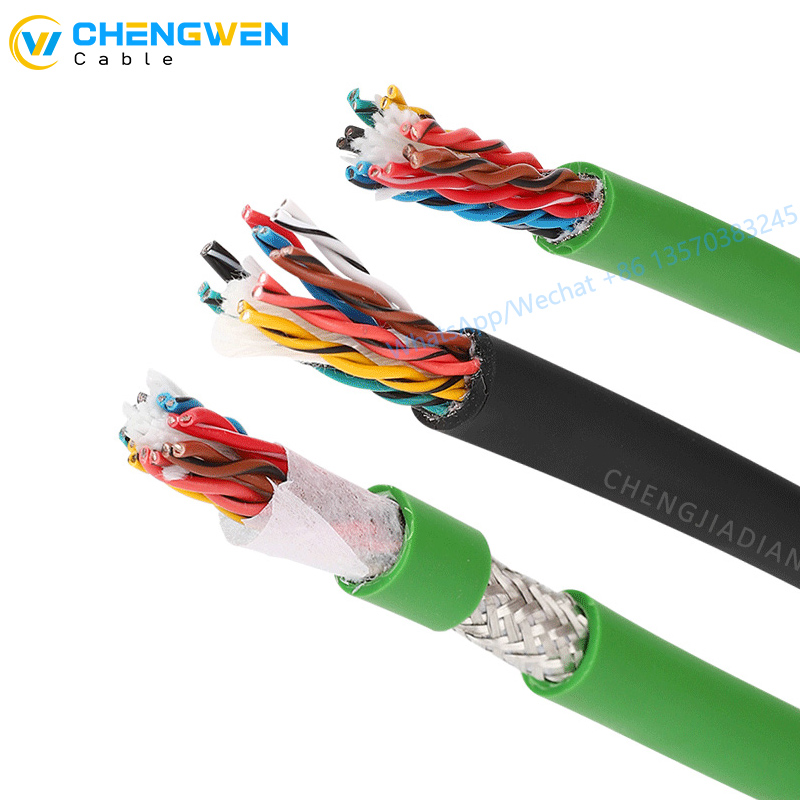

Twisted Pair Shielded Encoder Servo Communication Cable （5 million cycle times)
Features optimized braiding angle for full shielding (wire coverage approx. 70%, optical coverage approx. 90%), optimized pitch and direction of stranding, and a high-pressure molded outer sheath. Maintains structural stability at all times.
Common Models:
-
2x2x0.14mm², 3x2x0.14mm², 4x2x0.14mm², 5x2x0.14mm², 7x2x0.14mm², 8x2x0.14mm²
-
2x2x0.2mm², 3x2x0.2mm², 4x2x0.2mm², 5x2x0.2mm², 7x2x0.2mm², 8x2x0.2mm²
-
2x2x0.3mm², 3x2x0.3mm², 4x2x0.3mm², 5x2x0.3mm², 7x2x0.3mm², 8x2x0.3mm²
Dữ liệu kỹ thuật
●Special PVC sheath with high flexibility
●Temperature range: Mobile installation: -5°C to +70°C Fixed installation: -15°C to +80°C
●Điện áp định mức Uo/U: 300/300V
●Điện áp thử nghiệm: 1500V
●Insulation resistance: Minimum 20 MOhms per kilometer
●Minimum bending radius: Mobile installation: 7.5x cable diameter Fixed installation: 6x cable diameter
●Tuân thủ các quy định RoHS và Reach của EU.
Structure:
●Tinned copper (below 0.5mm²) or bare copper (0.5mm² and above) conductors Fine copper wire, compliant with DIN VDE 0295 Class 6 and IEC 60228 Class 6
●PVC cách nhiệt đặc biệt
●Lõi mã màu (dưới 0,5mm²)
●Black cores with continuous white numeric marking (0.5mm² and above)
●Every 2 cores are twisted into a pair at short intervals.
●Enhanced tinned copper wire braided shielding
●Minimum overall shielding coverage of 85%
●Vỏ bọc ngoài bằng nhựa PVC đặc biệt
●Grey,green, black, or color can be customized according to customer requirements.
| Sản phẩm | Item | Model | Specification | OD | Màu sắc | Mark |
| High Flexible servo Encoder cable(5 million times reliability tests for drag chain) | 1 | YY506.04.0014 | 2Px26AWG | 5.2 | Đen | |
| 2 | YY506.06.0014 | 3Px26AWG | 5,6 | Đen | ||
| 3 | YY506.14.0014 | 7Px26AWG | 7,6 | Black/green | ||
| 4 | YY506.04.0020 | 2P*24AWG | 5,8 | Black/green | ||
| 5 | YY506.06.0020 | 3P*24AWG | 6 | Black/green | ||
| 6 | YY506.08.0020 | 4P*24AWG | 6,8 | Black/green | ||
| 7 | MC-YY506.04.0014 | 2Px26AWG | 5,9 | Đen | Gecko-head coded cable, UL printing/marking. Conductor colors: Black & Brown, Red & Orange, Blue & Purple. |
|
| số 8 | MC-YY506.06.0014 | 3Px26AWG | 5,9 | Đen | ||
| The above is a standardized mass production model. Any specification changes cannot refer to this price system. | ||||||
