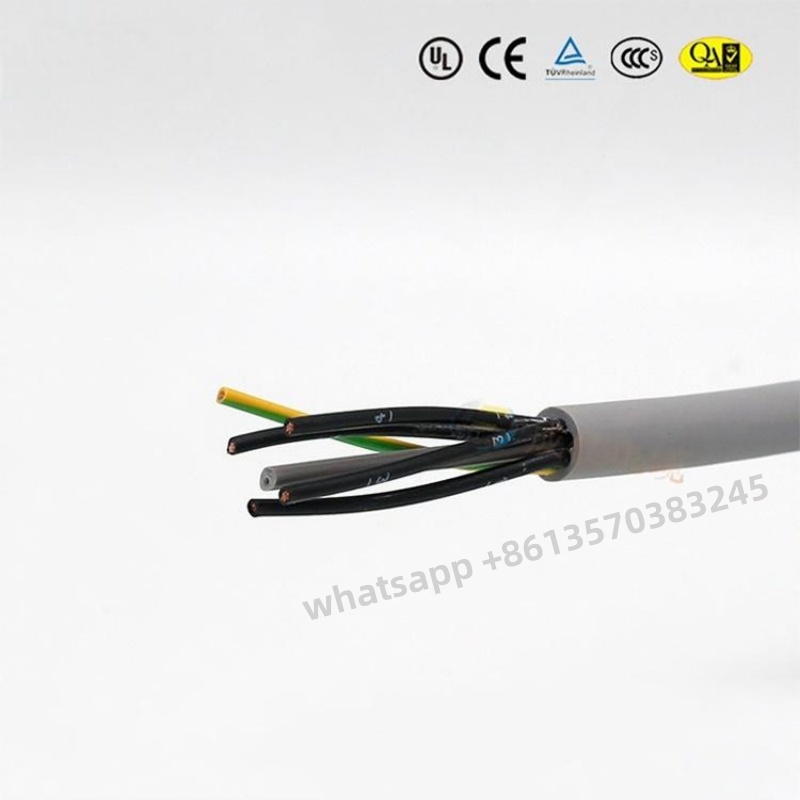

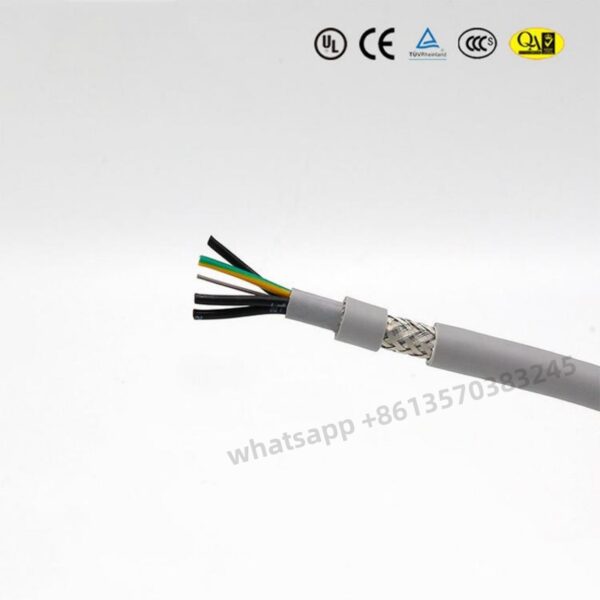

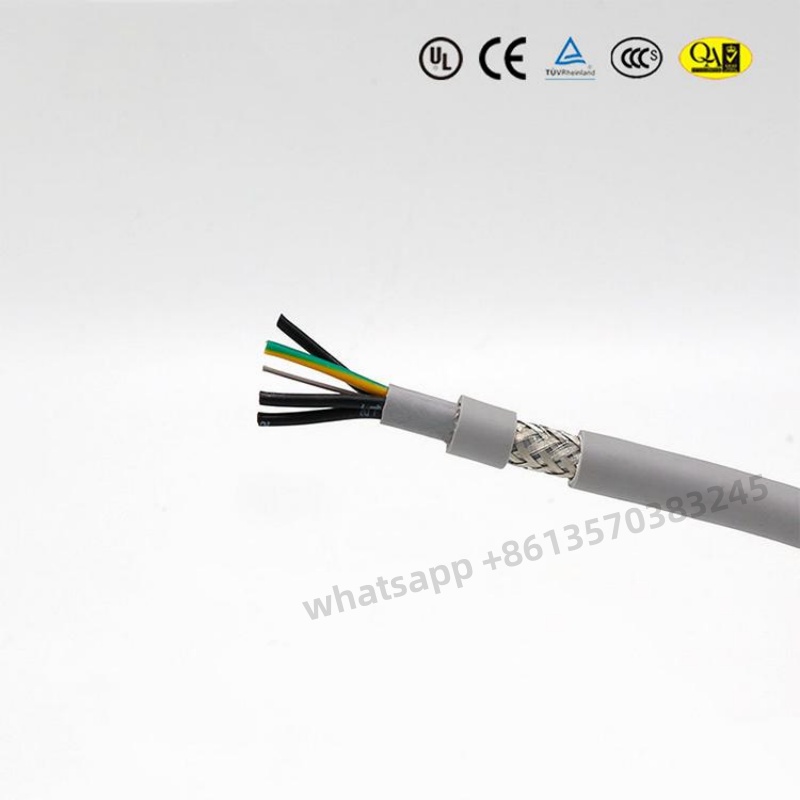

TP100.01 ULTRA HIGH FLEXIBLE PUR CONTROL CABLE (20 million times reliability tests for drag chain) Overhead application travel distance is less than 100 meters
Dữ liệu kỹ thuật
Temperature Range:
Moving inside the drag chain: -20°C to 80°C
Moving outside the drag chain: -40°C to 80°C
Bending Radius:
Moving inside the drag chain: Minimum 7.5xd
Moving outside the drag chain: Minimum 5xd
Drag Chain Life:
Factors affecting the service life of cables within the drag chain:
Temperature, Bending radius, Travel distance, Speed
TUV and Stable Drag Chain Testing Standards:
Temperature range: +15°C to 25°C
Bending radius: 7.5xd
Travel distance: 0.9 meters
Speed: 90 cycles/minute
The drag chain’s life can reach: 20 million cycle times
Maximum Speed and Acceleration:
Overhead: 8 m/s Sliding: 5 m/s Acceleration: 80 m/s²
Travel Distance:
For overhead applications, travel distance is less than 100 meters
Standard Voltage: 300/600V
Test Voltage: 3000V
Especially suitable for mechanical equipment, machine tools, and other applications involving continuous high-intensity and high-speed bending of drag chains. Particularly well-suited for applications in high-speed, long-distance drag chains. The TP100.01 series drag chain cables have been widely used in indoor drag chain systems for storage equipment, processing equipment, packaging equipment, indoor cranes, glass equipment, as well as in the packaging and logistics industries.
Cấu trúc cáp

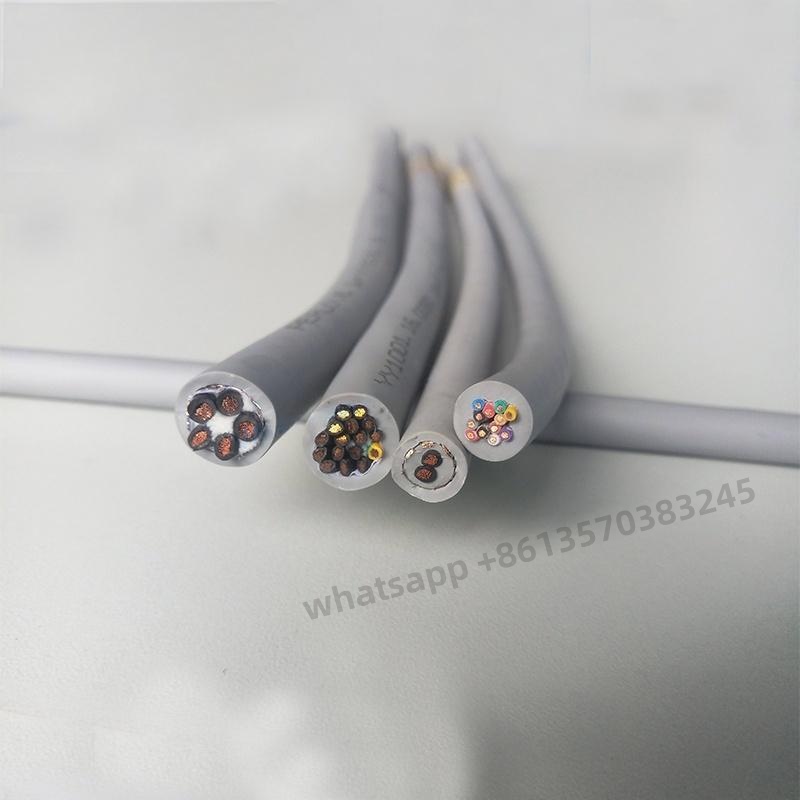

Product Structure:
Complies with UL758 STYLE 21233
Conductor:
High bending strength fine bare copper multi-stranded wire, complies with DIN VDE 0295 Class 5 and IEC 60228 Class 5
Insulation:
High mechanical performance TPE polymer insulation
Core Wire Color:
Cross-sectional area < 0.5 mm²: Color-coded core wires, colors comply with DIN 47100 standard
Cross-sectional area ≥ 0.5 mm²: Yellow-green ground wire with black core wires marked with white numbers

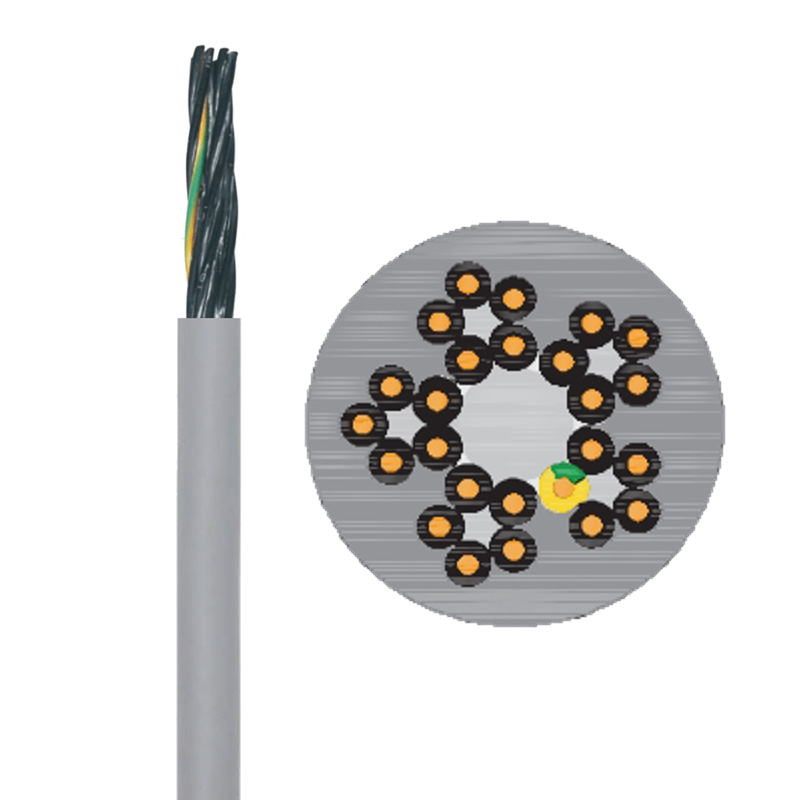

Stranding Method:
Number of cores < 12: Short pitch stranded together in one layer
Number of cores ≥ 12: Grouped and twisted twice to enhance torsional strength
Outer Jacket:
Modified high-strength PUR
| Item | Mã sản phẩm | Number of Cores and Cross-Sectional Area | Approximate Outer Diameter | Màu sắc | Product Number | MOQ |
| 1 | TP100.01.03.0025 | 3×0.25 | 4.50 | Xám | C-801 | |
| 2 | TP100.01.04.0025 | 4×0.25 | 5.00 | Xám | C-802 | |
| 3 | TP100.01.07.0025 | 7×0.25 | 6.00 | Xám | C-805 | |
| 4 | TP100.01.12.0025 | 12×0.25 | 8.50 | Xám | C-809 | |
| 5 | TP100.01.36.0025 | 36×0.25 | 13.50 | Xám | C-817 | ※ |
| 6 | TP100.01.02.0034 | 2×0.34 | 4.50 | Xám | C-819 | |
| 7 | TP100.01.05.0034 | 5×0.34 | 5.60 | Xám | C-822 | |
| số 8 | TP100.01.12.0034 | 12×0.34 | 9.20 | Xám | C-828 | |
| 9 | TP100.01.02.0050 | 2×0,5 | 4.80 | Xám | C-838 | |
| 10 | TP100.01.03.0050 | 3G0.5 | 5.00 | Xám | C-839 | |
| 11 | TP100.01.04.0050 | 4G0.5 | 5.60 | Xám | C-840 | |
| 12 | TP100.01.05.0050 | 5G0.5 | 6.00 | Xám | C-841 | |
| 13 | TP100.01.07.0050 | 7G0.5 | 7.00 | Xám | C-843 | |
| 14 | TP100.01.12.0050 | 12G0.5 | 9.80 | Xám | C-847 | ※ |
| 15 | TP100.01.18.0050 | 18G0.5 | 11.80 | Xám | C-850 | ※ |
| 16 | TP100.01.25.0050 | 25G0.5 | 13.20 | Xám | C-853 | ※ |
| 17 | TP100.01.30.0050 | 30G0,5 | 14.50 | Xám | C-854 | ※ |
| 18 | TP100.01.03.0075 | 3G0,75 | 5.50 | Xám | C-858 | |
| 19 | TP100.01.04.0075 | 4G0.75 | 6.00 | Xám | C-859 | |
| 20 | TP100.01.05.0075 | 5G0,75 | 6.50 | Xám | C-860 | |
| 21 | TP100.01.07.0075 | 7G0,75 | 7.50 | Xám | C-862 | |
| 22 | TP100.01.12.0075 | 12G0.75 | 11.00 | Xám | C-866 | ※ |
| 23 | TP100.01.18.0075 | 18G0.75 | 13.20 | Xám | C-869 | ※ |
| 24 | TP100.01.25.0075 | 25G0.75 | 15.00 | Xám | C-872 | ※ |
| 25 | TP100.01.36.0075 | 36G0.75 | 18.20 | Xám | C-874 | ※ |
| 26 | TP100.01.42.0075 | 42G0.75 | 20.00 | Xám | C-875 | ※ |
| 27 | TP100.01.02.0100 | 2 × 1.0 | 5.60 | Xám | C-876 | |
| 28 | TP100.01.03.0100 | 3G1.0 | 6.00 | Xám | C-877 |
| Item | Mã sản phẩm | Number of Cores and Cross-Sectional Area | Approximate Outer Diameter | Màu sắc | Product Number | MOQ |
| 29 | TP100.01.04.0100 | 4G1.0 | 6.50 | Xám | C-878 | |
| 30 | TP100.01.05.0100 | 5G1.0 | 7.10 | Xám | C-879 | |
| 31 | TP100.01.07.0100 | 7G1.0 | 8.20 | Xám | C-881 | |
| 32 | TP100.01.12.0100 | 12G1.0 | 12.00 | Xám | C-885 | |
| 33 | TP100.01.18.0100 | 18G1.0 | 14.50 | Xám | C-888 | ※ |
| 34 | TP100.01.25.0100 | 25G1.0 | 16.50 | Xám | C-891 | ※ |
| 35 | TP100.01.03.0150 | 3G1.5 | 6.60 | Xám | C-896 | |
| 36 | TP100.01.04.0150 | 4G1.5 | 7.20 | Xám | C-897 | |
| 37 | TP100.01.05.0150 | 5G1.5 | 8.00 | Xám | C-898 | |
| 38 | TP100.01.07.0150 | 7G1.5 | 9.30 | Xám | C-900 | ※ |
| 39 | TP100.01.12.0150 | 12G1.5 | 13.00 | Xám | C-904 | ※ |
| 40 | TP100.01.18.0150 | 18G1.5 | 17.00 | Xám | C-907 | ※ |
| 41 | TP100.01.25.0150 | 25G1.5 | 19.00 | Xám | C-910 | ※ |
| 42 | TP100.01.36.0150 | 36G1.5 | 23.00 | Xám | C-912 | |
| 43 | TP100.01.04.0250 | 4G2.5 | 9.20 | Xám | C-916 | |
| 44 | TP100.01.05.0250 | 5G2.5 | 10.20 | Xám | C-917 | ※ |
| 45 | TP100.01.07.0250 | 7G2.5 | 12.20 | Xám | C-918 | ※ |
| 46 | TP100.01.12.0250 | 12G2.5 | 18.00 | Xám | C-920 | ※ |
Notes
1.G = With yellow-green ground wire X = Without yellow-green ground wire
2.American Wire Gauge (AWG) sizes are approximate; actual cross-sectional area prevails
3.For wire with an outer diameter greater than 10mm, a minimum order of 10 meters is required for the specified ※ items, and delivery will be made as needed
