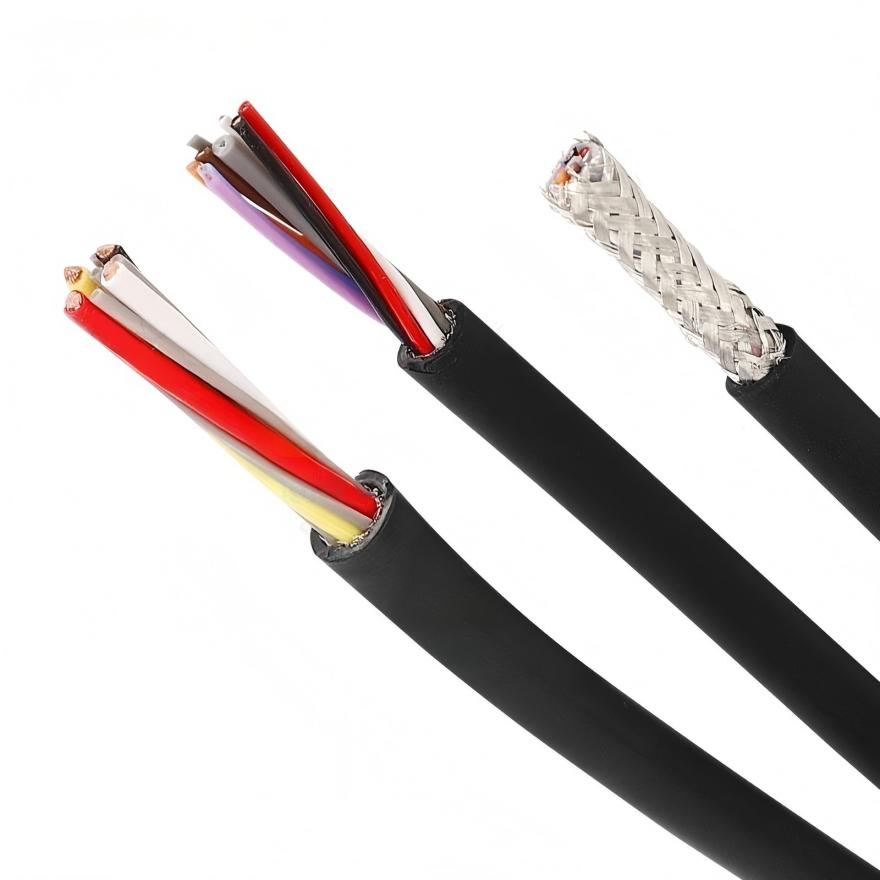

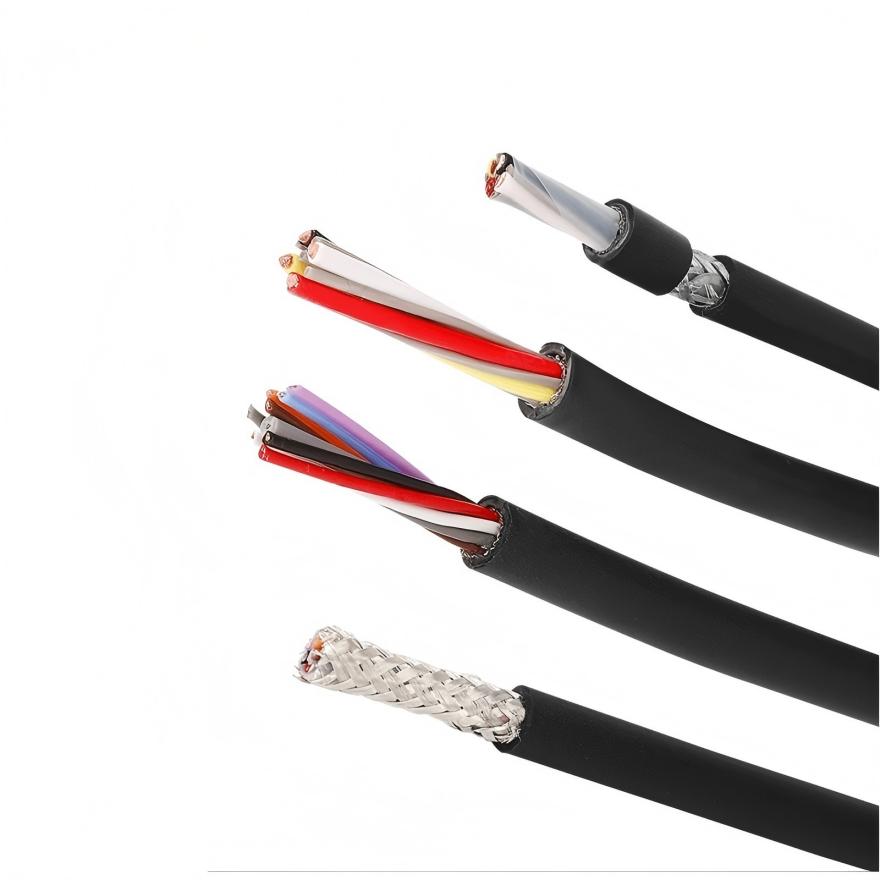

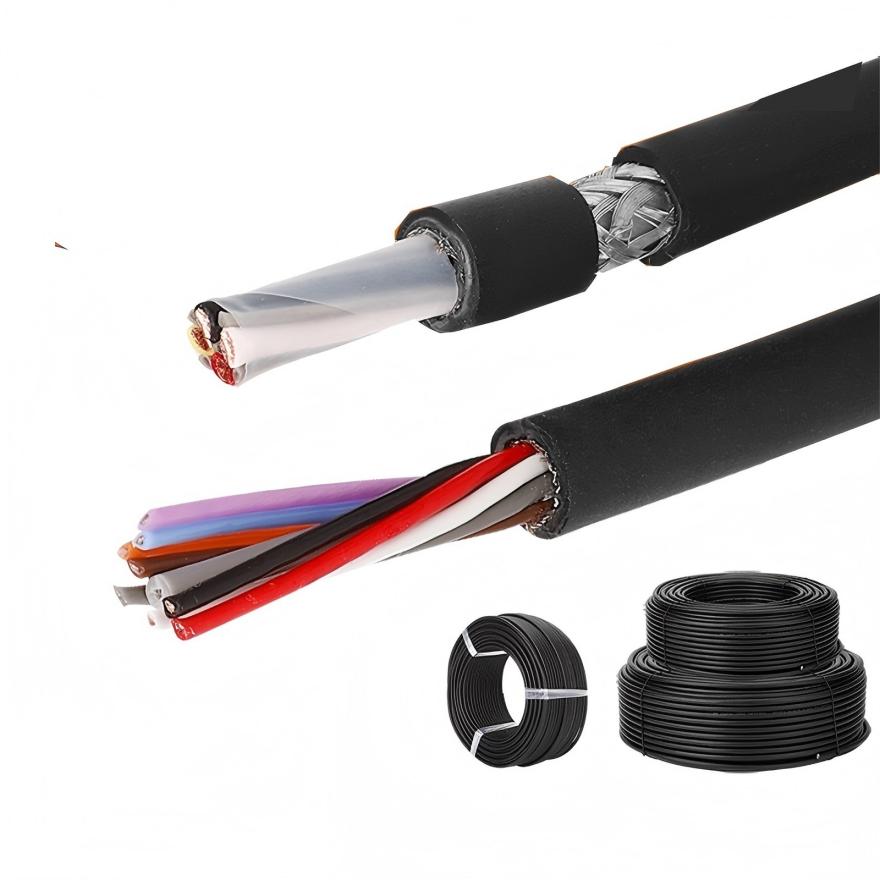

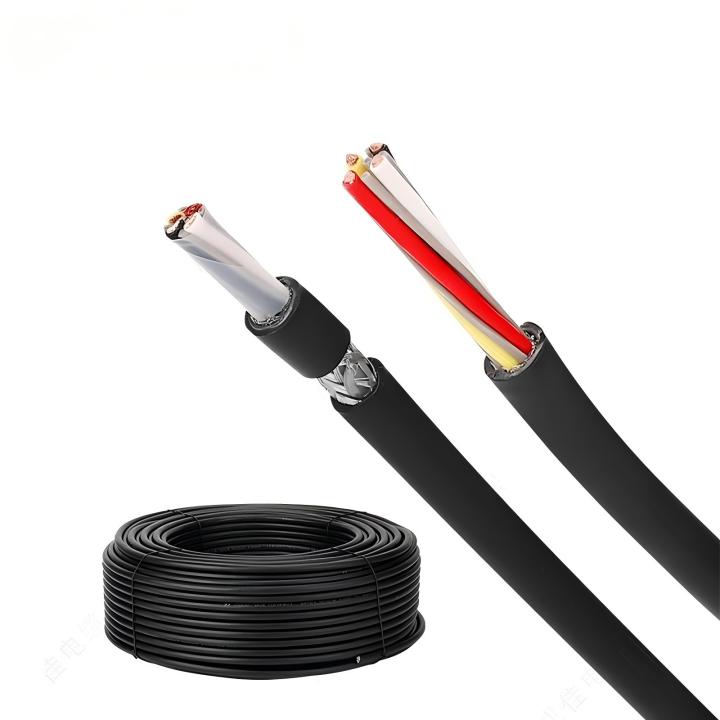

Especially suitable for miniaturized long-term high-speed drag chains, bending and high-strength applications such as linear
motors. Linear Actuator Power Cable must meet the highest requirements in terms of mechanical, chemical and thermal properties.
They must withstand high-speed acceleration and deceleration, tensile and compressive stress , and more than 50 million
periodic bendings. They must also be resistant to high temperatures, metal shavings, oils and other chemicals.
Technical data Linear Actuator Power Cable
Special Teflon insulation, special PUR outer sheath
Has ultra-high strength and bending properties
Conforms to TUV 2 PfG 2577 ClassV requirements
Phạm vi nhiệt độ: Mobile installation -20°C to +80°C
Fixed installation -40°C to +90°C
Định mức điện áp Uo/U300/500V
Điện áp thử nghiệm 2000V
Vật liệu chống điện:
Minimum 100MOhmxkm0
Bán kính uốn tối thiểu:
Mobile installation 6X cable diameter
Fixed installation 4X cable diameter
Meet EU ROHS, Reach regulations
Bare copper conductor, ultra-fine copper wire
Conforms to DIN VDE 0295 category 6 and IEC 60228 category 6
Special Teflon insulation
The color of the core wire is colored
The cores are layered and stranded at an optimal pitch
Special material inner sheath
Improved Tinned Copper Wire Braid Shield
Minimum coverage 90%
Special PUR outer sheath
black (RAL 9005) matte
| 50 Million Times Linear Actuator Power Cable Parameter | ||||
| KHÔNG. | Mã sản phẩm | Số lõi và diện tích mặt cắt ngang | Đường kính ngoài gần đúng （mm) | Màu vỏ ngoài |
| (SỐ.Xm㎡) | ||||
| 1 | LM-FP5002.04.0050 | 4×0.5 | 5.2 | Đen |
| 2 | LM-FP5002.04.0075 | 4×0.75 | 6,8 | Đen |
| 3 | LM-FP5002.04.0100 | 4×1.0 | 7,5 | Đen |
| 4 | LM-FP5002.04.0150 | 4×1.5 | số 8 | Đen |
| 5 | LM-FP5002.06.2026 | 4×0.5+(2×0.14) | 6.2 | Đen |
50 Million Times Linear Actuator Power Cable test standard |
||
| Drag chain bending test | Two rounds of winding test | 90 degree bending test |
| The test method is to take 2 meters of finished cable, the bending radius is 6 times the outer diameter of the cable, the moving stroke is 900mm, and the reciprocating movement is performed at a speed of 90 times/min. | Test method: take 5 meters of finished cable, according to the specified pulley diameter and weight weight, the pulley moves back and forth at a speed of 0.33 m/s, and the moving distance is more than 1.0 m. | Test method: take 2 meters of finished cable, the bending radius is 2.5 times the outer diameter of the cable, and bend it at a speed of 40 times per minute according to the weight specified in the standard. |
 |
 |
 |
| 1. The number of round trips exceeds 50.000.000 times without open circuit or short circuit. 2. The sheath is not broken | 1. The number of round trips exceeds 1,000,000 times without open circuit or short circuit. 2. The sheath is not broken. | 1. The number of round trips exceeds 1,000.000 times without open circuit or short circuit. 2. The sheath is not broken |
