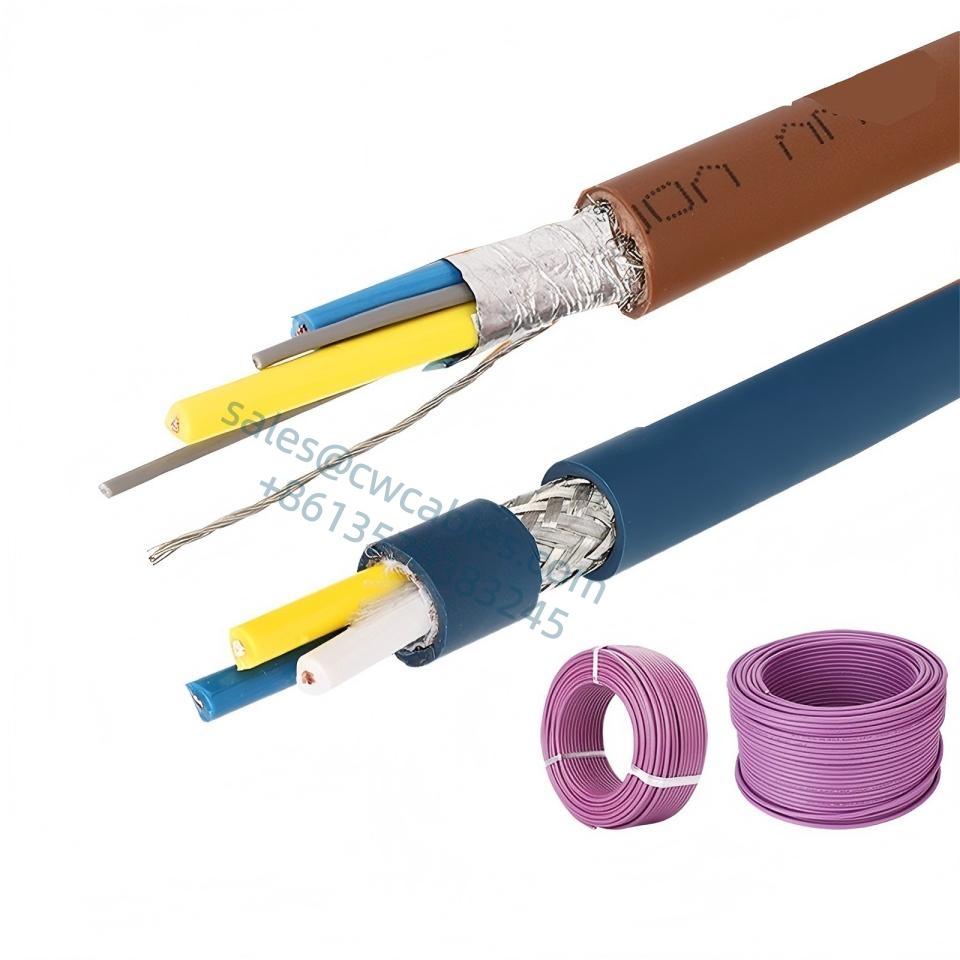

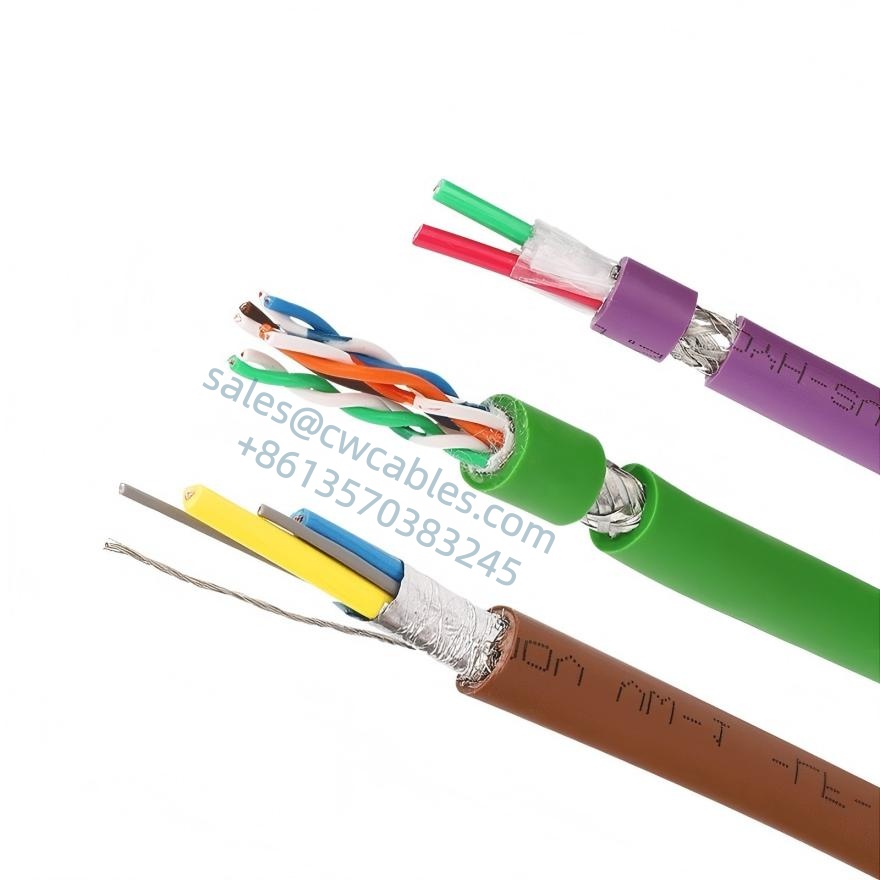

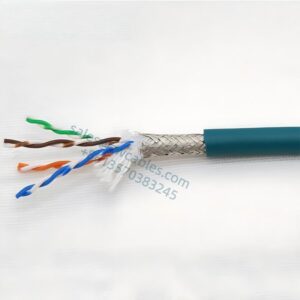

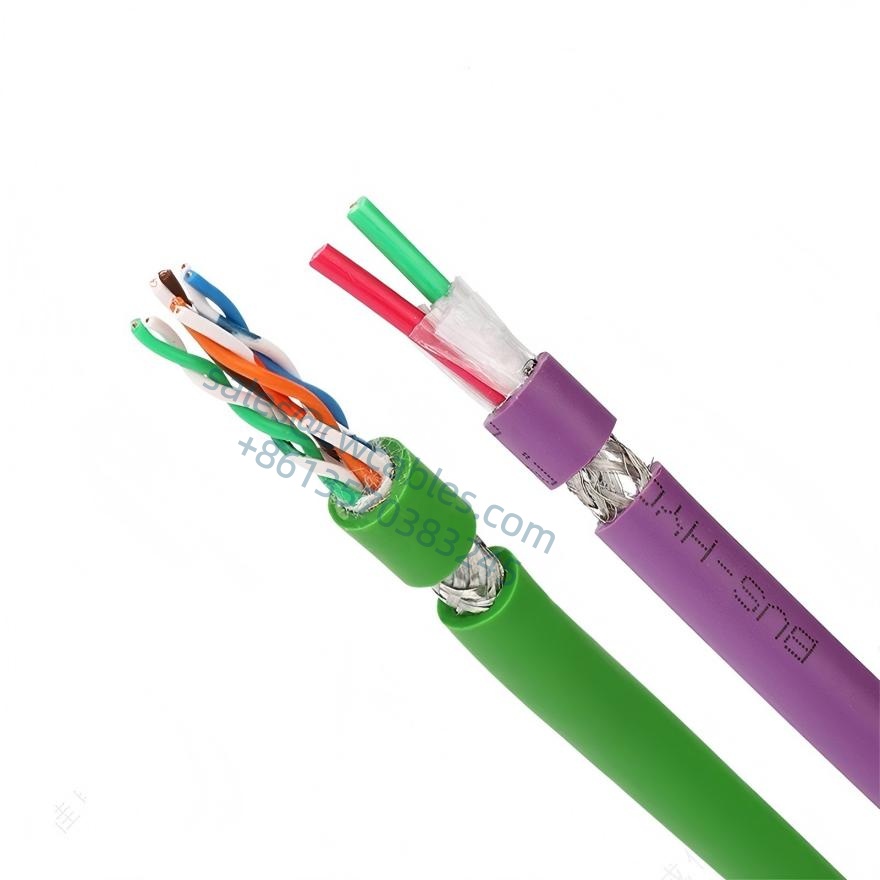

This Highly Flexible Drag Chain Industrial Ethernet CAT 5e/Cat 6a/Cat 7 Cable is designed for data transmission in Ethernet/IP, EtherCAT, and other derivative bus systems, for both fixed installation and occasional mobile use. It features a special structural design and modified outer sheath material, providing high abrasion resistance and dielectric resistance.
Thông số kỹ thuật
●Special PVC sheath.
●Compliant with bus cable specifications.
●Temperature range: Mobile installation: -5°C to +70°C. Fixed installation: -15°C to +70°C.
●Nominal voltage: 30V.
●Test voltage: 500V.
●Minimum insulation resistance: 20 MOhmxkm.
●Minimum bending radius: Mobile installation: 14x cable diameter. Fixed installation: 7x cable diameter.
●Compliance with EU RoHS and Reach regulations.
| Ethernet/CAT5e Parameter | ||||
| KHÔNG. | Mã sản phẩm | Số lõi và diện tích mặt cắt ngang | Đường kính ngoài gần đúng （mm) | Màu vỏ ngoài |
| (SỐ.Xm㎡) | ||||
| 1 | BUS-HY506.08.0014 | 4x2x0,14 | 6,5 | Black Green |
| 2 | BUS-HY1006.08.0020 | 4x2x0,2 | 7 | Black Green |
| Ethernet/CAT6A Parameter | ||||
| KHÔNG. | Mã sản phẩm | Số lõi và diện tích mặt cắt ngang | Đường kính ngoài gần đúng （mm) | Màu vỏ ngoài |
| (SỐ.Xm㎡) | ||||
| 1 | BUS-HY506.08.0014 | 4x2x0,14 | 6,5 | Black Green |
PUR (available) has oil resistance, high abrasion resistance, UV resistance, acid and alkali resistance, chemical corrosion resistance, and resistance to various lubricants.
PUR (available) is resistant to low temperature, especially strong, impact-resistant, and can be selected for hydrolysis resistance.
Special models with customized conductor cross-sectional area, material, shielding, different colored cores, and other specifications of the sheath can be customized according to requirements.
