●The Drag Chain Control Flexible Cable 3 Core adopts a wrapped structure and utilizes optimized ultra-fine conductors (0.08mm) that provide a soft touch and exceptional flexibility.
● The cable adopts a wrapped structure, and has a soft touch.
● Under proper installation and usage conditions, it can have a service life of over 10 million cycles, suitable for use in high-speed motion drag chains.
● It is particularly suitable for high-speed bending motion cable drag chains in equipment such as robotic arms, labeling machines, glue dispensers, engraving machines, etc.
| YY1001 ULTRA HIGH FLEXIBLE DRAG CHAIN CONTROL CABLE COLOR CORE (10 triệu lần kiểm tra độ tin cậy cho xích kéo) | ||||
| KHÔNG. | Mã sản phẩm | Số lõi và diện tích mặt cắt ngang | Đường kính ngoài gần đúng （mm) | Màu vỏ ngoài |
| (SỐ.Xm㎡) | ||||
| 1 | YY1001.05.0050 | 5G0.5 | 6,6 | Grey |
| 2 | YY1001.06.0050 | 6G0.5 | 7.2 | Grey |
| 3 | YY1001.08.0050 | 8G0.5 | 8.2 | Grey |
| 4 | YY1001.10.0050 | 10G0.5 | 9,4 | Grey |
| 5 | YY1001.12.0050 | 12G0.5 | 9,0 | Grey |
| 6 | YY1001.16.0050 | 16G0.5 | 10,0 | Grey |
| 7 | YY1001.20.0050 | 20G0.5 | 11.0 | Grey |
G = Represents the yellow-green grounding wire. For more specifications or special customized products, please contact our product consultant.
The MOQ for the above cable is one roll (100 M). If the cable with PUR sheath, the MOQ is 400 meters.
Technical Parameter Of High Flexible Drag Chain Control Flexible Cable
● Special PVC sheath, with ultra-high flexibility
● Temperature range Mobile installation: -5°C to +70°C Fixed installation: -15°C to +80°C
● Điện áp danh định Uo/U: 300/300V
● Điện áp thử nghiệm: 1500V
● Điện trở cách điện: Tối thiểu 20 MOhmxkm
● Minimum bending radius: Mobile installation: 6 x cable diameter Fixed installation: 4 x cable diameter
● Tuân thủ các quy định RoHS và Reach của EU.
● Flame retardant, compliant with IEC 60332-1-2, CEI 20-35, FT1, VW-1

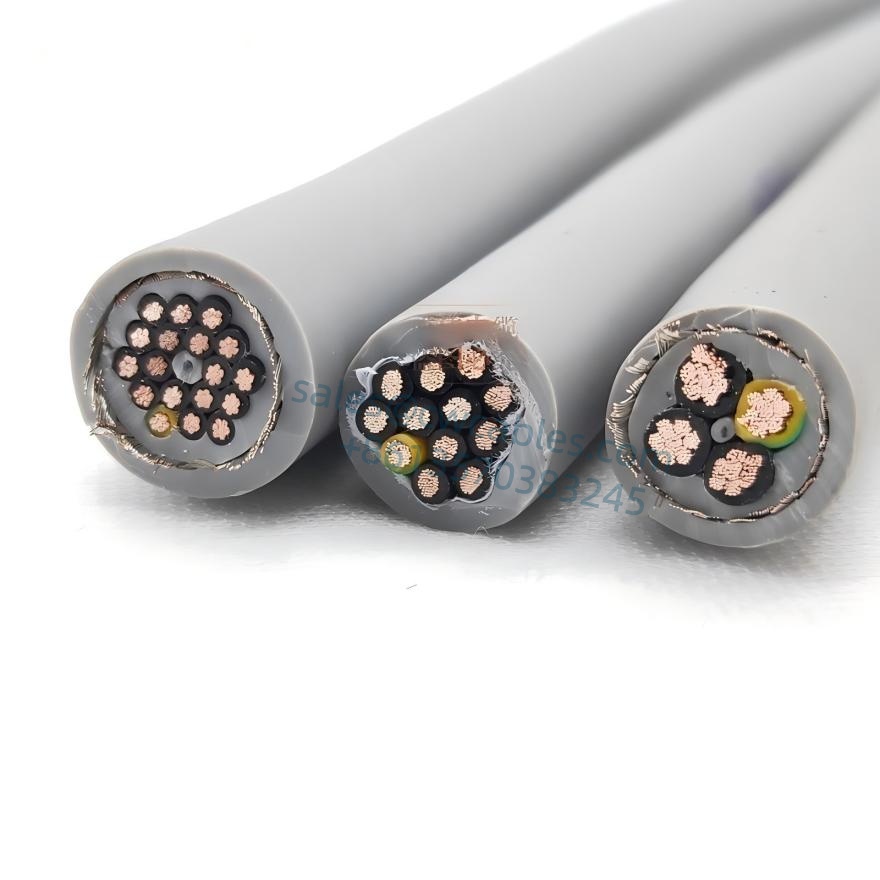

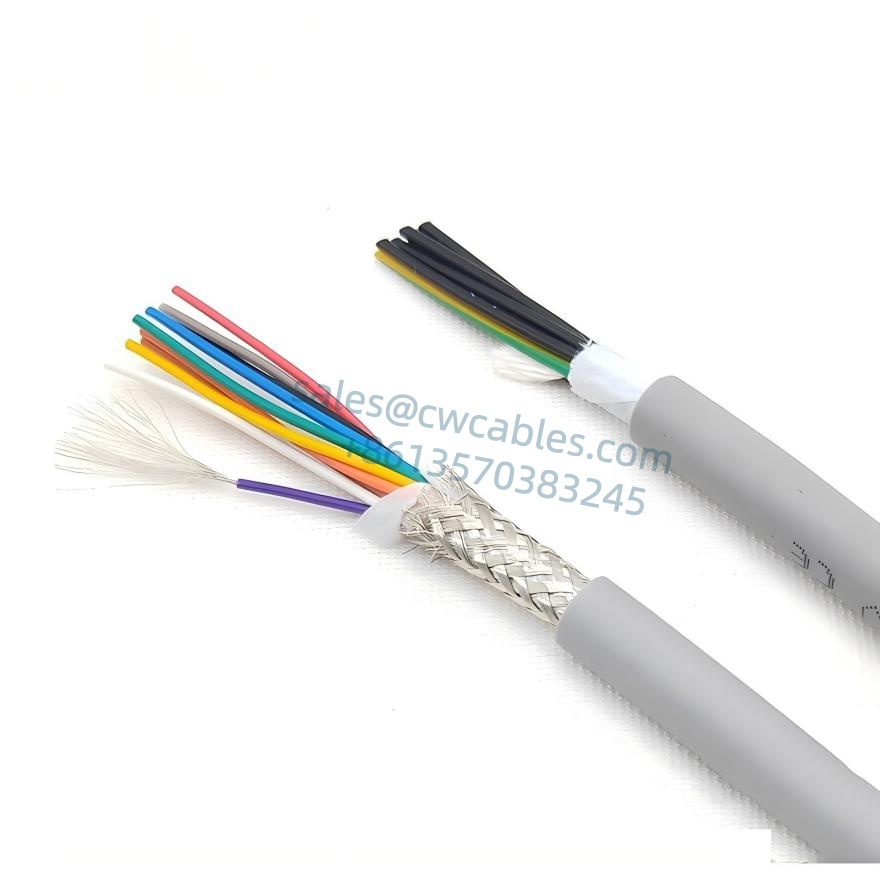

High Flexible Drag Chain Control Flexible Cable Structure
● 0.08mm² Tinned copper conductor, ultra-fine copper wire
● Compliant with DIN VDE 0295 Class 6 and IEC 60228 Class 6
● Lớp cách nhiệt PVC đặc biệt

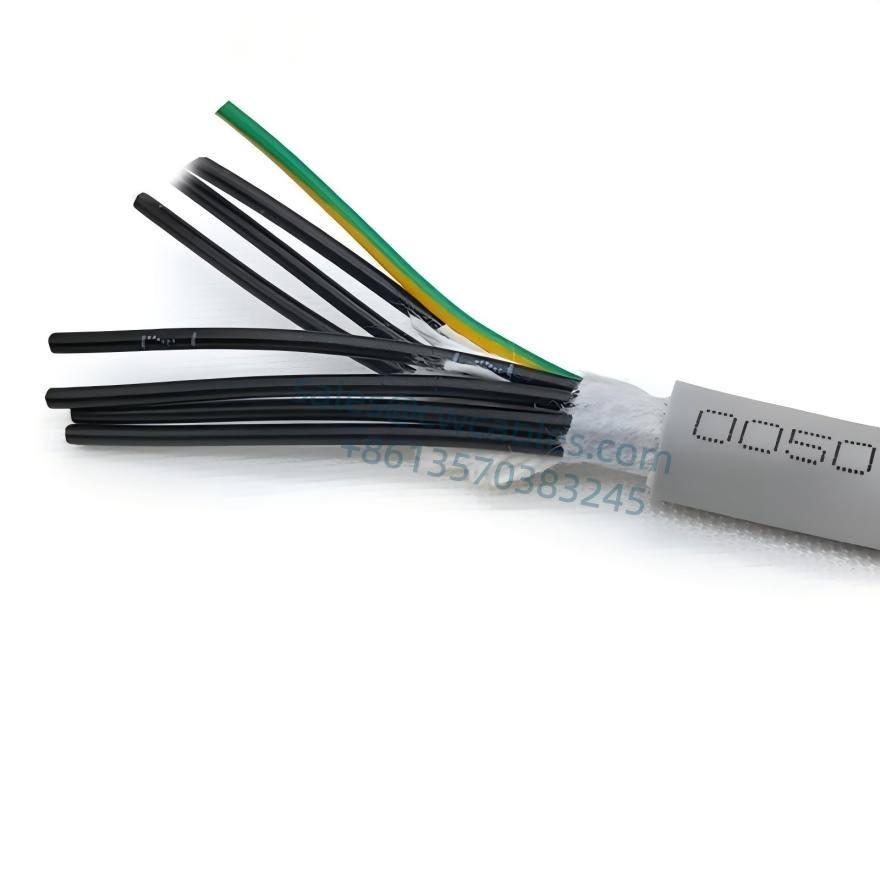

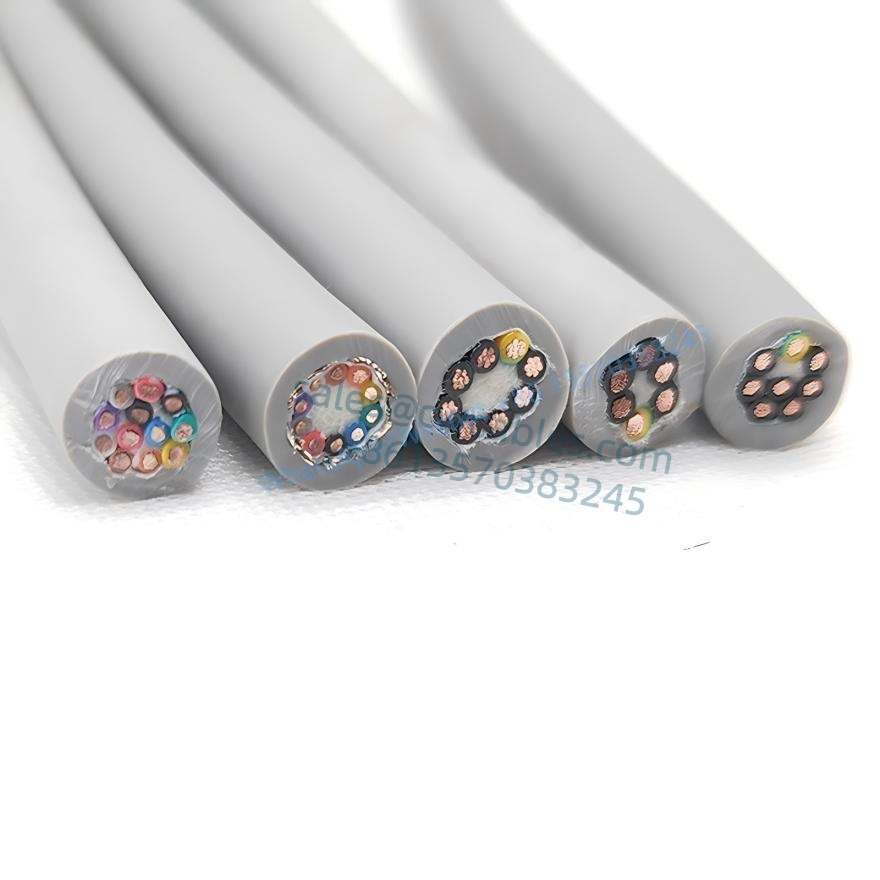

● Black color-coded cores with continuous white numerical coding
● Yellow-green grounding wire on the outer layer (3 cores and above)
● Optimal pitch concentric stranded cores
● Vỏ ngoài bằng PVC đặc biệt
● Grey, black, or color can be customized according to customer requirements.
High-flexible drag chain cable testing standards
(10 million times reliability tests for drag chain)
1.Drag Chain Bending Test
Test method: Take a 2-meter finished cable assembly, bend it with a radius 6 times the outer diameter of the cable, move it back and forth for a travel distance of 900mm at a speed of 90 cycles per minute.
Judgment criteria: 1. Over 10,000,000 cycles of reciprocating movement without open circuit or short circuit. 2. No breakage in the sheath.
2.Two-wheel bending test
Test method: Take a 5-meter finished cable, according to the specified pulley diameter and weight of the load, the pulley moves back and forth at a speed of 0.33 meters per second, with a movement distance of more than 1.0 meter.
Judgment criteria: 1. Over 500,000 cycles of reciprocating movement without open circuit or short circuit. 2. No breakage in the sheath.
3.90-degree bending test
Test method: Take a 2-meter finished cable, bend it with a radius 2.5 times the outer diameter of the cable, using the specified weight according to the standard, and bend at a speed of 40 cycles per minute.
Judgment criteria: 1. Over 200,000 cycles of reciprocating movement without open circuit or short circuit. 2. No breakage in the sheath.
