Control and Instrumentation Sensor/actuator cables for encoders

Specially suitable for various sensors, fixed installations, or occasional mobile applications, this cable must meet high requirements in terms of mechanical, chemical, and thermal performance, as well as withstand bending cycles of over a million times.

Thêm vào trích dẫn

Loại: Cáp cảm biến Nhãn: PVC

Sự miêu tả

Control and Instrumentation Sensor/actuator cables for encoders

Ứng dụng

Factory automation: (1) Inductive proximity sensor (2) Photoelectric sensor (photoelectric switch) (3) Capacitive proximity sensor (4) Ultrasonic sensor (5) Rotary encoder (6) Metal proximity sensor (single/double sheet) (7) Inclination/acceleration sensor (8) Rope pull switch (9) Current sensor (10) Magnetic speed sensor (11) Laser rangefinder (12) Flowmeter (13) Magnetic proximity switch (14) Vibration sensor (15) Eddy current sensor (16) Radar sensor (17) Linear displacement sensor (18) Other small instruments and meters.

Process automation: (1) Safety light curtain (2) Process control sensors, etc.

Thông số kỹ thuật

● Special PVC insulation, special PVC sheath with excellent bending and twisting performance.

● Phạm vi nhiệt độ: Cài đặt di động: -5°C đến +70°C Cài đặt cố định: -15°C đến +70°C

● Rated voltage Uo/U 300/300 V

● Test voltage 1500V

● Insulation resistance: Minimum 20 MOhm x km

● Minimum bending radius: Mobile installation: 7.5x cable diameter Fixed installation: 6x cable diameter

● Complies with EU RoHS and Reach regulations..

● Tinned copper or bare copper conductor, fine copper wire. Complies with DIN VDE 0295 class 6 and IEC 60228 class 6.

● Insulation complies with bus standards.

● Core wire identification complies with bus standards.

● Twisting method complies with bus standards.

● Improved tinned copper wire braided shielding.

● Minimum coverage rate of 85%.

● Special PVC or PUR outer sheath.

● Color: Purple (RAL 4001), matte.

●Tinned copper conductor, fine copper wire. Complies with DIN VDE 0295 class 6 and IEC 60228 class 6.

● Cách nhiệt PVC đặc biệt.

● Core wire color-coded.

● Optimal twisting method with layered stranding.

● Vỏ ngoài bằng nhựa PVC đặc biệt.

● Grey color (RAL7001), matte.

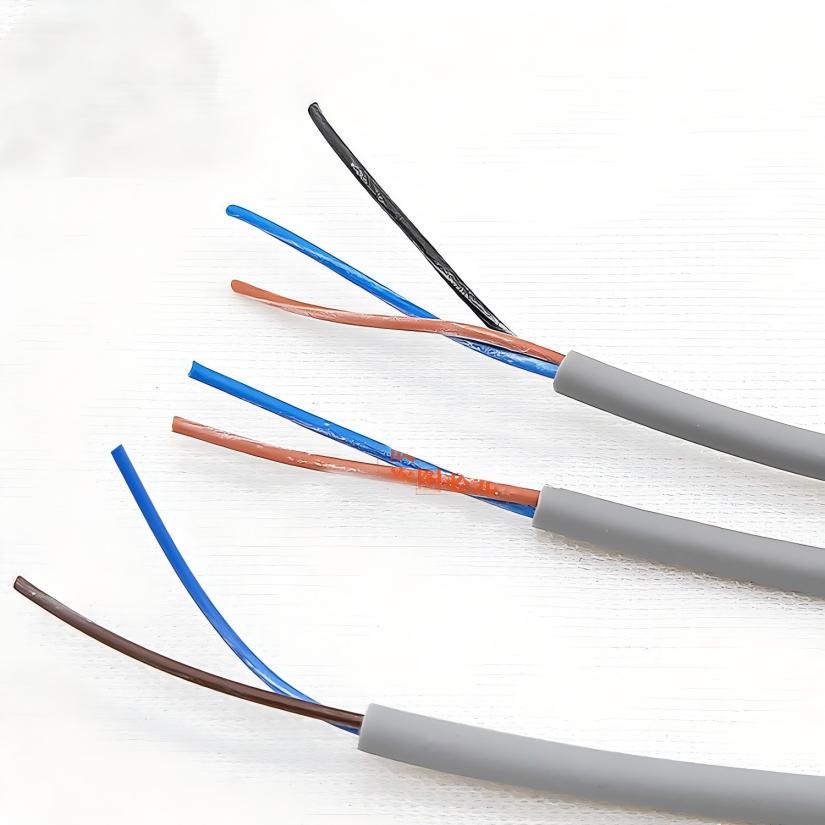

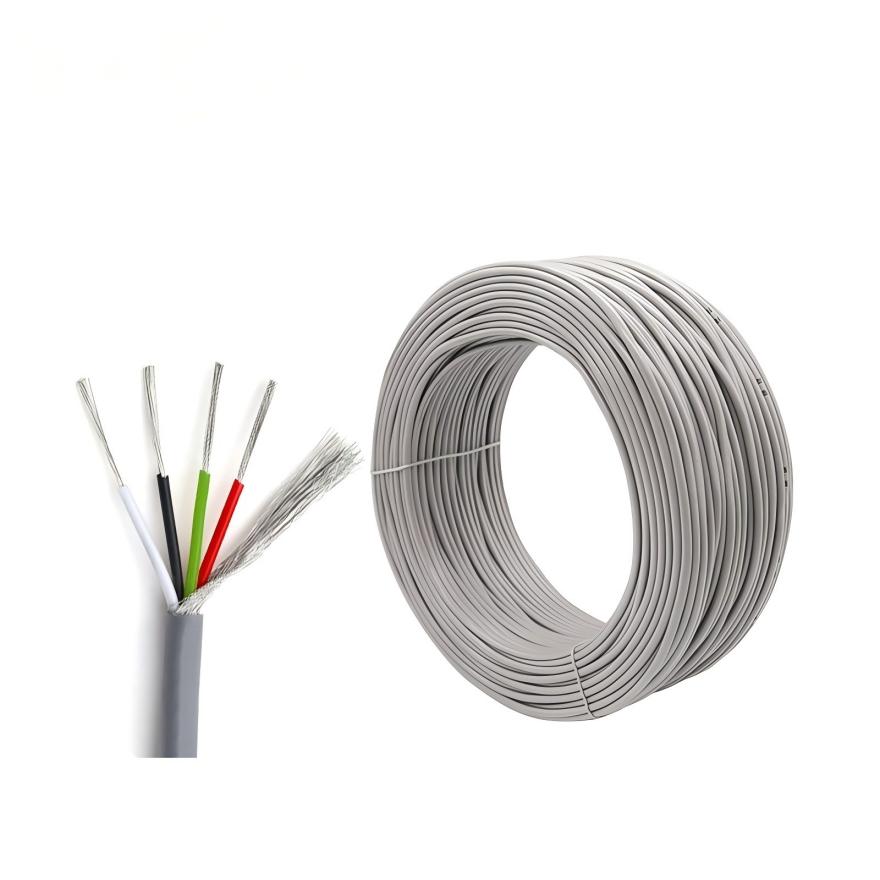

FLEXIBLE SENSOR CABLE ( 2 million times reliability tests for drag chain)
KHÔNG.	Mã sản phẩm	Số lõi và diện tích mặt cắt ngang	Đường kính ngoài gần đúng （mm)	Màu vỏ ngoài
KHÔNG.	Mã sản phẩm	(SỐ.Xm㎡)	Đường kính ngoài gần đúng （mm)	Màu vỏ ngoài
1	SEN-YY01.03.0008	3×0.08	2.0	Grey
2	SEN-YY01.02.0014	2×0,14	2.8	Grey
3	SEN-YY01.03.0014	3×0,14	2.8	Grey
4	SEN-YY01.04.0014	4×0,14	3.2	Grey
5	SEN-YY01.02.0020	2×0.20	3.2	Grey
6	SEN-YYO1.03.0020	3×0.20	3.4	Grey
7	SEN-YYO1.04.0020	4×0.20	3.6	Grey
số 8	SEN-YY01.02.0030	2×0.30	3.4	Grey
9	SEN-YY01.03.0030	3×0.30	3.6	Grey
10	SEN-YY01.04.0030	4×0.30	3.9	Grey

Có sẵn tùy chỉnh các mô hình đặc biệt theo yêu cầu, bao gồm cáp có diện tích mặt cắt dây dẫn khác nhau, vật liệu, tấm chắn, màu sắc và các thông số kỹ thuật khác cho vỏ bọc.

●When there is external electromagnetic interference, it is recommended to use shielded cables. ●When there is a requirement for water resistance, it is recommended to use water-resistant PUR cables. ●When there is a requirement for slag resistance, it is recommended to use slag-resistant PUR cables.
