● Special PVC sheath with excellent flexibility.
● Temperature range:
- For mobile installation: -5°C to +70°C.
- For fixed installation: -15°C to +70°C.
- ● Nominal voltage Uo/U: 300/500V.
- ● Testing voltage: 2000V.
- ● Insulation resistance: minimum 20 MOhmxkm.
- ● Minimum bending radius:
- For mobile installation: 7.5 times the cable diameter.
- For fixed installation: 6 times the cable diameter.
- ● AB RoHS ve Reach düzenlemeleriyle uyumludur.

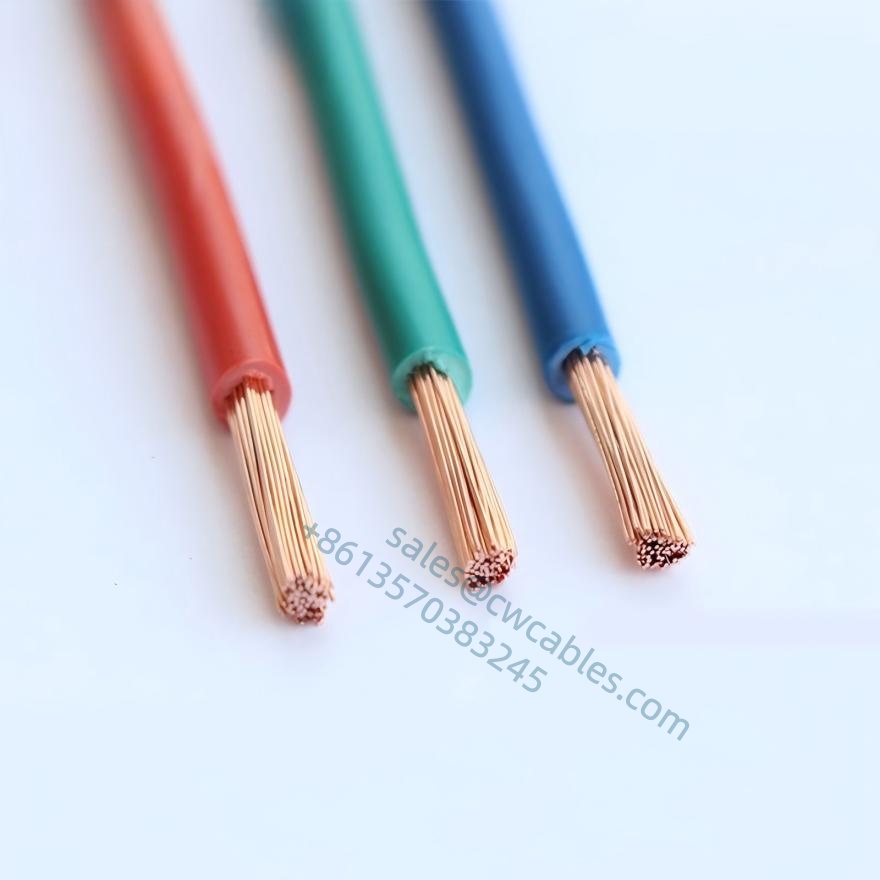

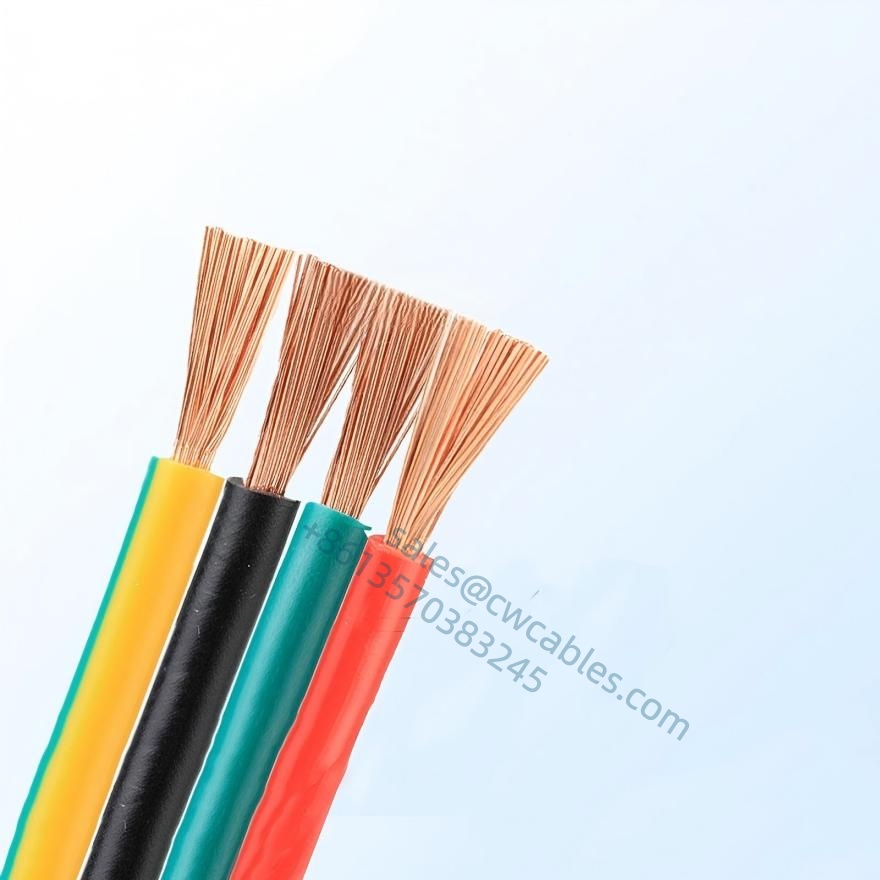

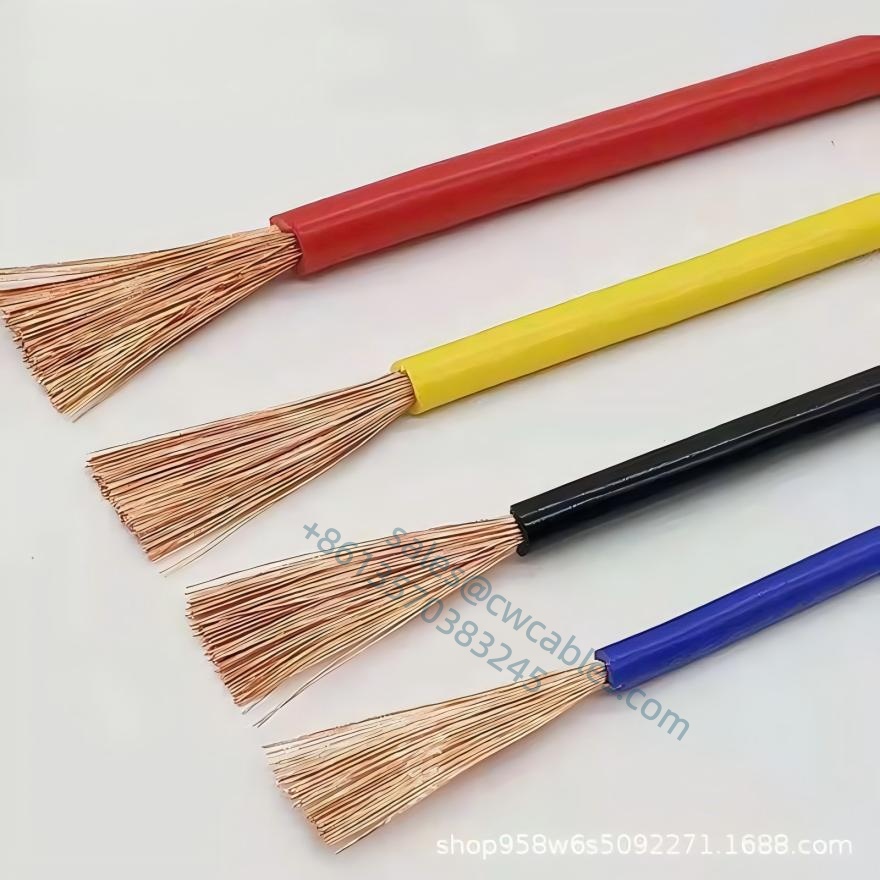

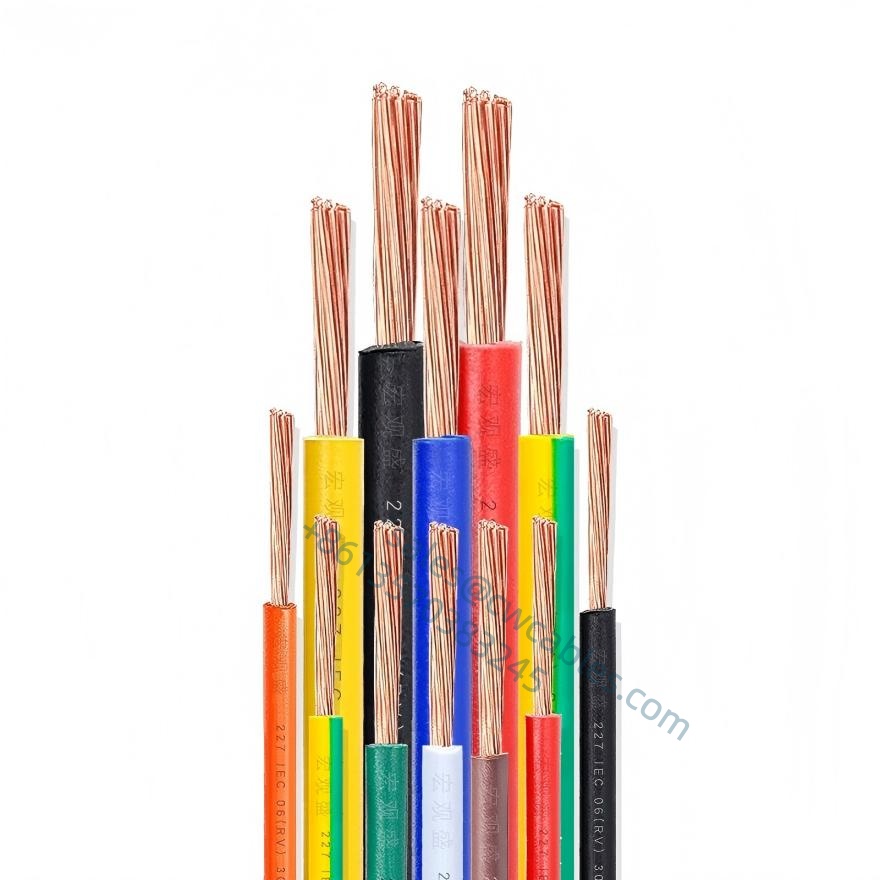

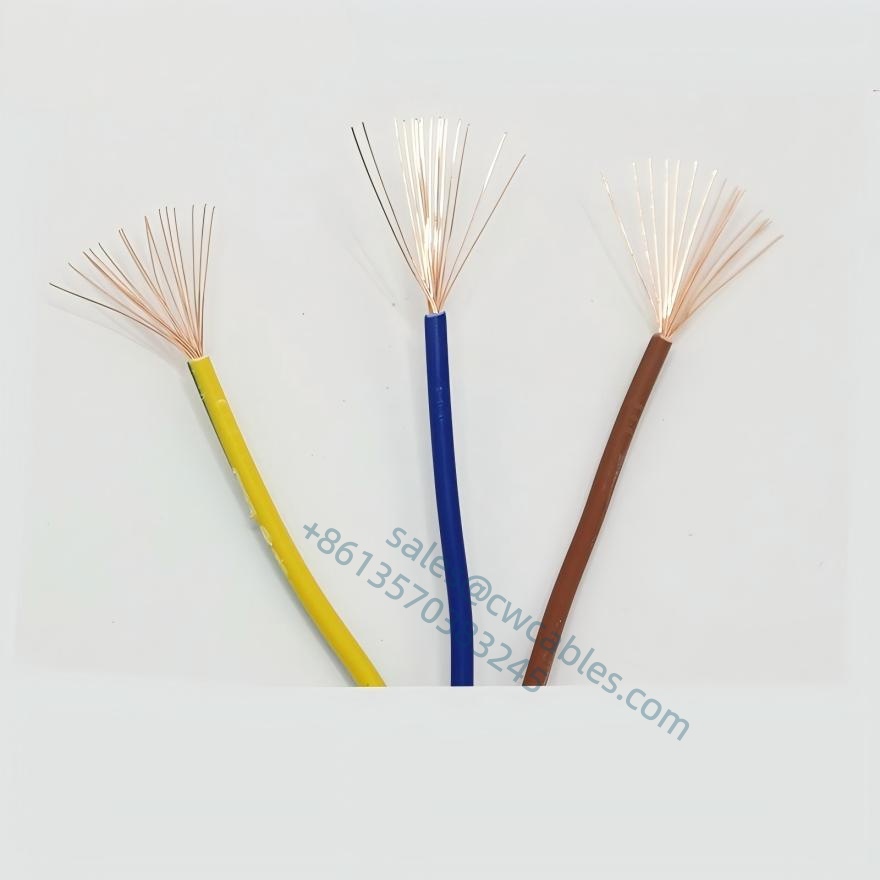

YY01 1.5 mm flex cable flexible wire Technical Parameter
|
Standart
|
UL20276 standardına uygun, ince tel çapı tasarımı
|
|||
|
Kondüktör
|
yüksek kaliteli kalaylı bakır telli bakır tel kullanır
|
|||
|
Yalıtım malzemesi
|
Modifiye PVC
|
|||
|
Çekirdek yapı
|
Küçük adımlı tek iplikçik
|
|||
|
Çekirdek tanıma
|
Below 0.5m㎡ is marked with colored core wires; 0.5m㎡ above, a yellow-green ground wire + black core wire with white numbers
|
|||
|
Dış kılıf
|
Modifiye PVC dostum
|
|||
|
Renk
|
siyah (diğer renkler özelleştirilebilir)
|
|||
|
Bükülme yarıçapı
|
Move in drag chain is more than 7.5 x d, non-tow chain is moved more than 6 x d,
fixed laying is more than 5 x d
|
|||
|
Movement speed:
|
fixed or low-speed movement, less than 0.3 m/s
|
|||
|
Travel distance
|
Fixedly laid, less than 30 meters, and the signal is attenuated if it is too long.
|
|||
|
Nominal voltaj
|
Uo/U 300/300 V
|
|||
|
Test voltajı
|
1500V
|
|||
|
Başvuru:
|
Suitable for various non-standard automated production equipment such as CNC machine tools, industrial robots, servo drives,
woodworking machinery, mask machines, manipulators, dispensing machines, laser equipment, stamping lines, logistics automation, ceramic production equipment, etc., which can withstand long-term acceleration, Deceleration, tensile and compressive stress, and high-speed periodic bending, and always maintain high stability. |
|||
| Y01 FLEXIBLE SINGLE CORE CABLE Parameter | ||||
| HAYIR. | Ürün Kodu | Çekirdek Sayısı ve kesit alanı | Yaklaşık dış çap (mm) | Dış kılıf rengi |
| (NO.Xm㎡) | ||||
| 1 | Y01.01.0030 | 0.3 | 1.2 | Black, brown, red, yellow, green, yellow-green, and blue, a total of seven colors. |
| 2 | Y01.01.0050 | 00,5 | 2.2 | |
| 3 | Y01.01.0075 | 00,75 | 2.4 | |
| 4 | Y01.01.0075 | 1 | 2.6 | |
| 5 | Y01.01.0150 | 1.5 | 3 | |
| 6 | Y01.01.0250 | 2.5 | 3.6 | |
| 7 | Y01.01.0400 | 4 | 4.2 | |
| 8 | Y01.01.0600 | 6 | 5 | |
| 9 | Y01.01.1000 | 10 | 6.5 | |
| 10 | Y01.01.1600 | 16 | 8 | |
