●The conductor is made up of ultra-fine copper wires (less than 0.1mm) twisted together in groups.
●The TRVV Towline Cable adopts a compacted structure, providing a relatively rigid feel compared to a wrapped structure.
●It has a strong load capacity, good rigidity, wear resistance, and moderate oil resistance.
●Under specified installation and usage conditions, it can have a service life of over 10 million cycles.
●It is highly suitable for high-speed bending motion in automation equipment such as large CNC machine tools and high-power laser cutting machines.
| L-YY1007 ULTRA HIGH FLEXIBLE DRAG CHAIN POWER CABLE (AMERICAN CORE WIRE) ( 10 million times reliability tests for drag chain) | ||||
| HAYIR. | Ürün Kodu | Çekirdek Sayısı ve kesit alanı | Yaklaşık dış çap (mm) | Dış kılıf rengi |
| (NO.Xm㎡) | ||||
| 1 | L-YY1007.02.0050 | 2×0,5 | 6.2 | Orange, Black |
| 2 | L-YY1007.04.0050 | 4G0.5 | 7.0 | Orange, Black |
| 3 | L-YY1007.04.0075 | 4G0.75 | 7.8 | Orange, Black |
| 4 | L-YY1007.04.0150 | 4G1.5 | 9.6 | Orange, Black |
| 5 | L-YY1007.04.0250 | 4G2.5 | 11.6 | Orange, Black |
| 6 | MC-YY3007.04.0050 | 4G0.5 | 6.3 | Siyah |
| 7 | MC-YY3007.06.2024 | 4G0.5+2×0.2 | 6.3 | Siyah |
| 8 | MC-YY3007.04.0075 | 4G0.75 | 6.3 | Siyah |
Technical Parameter Of Ultra High Flexible Drag Chain Power TRVV Towline Cable
● Special PVC sheath, with ultra-high flexibility
● Temperature range Mobile installation: -5°C to +70°C Fixed installation: -15°C to +80°C
● Nominal voltaj Uo/U: 300/500V
● Test voltajı: 2000V
● Yalıtım direnci: Minimum 20 MOhmxkm
● Minimum bükülme yarıçapı: Mobil kurulum: 6 x kablo çapı Sabit kurulum: 4 x kablo çapı
●AB RoHS ve Reach düzenlemeleriyle uyumludur.
● Alev geciktirici, IEC 60332-1-2, CEI 20-35, FT1, VW-1 ile uyumludur.

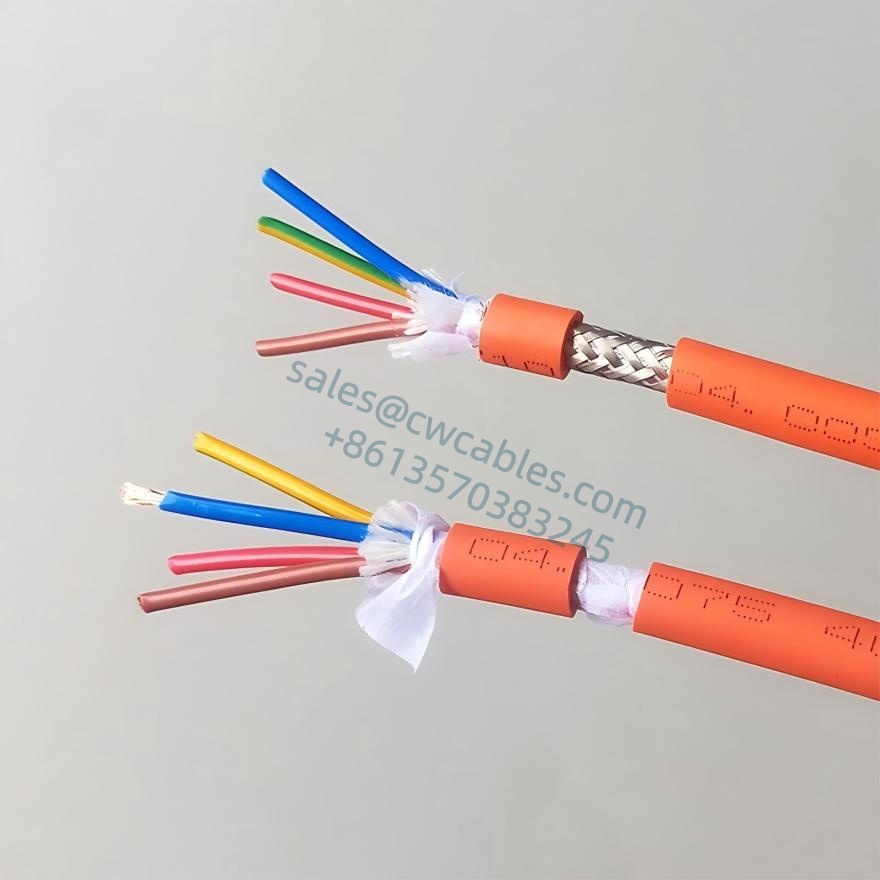

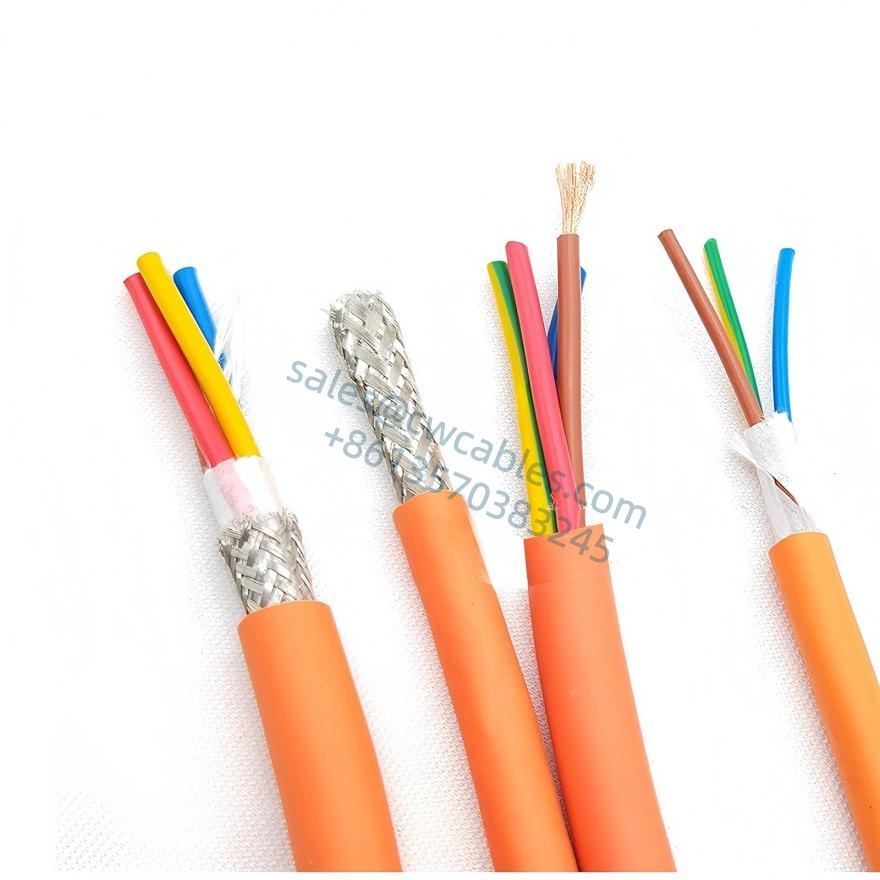

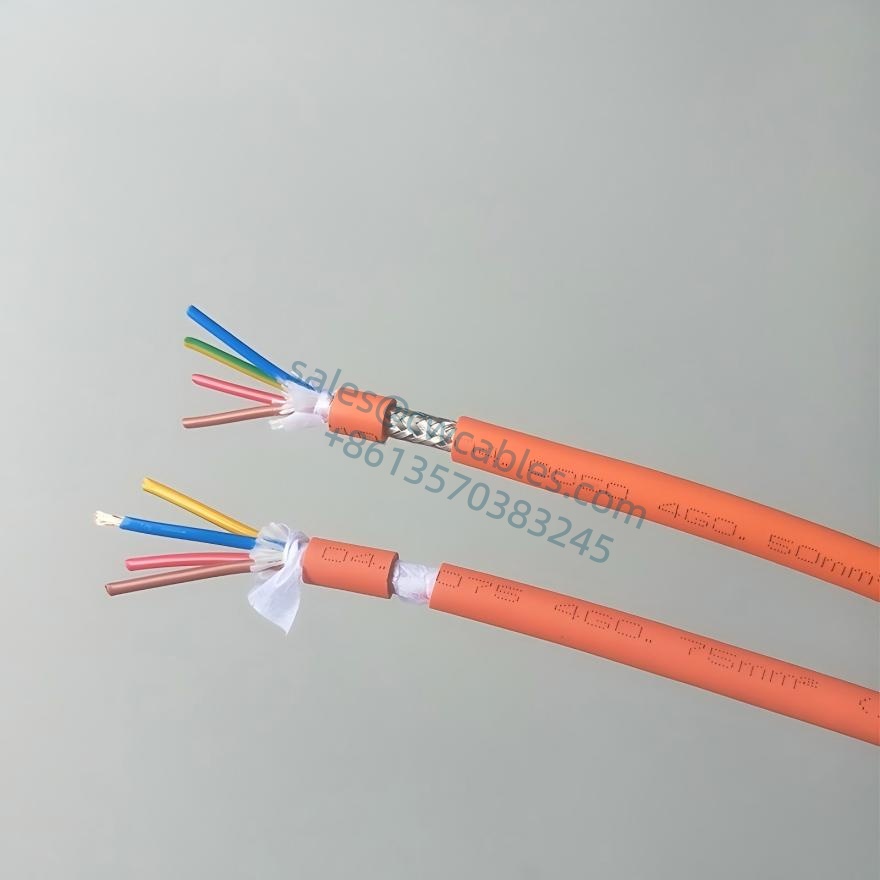

Ultra High Flexible Drag Chain Power TRVV Towline Cable Structure
Yüksek esnekliğe sahip çekme zinciri kablo test standartları
(Sürükleme zinciri için 10 milyon kez güvenilirlik testi)
