HY0IO-6 Twisted Pair IO Cables – 85% Shielding Rate for Stable Signal Transmission
UL20276 Compliant
Twisted Pair
Tinned Copper
Anti-Interference
Twisted Pair IO Cables Description
Кабели ввода-вывода HY0IO-6 витая пара are high-performance shielded cables designed for reliable signal transmission in industrial automation environments. The core wire is manufactured with modified PE material, while the sheath uses modified PVC material, enhancing stability, wear resistance, and anti-interference capabilities.
Ideal for terminal block wiring, IO module wiring, and various applications in machinery, automation production, control units, and consoles.

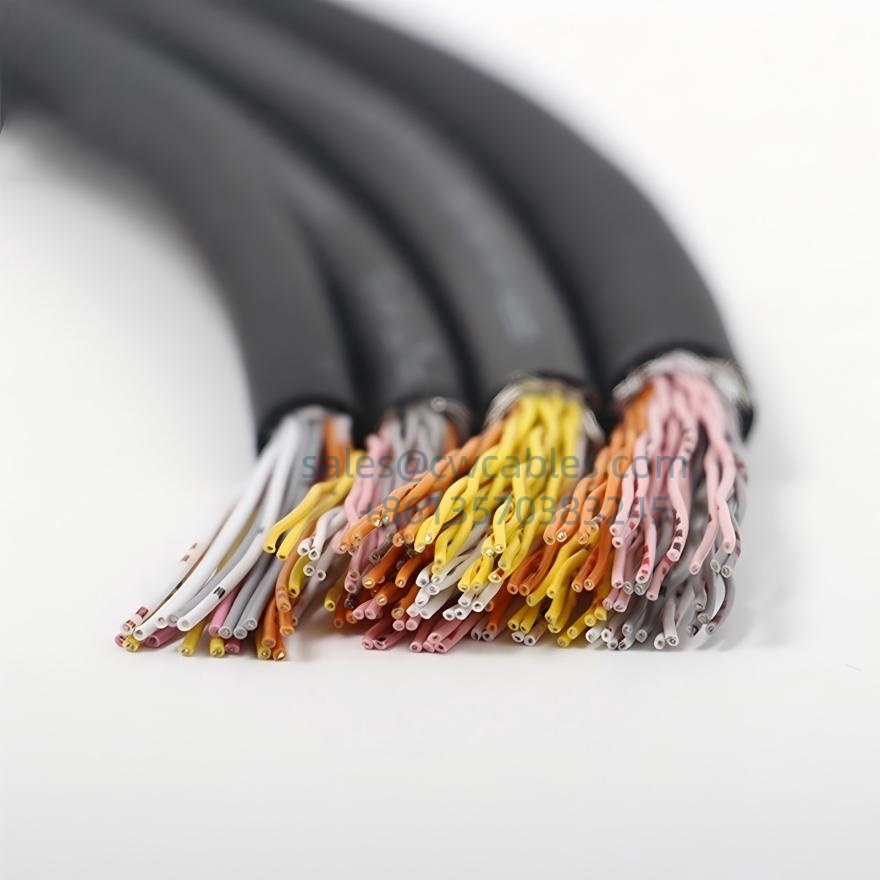

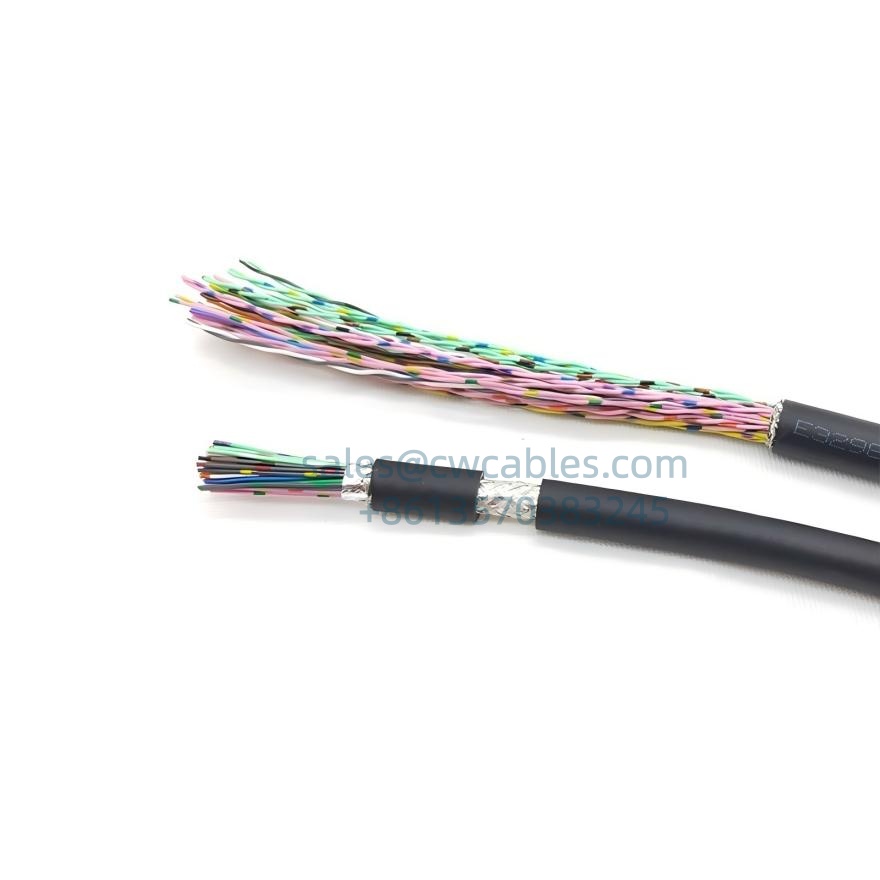

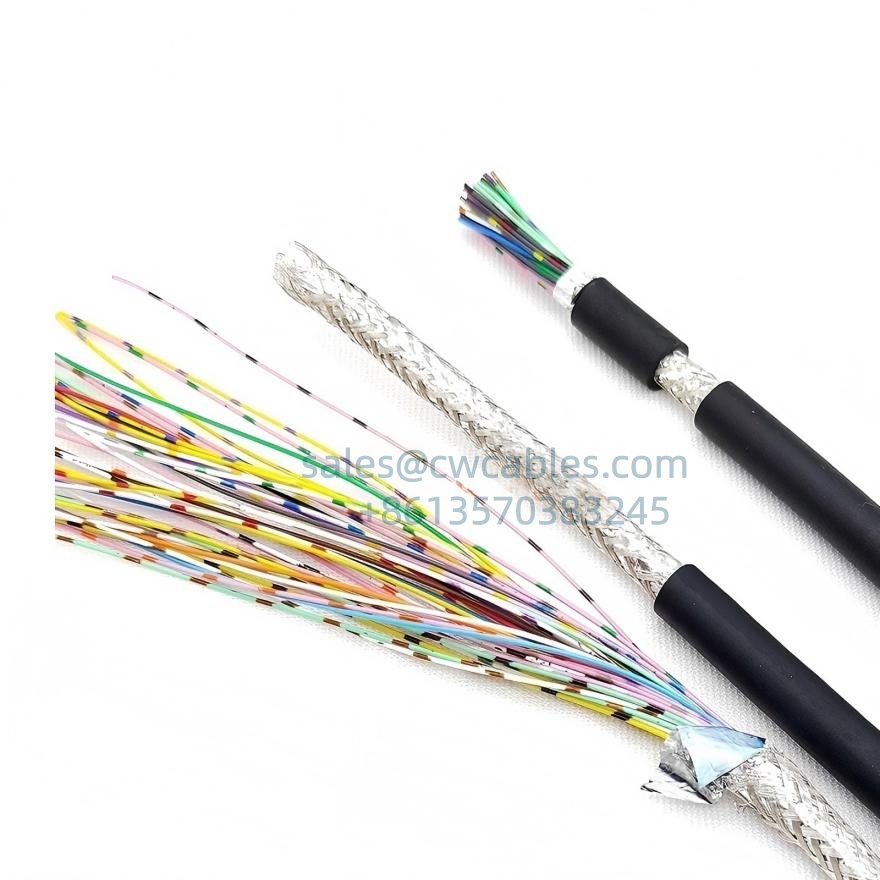

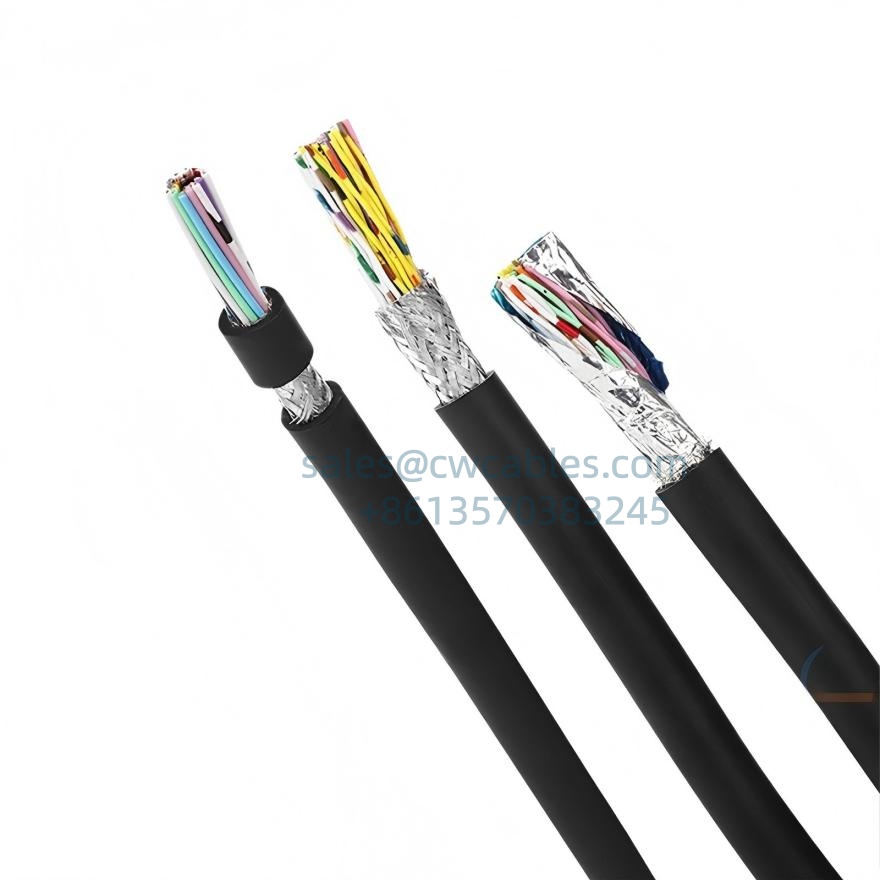

Twisted Pair IO Cables Gallery
Twisted Pair IO Cables – Key Features
✓ Modified PE Insulation – Enhances stability and signal integrity
✓ Modified PVC Sheath – Improves wear resistance and durability
✓ Tinned Soft Copper Conductor – Reduces oxidation and ensures long-term reliability
✓ Twisted Pair Construction – Prevents signal interference and attenuation between core wires
✓ Dual-Layer Shielding – Tinned copper braid + aluminum foil layer
✓ High Shielding Rate – Over 85% shielding coverage for superior EMI protection
✓ Stable Signal Transmission – Longer transmission distance with minimal interference
✓ UL20276 Compliant – Meets international safety and performance standards
Technical Parameters of Twisted Pair IO Cables
| Параметр | Спецификация |
|---|---|
| Стандарт | Соответствует стандарту UL20276, конструкция с тонким диаметром проволоки |
| Механические свойства | |
| Минимальный радиус изгиба (фиксированный) | 7.5 × cable outer diameter |
| Temperature Range | 20°C to 80°C |
| Маслостойкость | Обычный |
| Weather Resistance | Не устойчив к УФ, подходит для внутреннего использования |
| Электротехническое строительство | |
| Дирижер | Multiple strands of finely stranded oxygen-free copper wire (tinned) |
| Изоляционный материал | Core wire: Modified PE / Outer sheath: Modified PVC |
| Core Stranding | Извращенная пара и композитный общий удар |
| Core Wire Color | Main color with square dot marking |
| Shielding Density | Tinned copper wire braid, shielding rate ≥85% |
| Outer Jacket Color | Black, Gray (custom colors: 1000m MOQ) |
| Приложение | |
| Приложения | Terminal block wiring, IO module wiring, machinery/automation production/control unit/console |
IO Control Cable – Construction Details
1. Tinned copper conductor, thin copper wire – meets UL20276 requirements
2. HDPE insulation (modified PE) for excellent dielectric properties
3. Цветная идентификация жил провода для легкой установки
4. Wire cores stranded in layers with optimal pitch for flexibility
5. Improved tinned copper wire braided shield + aluminum foil layer
6. Минимальное экранирующее покрытие: 85%
7. Special PVC outer sheath – Black (RAL 9005) matte finish
8. Gray (RAL 7001) available upon request (1000m MOQ)
Twisted Pair IO Cables – Model Specifications
Complete list of HY0IO-6 series twisted pair IO cables. Минимальный заказ: 1 метр for standard PVC sheath. PUR outer sheath available at 400m MOQ.
| Нет. | Код продукта | Cores × mm² (Structure) | Прибл. Внешний диаметр (мм) | Цвет оболочки | Сопротивление постоянному току при 20°C (Ом/км) |
|---|---|---|---|---|---|
| 1 | Yo-yy06.50.0008 | 25×2×0.08 (25 twisted pairs) | 9.2 | Черный | 239 |
| 2 | Yo-yy06.40.0008 | 20×2×0.08 (20 twisted pairs) | 8.4 | Черный | 239 |
| 3 | Йо и 02.50.0008 | 50×0.08 (50 cores) | 8.4 | Черный | 239 |
| 4 | Йо и 02,40.0008 | 40×0.08 (40 cores) | 7,5 | Черный | 239 |
Дополнительные доступные конфигурации
По запросу доступны индивидуальные конфигурации, в том числе:
- Twisted pair series: 2×2×0.08, 4×2×0.08, 6×2×0.08, 8×2×0.08, 10×2×0.08, 12×2×0.08, 16×2×0.08, 20×2×0.08, 25×2×0.08
- Non-twisted multi-core series: 2×0.08, 3×0.08, 4×0.08, 5×0.08, 6×0.08, 7×0.08, 8×0.08, 10×0.08, 12×0.08, 16×0.08, 20×0.08, 25×0.08, 30×0.08, 32×0.08, 36×0.08, 40×0.08, 44×0.08, 50×0.08
- Larger gauge options: 0.12mm², 0.2mm², 0.3mm², 0.5mm² available
Technical Specifications – Detailed
| Параметр | Value / Description |
|---|---|
| Conductor Material | Tinned soft copper wire, multiple strands |
| Изоляционный материал | Modified PE (HDPE) |
| Sheath Material | Модифицированный ПВХ |
| Тип экранирования | Tinned copper wire braid + Aluminum foil |
| Shielding Rate | ≥85% |
| Номинальное напряжение | Уо/У 300/300 В |
| Испытательное напряжение | 1500 В |
| Conductor DC Resistance (20°C) | 239 Ω/km (for 0.08mm²) |
| Сопротивление изоляции | ≥20 MΩ·km |
| Температурный диапазон (фиксированный) | -20°C to +80°C |
| Температурный диапазон (мобильный) | +5°C to +70°C |
| Flammability Rating | VW-1 / FT1 |
- Минимальный заказ: 1 метр для стандартной оболочки из ПВХ.
- Внешняя оболочка из полиуретана: минимальный заказ 400 метров.
- Custom colors (non-black/gray): MOQ 1000 meters
- Custom lengths and packaging available upon request
