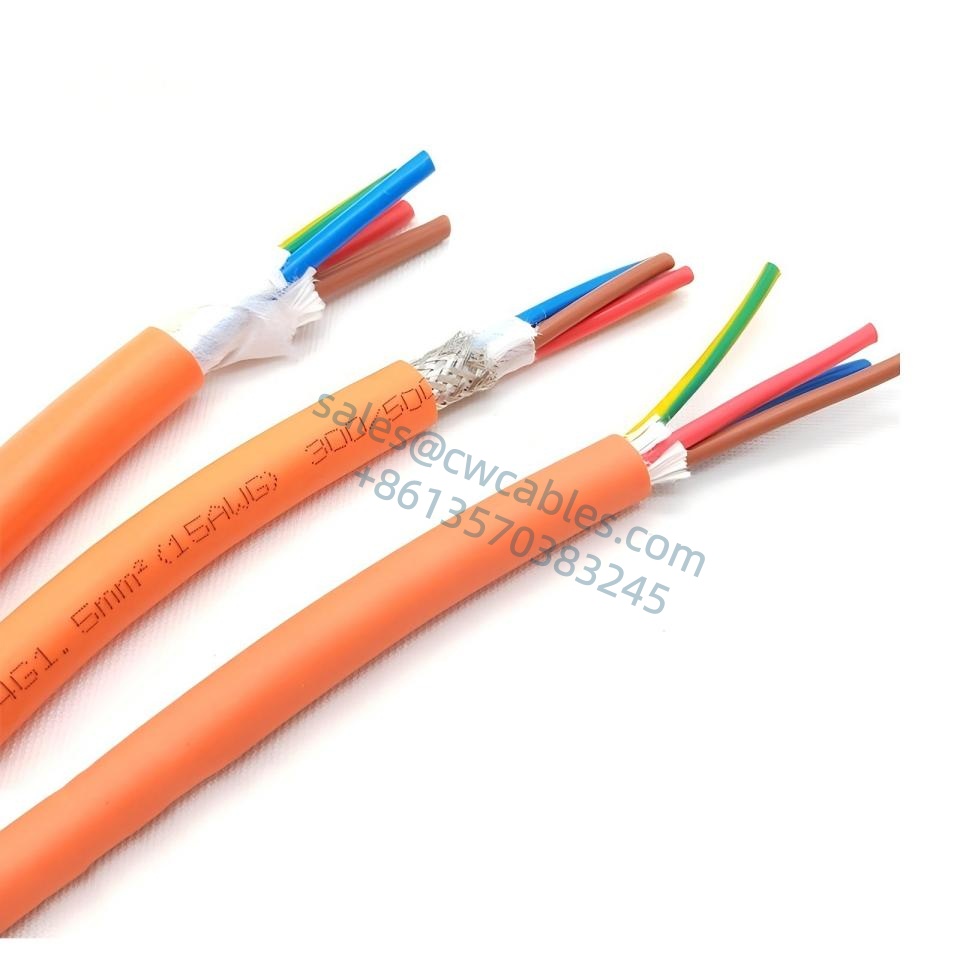

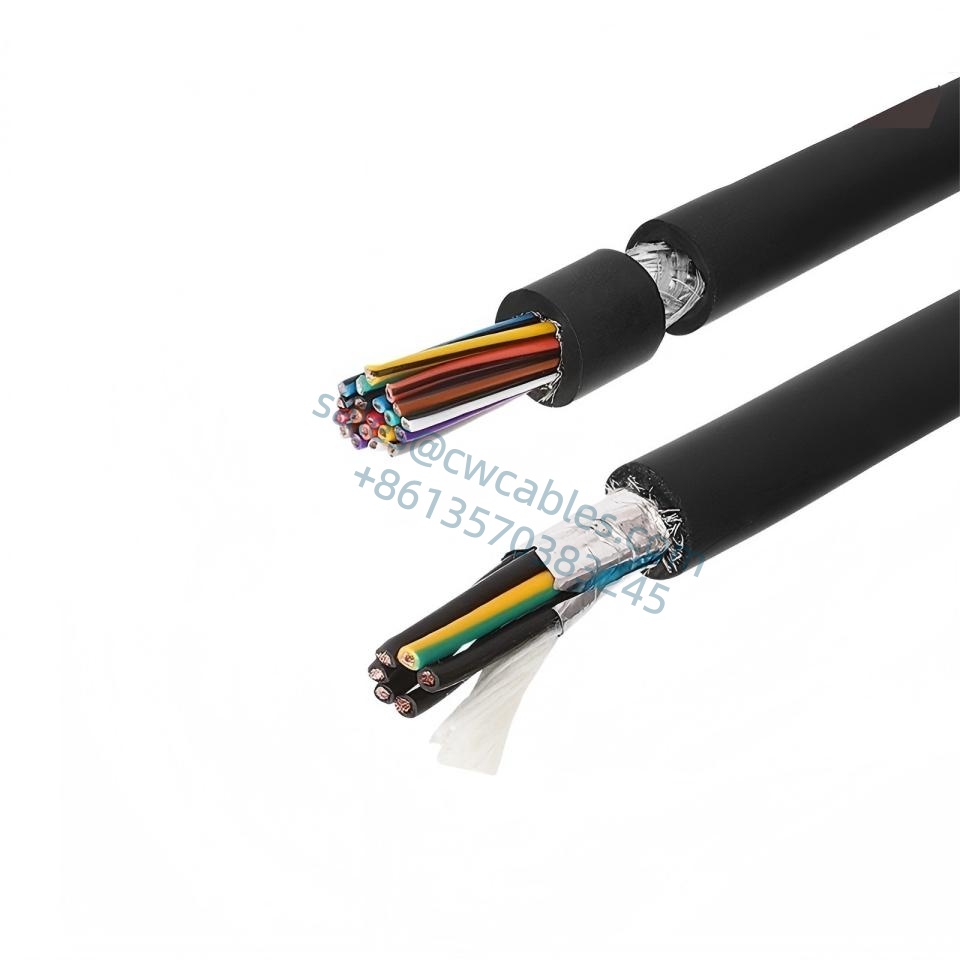

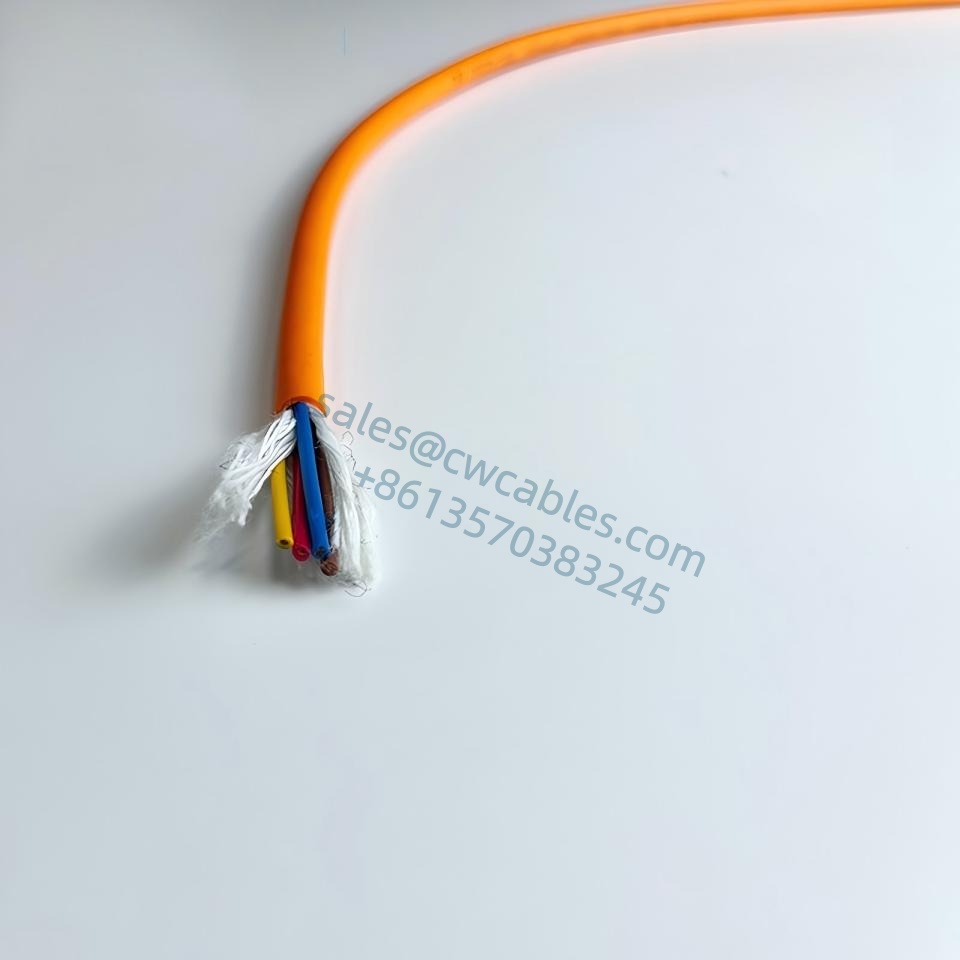

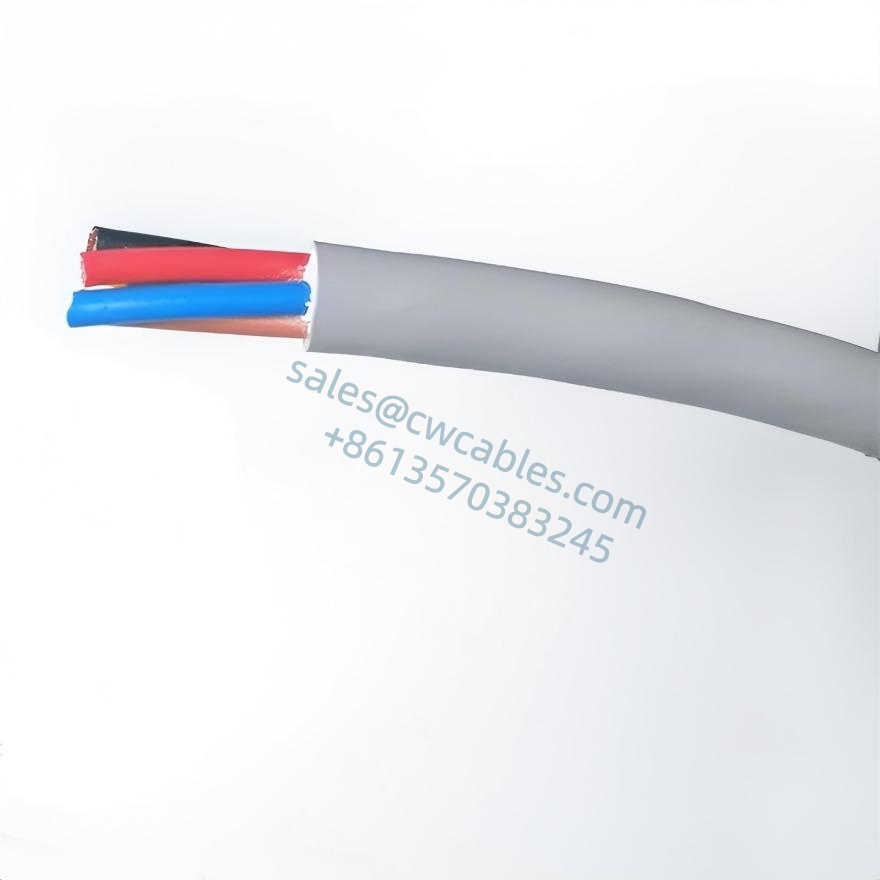

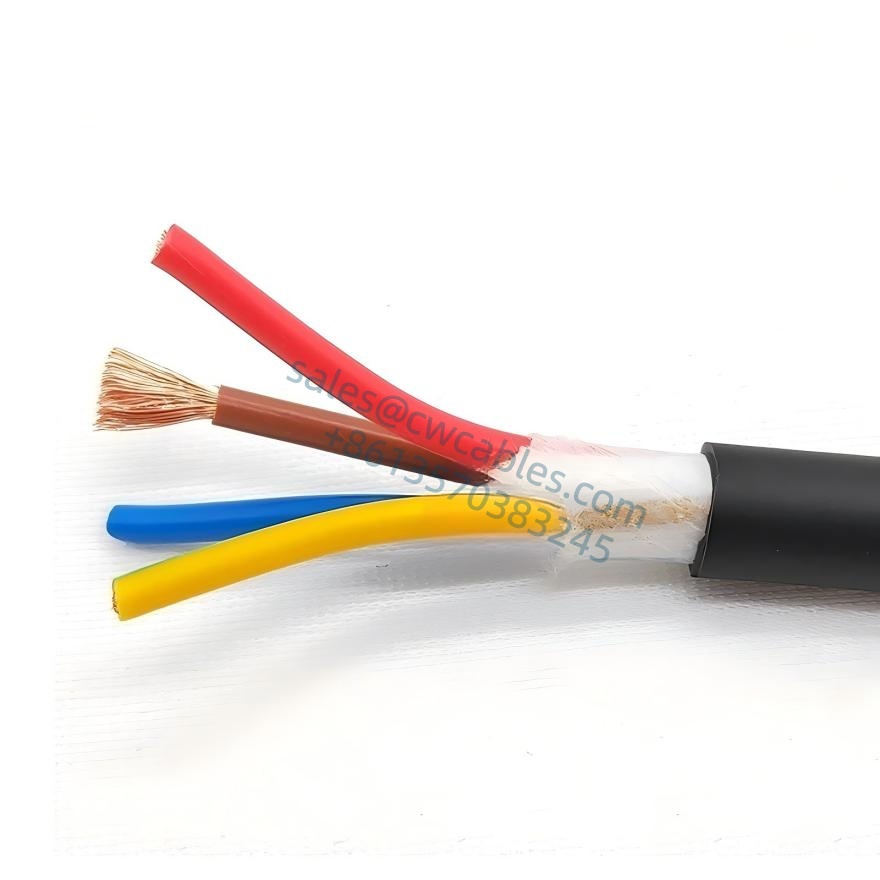

Flexible servo power cable applied to servo motors and drive systems from leading manufacturers such as: Inovance, Leadshine, Xinje, HC Servo, Invt, Kinco, Yaskawa, Mitsubishi, Panasonic, Fuji Electric, Siemens, and Schneider Electric.
●Special PVC sheath, with good flexibility.
●Temperature range:Mobile installation: -5°C to +70°C Fixed installation: -15°C to +70°C
●Nominal voltage Uo/U: 300/500V
● Тестовое напряжение: 2000В
●Insulation resistance: Minimum 20 MOhmxkm Minimum bending radius: Mobile installation: 7.5 x cable diameter Fixed installation: 6 x cable diameter
●Соответствует требованиям ЕС RoHS и Reach.
Servo motor power cable Features:
●Bare copper conductor, fine copper wire, in accordance with DIN VDE 0295 Class 6 and IEC 60228 Class 6.
●Специальная изоляция из ПВХ.
●Color-coded core wire identification. Optimal pitch twisted layer for the wire cores. With yellow-green grounding wire (3 cores and above).
●Специальная внешняя оболочка из ПВХ.
●Black color (RAL 9005), matte finish.
| Продукт | Элемент | Модель | Спецификация | ИЗ | Цвет | Отметка |
| Flexible servo power cable | 1 | ГГ07.02.0050 | 2*0.5mm² | 5,6 | Черный | Standard core wire colors: blue, brown, red, yellow/green |
| 2 | ГГ07.04.0050 | 4*0.5mm² | 6,5 | Черный | ||
| 3 | ГГ07.04.0075 | 4*0.75mm² | 7.2 | Черный | ||
| 4 | ГГ07.04.0100 | 4*1.0mm² | 7,8 | Черный | ||
| 5 | ГГ07.04.0150 | 4*1.5mm² | 9 | Черный | ||
| 6 | ГГ07.04.0250 | 4*2.5mm² | 11 | Черный | ||
| 7 | Л-ГГ07.02.0050 | 2*0.5mm² | 5,6 | Черный | UL Стандартный ядро Цвета провода: черный, белый, красный, желтый/зеленый | |
| 8 | Л-ГГ07.04.0050 | 4*0.5mm² | 6,5 | Черный | ||
| 9 | Л-ГГ07.04.0075 | 4*0.75mm² | 7.2 | Черный | ||
| 10 | ГГ07.04.0130 | 4*1.3mm² | 8.3 | Черный | ||
| 11 | ГГ07.04.0200 | 4*2.0mm² | 10 | Черный | ||
| 12 | MC-YY07.04.0050 | 4*0.5mm² | 6.3 | Черный | Gecko head power cord, UL printed text, core wire colors: black, white, red, yellow/green. | |
| 13 | MC-ГГ07.06.2024 | 4*0.5+2*0.2mm² | 6.3 | Черный |
