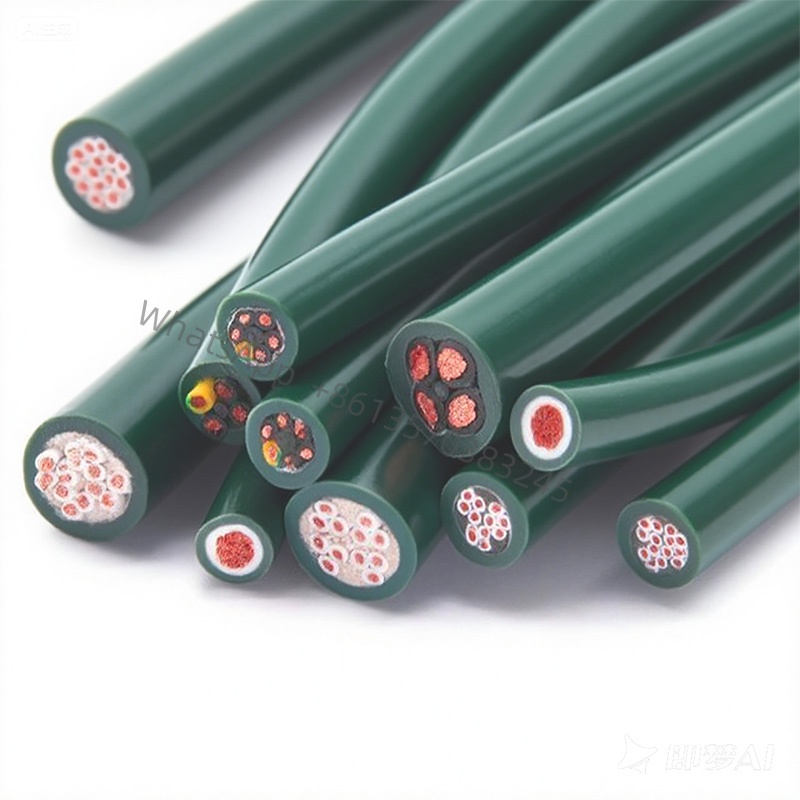

TY100.01 ULTRA HIGH FLEXIBLE CONTROL CABLE
(20 million times reliability tests for drag chain)
Overhead application travel distance is less than 100 meters
技術データ
Temperature Range:
Moving inside the drag chain: +5°C to 80°C
Moving outside the drag chain: -5°C to 80°C
Bending Radius:
Moving inside the drag chain: Minimum 7.5xd
Moving outside the drag chain: Minimum 6xd
Drag Chain Life:
Factors affecting the service life of cables within the drag chain:
Temperature, Bending radius, Travel distance, Speed
TUV and Stable Drag Chain Testing Standards:
Temperature range: +15°C to 25°C
Bending radius: 7.5xd
Travel distance: 0.9 meters
Speed: 90 cycles/minute
The drag chain’s life can reach: 20 million cycle times
Maximum Speed and Acceleration:
Overhead: 8 m/s Sliding: 5 m/s Acceleration: 80 m/s²
Travel Distance:
For overhead applications, travel distance is less than 100 meters
Standard Voltage: 300/600V
Test Voltage: 3000V
応用
specially suitable for mechanical equipment, machine tools, and other applications that require continuous high-intensity and high-speed drag chain bending. Particularly ideal for use in high-speed, long-distance drag chains. The TY100.02 series drag chain cables have been widely used in indoor drag chain systems such as warehouse equipment, processing equipment, packaging equipment, indoor cranes, glass equipment, as well as in the packaging and logistics industries.

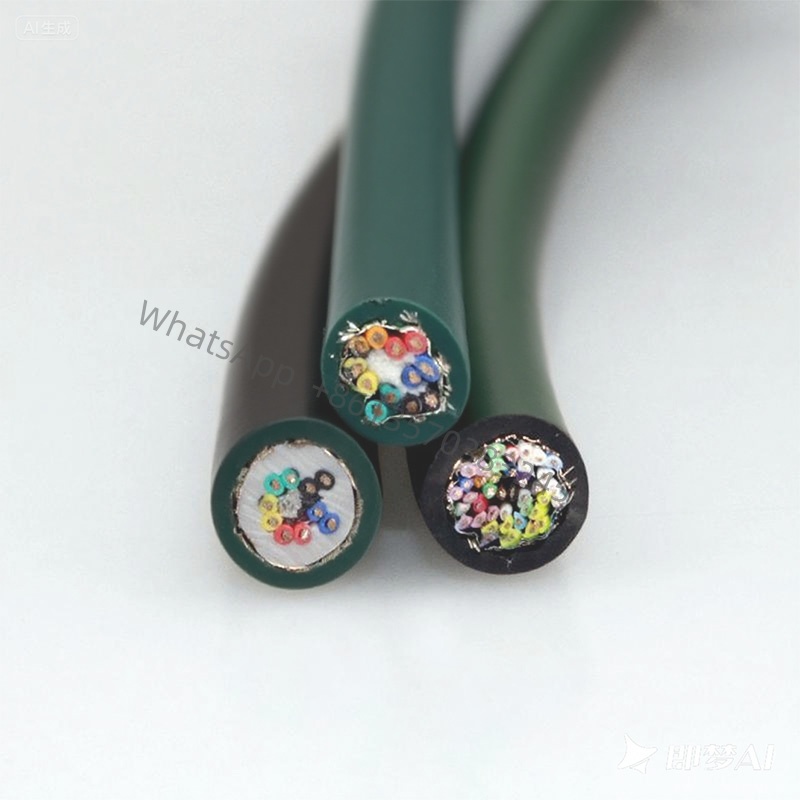

ケーブル構造

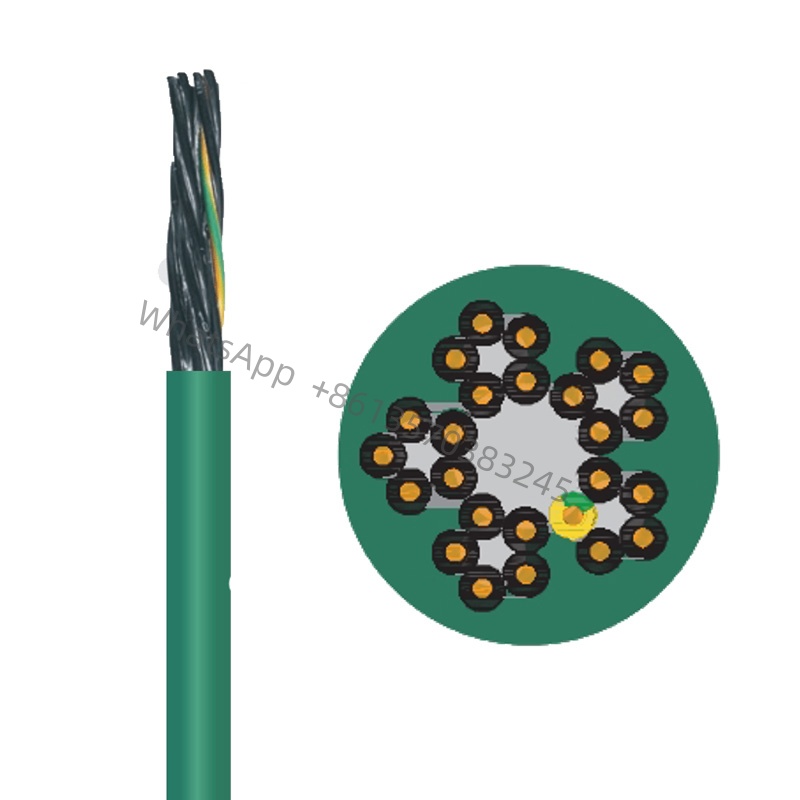

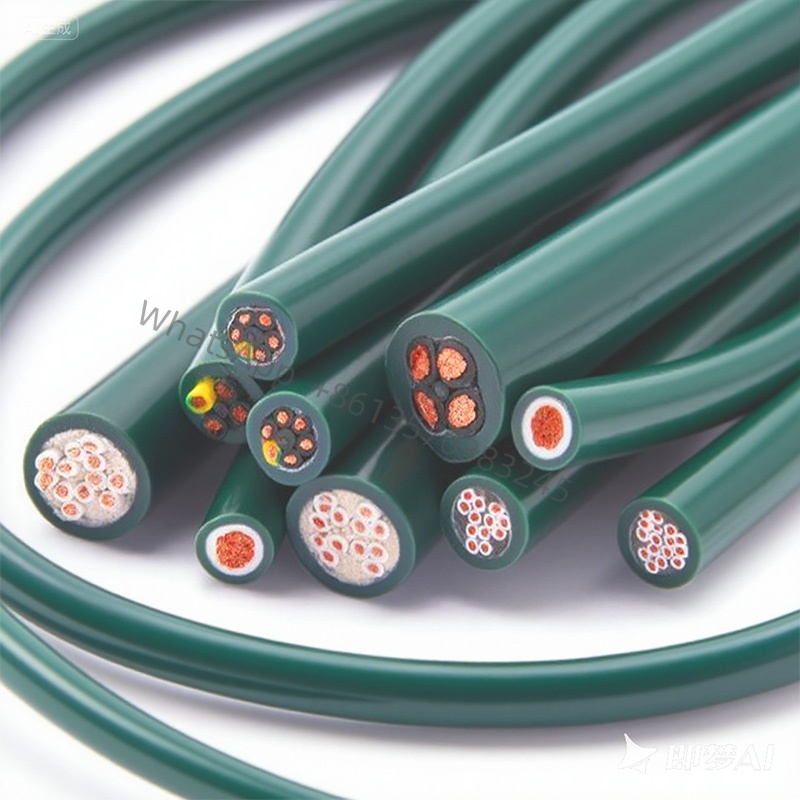

Product Structure:
Complies with UL758 STYLE 2570
Conductor:
High bending strength fine bare copper multi-stranded wire, complies with DIN VDE 0295 Class 5 and IEC 60228 Class 5
Insulation:
High mechanical performance TPE polymer insulation
Core Wire Color:
Cross-sectional area < 0.5 mm²: Color-coded core wires, colors comply with DIN 47100 standard
Cross-sectional area ≥ 0.5 mm²: Yellow-green ground wire with black core wires marked with white numbers
Stranding Method:
Number of cores < 12: Short pitch stranded together in one layer
Number of cores ≥12: Grouped and twisted twice to enhance torsional strength
Outer Jacket:
Modified high-strength PVC polymer
| Item | 製品コード | Number of Cores and Cross-Sectional Area | Approximate Outer Diameter | 色 | Product Number | MOQ |
| 1 | TY100.01.03.0025 | 3×0.25 | 4.50 | Dark Green | C-401 | |
| 2 | TY100.01.04.0025 | 4×0.25 | 5.00 | Dark Green | C-402 | |
| 3 | TY100.01.07.0025 | 7×0.25 | 6.00 | Dark Green | C-405 | |
| 4 | TY100.01.12.0025 | 12×0.25 | 8.50 | Dark Green | C-409 | |
| 5 | TY100.01.36.0025 | 36×0.25 | 13.50 | Dark Green | C-417 | ※ |
| 6 | TY100.01.02.0034 | 2×0.34 | 4.50 | Dark Green | C-419 | |
| 7 | TY100.01.05.0034 | 5×0.34 | 5.60 | Dark Green | C-422 | |
| 8 | TY100.01.12.0034 | 12×0.34 | 9.20 | Dark Green | C-428 | |
| 9 | TY100.01.18.0034 | 18×0.34 | 11.00 | Dark Green | C-431 | ※ |
| 10 | TY100.01.25.0034 | 25×0.34 | 12.30 | Dark Green | C-434 | ※ |
| 11 | TY100.01.02.0050 | 2×0.5 | 5.50 | Dark Green | C-438 | |
| 12 | TY100.01.03.0050 | 3G0.5 | 5.80 | Dark Green | C-439 | |
| 13 | TY100.01.04.0050 | 4G0.5 | 6.20 | Dark Green | C-440 | |
| 14 | TY100.01.05.0050 | 5G0.5 | 6.80 | Dark Green | C-441 | |
| 15 | TY100.01.07.0050 | 7G0.5 | 8.00 | Dark Green | C-443 | |
| 16 | TY100.01.12.0050 | 12G0.5 | 10.80 | Dark Green | C-447 | ※ |
| 17 | TY100.01.18.0050 | 18G0.5 | 13.00 | Dark Green | C-450 | ※ |
| 18 | TY100.01.25.0050 | 25G0.5 | 15.00 | Dark Green | C-453 | ※ |
| 19 | TY100.01.30.0050 | 30G0.5 | 16.50 | Dark Green | C-454 | ※ |
| 20 | TY100.01.03.0075 | 3G0.75 | 6.20 | Dark Green | C-458 | |
| 21 | TY100.01.04.0075 | 4G0.75 | 6.80 | Dark Green | C-459 | |
| 22 | TY100.01.05.0075 | 5G0.75 | 7.20 | Dark Green | C-460 | |
| 23 | TY100.01.07.0075 | 7G0.75 | 8.60 | Dark Green | C-462 | |
| 24 | TY100.01.12.0075 | 12G0.75 | 12.00 | Dark Green | C-466 | ※ |
| 25 | TY100.01.18.0075 | 18G0.75 | 14.80 | Dark Green | C-469 | ※ |
| 26 | TY100.01.25.0075 | 25G0.75 | 16.80 | Dark Green | C-472 | ※ |
| 27 | TY100.01.36.0075 | 36G0.75 | 20.20 | Dark Green | C-474 | ※ |
| 28 | TY100.01.42.0075 | 42G0.75 | 22.20 | Dark Green | C-475 | ※ |
| Item | 製品コード | Number of Cores and Cross-Sectional Area | Approximate Outer Diameter | 色 | Product Number | MOQ |
| 29 | TY100.01.02.0100 | 2×1.0 | 6.00 | Dark Green | C-476 | |
| 30 | TY100.01.03.0100 | 3G1.0 | 6.30 | Dark Green | C-477 | |
| 31 | TY100.01.04.0100 | 4G1.0 | 6.90 | Dark Green | C-478 | |
| 32 | TY100.01.05.0100 | 5G1.0 | 7.60 | Dark Green | C-479 | |
| 33 | TY100.01.07.0100 | 7G1.0 | 9.20 | Dark Green | C-481 | |
| 34 | TY100.01.12.0100 | 12G1.0 | 12.80 | Dark Green | C-485 | ※ |
| 35 | TY100.01.18.0100 | 18G1.0 | 16.00 | Dark Green | C-488 | ※ |
| 36 | TY100.01.25.0100 | 25G1.0 | 18.20 | Dark Green | C-491 | ※ |
| 37 | TY100.01.03.0150 | 3G1.5 | 7.20 | Dark Green | C-496 | |
| 38 | TY100.01.04.0150 | 4G1.5 | 7.80 | Dark Green | C-497 | |
| 39 | TY100.01.05.0150 | 5G1.5 | 8.50 | Dark Green | C-498 | |
| 40 | TY100.01.07.0150 | 7G1.5 | 10.20 | Dark Green | C-500 | ※ |
| 41 | TY100.01.12.0150 | 12G1.5 | 14.80 | Dark Green | C-504 | ※ |
| 42 | TY100.01.18.0150 | 18G1.5 | 18.50 | Dark Green | C-507 | ※ |
| 43 | TY100.01.25.0150 | 25G1.5 | 20.50 | Dark Green | C-510 | ※ |
| 44 | TY100.01.36.0150 | 36G1.5 | 25.00 | Dark Green | C-512 | ※ |
| 45 | TY100.01.04.0250 | 4G2.5 | 9.20 | Dark Green | C-516 | |
| 46 | TY100.01.05.0250 | 5G2.5 | 10.20 | Dark Green | C-517 | ※ |
| 47 | TY100.01.07.0250 | 7G2.5 | 12.20 | Dark Green | C-518 | ※ |
| 48 | TY100.01.12.0250 | 12G2.5 | 18.00 | Dark Green | C-520 | ※ |
| 49 | TY100.01.18.0250 | 18G2.5 | 22.60 | Dark Green | C-523 | ※ |
| 50 | TY100.01.25.0250 | 25G2.5 | 25.50 | Dark Green | C-526 | ※ |
Notes
1.G = With yellow-green ground wire X = Without yellow-green ground wire
2.American Wire Gauge (AWG) sizes are approximate; actual cross-sectional area prevails
3.For wire with an outer diameter greater than 10mm, a minimum order of 10 meters is required for the specified ※ items, and delivery will be made as needed
