This cable carrier power cables used for long-term frequent reciprocating and bending movements under the drag chain system has basic properties of high flexibility and bending resistance. It is mainly installed and applied in mechanical equipment or systems with drag chains or similar moving and bending components under dry or humid indoor and outdoor conditions. It is widely used in various applications such as CNC machine tools, woodworking machinery, glass machinery, engraving machines, cutting machines, lifting drag chain systems, automated warehouses, etc., providing power, control or data signal connections for equipment under frequent moving and bending.
cable carrier power cables Parameter
| YP506 HIGH FLEXIBLE DRAG CHAIN DATA PUR CABLE ( 5 million times reliability tests for drag chain)) | ||||
| いいえ。 | 製品コード | コア数と断面積 | おおよその外径（mm） | 外被シース色 |
| (NO.Xm㎡) | ||||
| 1 | YY507.02.0050 | 2×0.5 | 5.8 | Black/Orange |
| 2 | YY507.02.0051 | 3G0.5 | 6.2 | 黒 |
| 3 | YY507.02.0052 | 4G0.5 | 6.8 | Black/Orange |
| 4 | YY507.02.0053 | 2×0.75 | 6.2 | 黒 |
| 5 | YY507.03.0075 | 3G0.75 | 6.6 | 黒 |
| 6 | YY507.03.0076 | 4G0.75 | 7.2 | Black/Orange |
| 7 | YY507.03.0077 | 4G0.75+2×0.3 | 8.0 | Black/Orange |
| 8 | YY507.03.0078 | 2×1.0 | 6.6 | 黒 |
| 9 | YY507.03.0079 | 3G1.0 | 7.0 | 黒 |
| 10 | YY507.03.0080 | 4G1.0 | 7.8 | Black/Orange |
| 11 | YY507.03.0081 | 2×1.5 | 7.8 | 黒 |
| 12 | YY507.03.0082 | 3G1.5 | 8.2 | 黒 |
| 13 | YY507.03.0083 | 4G1.5 | 8.8 | Black/Orange |
| 14 | YY507.03.0084 | 3×1.5+1G1.0 | 8.8 | 黒 |
| 15 | YY507.03.0085 | 4G1.5+2×0.5 | 10.5 | Black/Orange |
| 16 | YY507.03.0086 | 2×2.5 | 9.2 | 黒 |
| 17 | YY507.03.0087 | 3G2.5 | 9.8 | 黒 |
| 18 | YY507.03.0088 | 4G2.5 | 11.0 | Black/Orange |
| 19 | YY507.03.0089 | 3×2.5+1G1.5 | 11.0 | Black/Orange |
| 20 | YY507.02.0400 | 2×4.0 | 11.2 | 黒 |
| 21 | YY507.03.0400 | 3G4.0 | 11.8 | 黒 |
| 22 | YY507.04.0400 | 4G4.0 | 13.0 | Black/Orange |
| 23 | YY507.04.0600 | 4G6.0 | 14.5 | Black/Orange |
| 24 | YY507.04.1000 | 4G10.0 | 19.5 | Black/Orange |
| 25 | YY507.04.1600 | 4G16.0 | 23.0 | Black/Orange |
cable carrier power cables Technical data
●Special PVC sheath with high flexibility
Temperature range: Mobile installation -5°C to +70°C Fixed installation -15°C to +80°C
●Nominal voltage Uo/U 300/500V
●Test voltage 2000V
●Insulation resistance: Minimum 20 MOhmxkm
●Minimum bending radius: Mobile installation 7.5x cable diameter Fixed installation 6x cable diameter
●Compliant with EU RoHS and Reach regulations

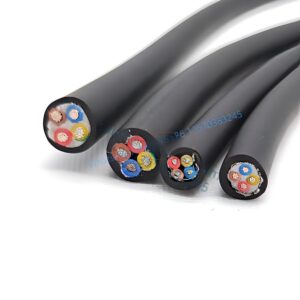

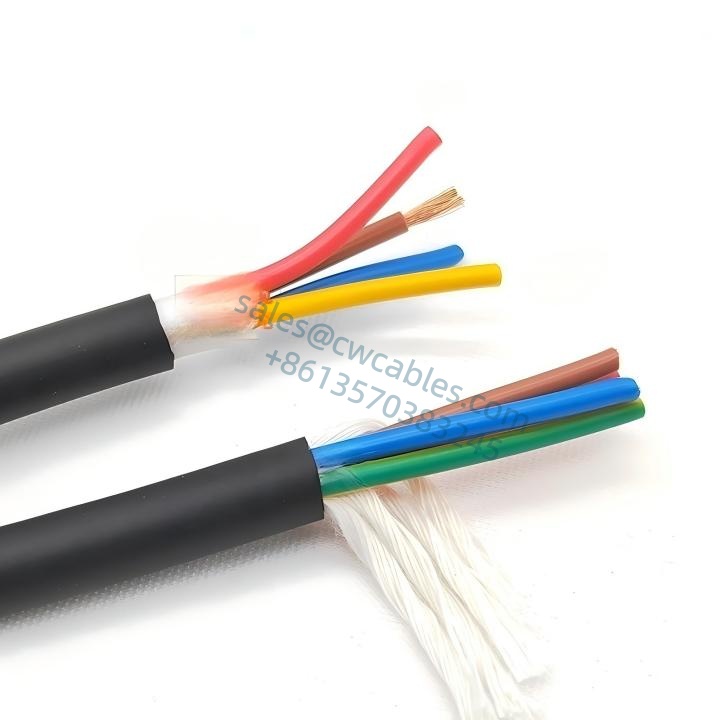

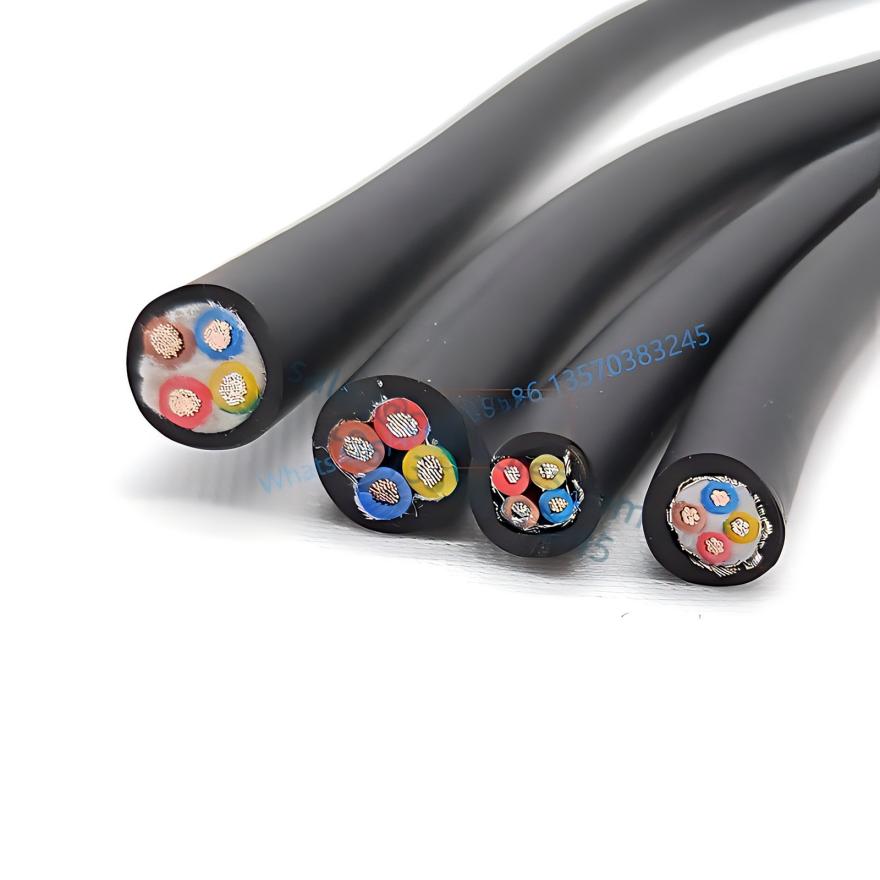

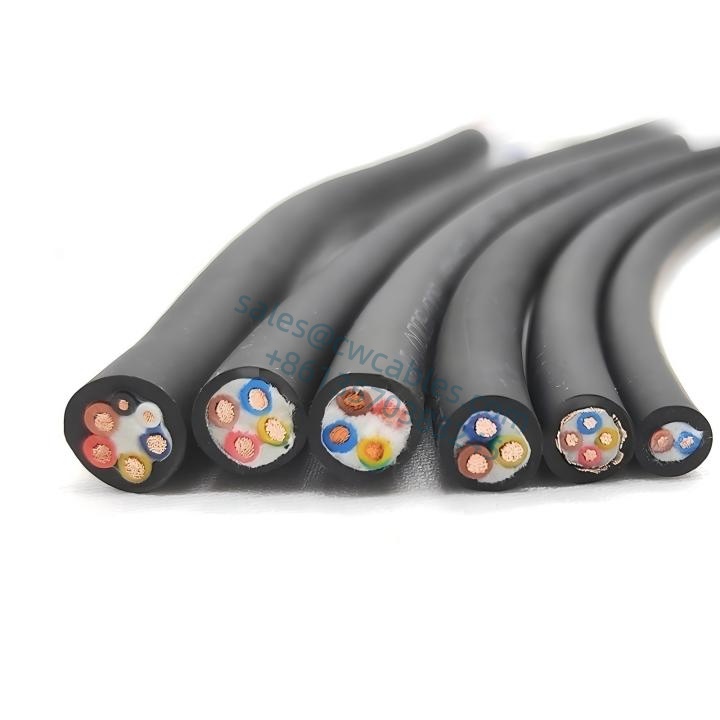

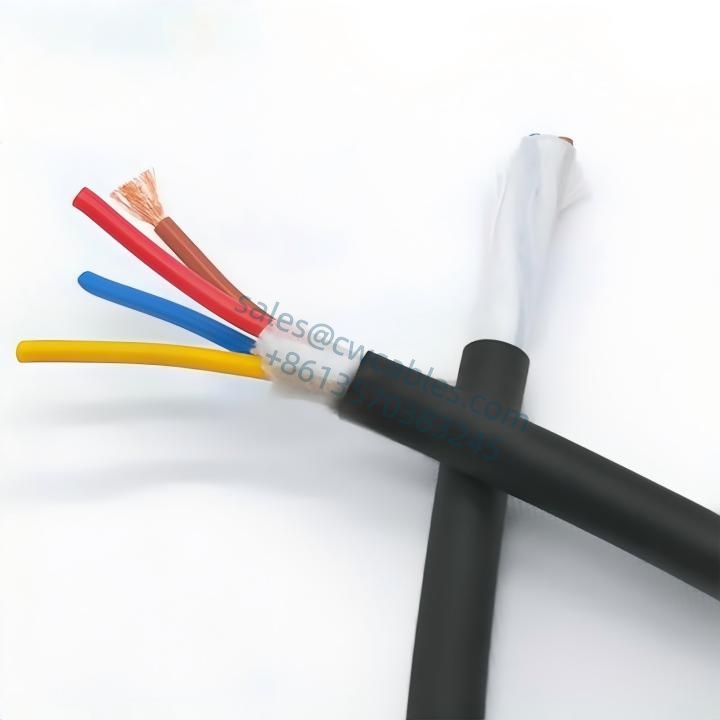

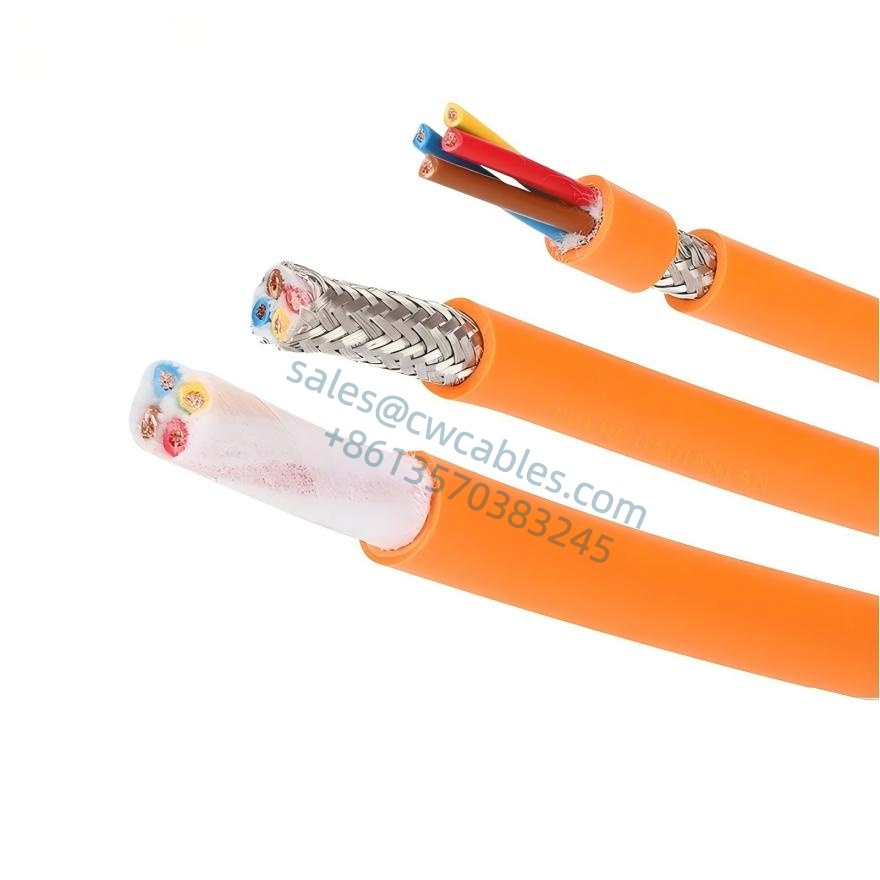

cable carrier power cables Structure:
● Bare copper conductor, fine copper wire Compliant with DIN VDE 0295 Class 6 and IEC 60228 Class 6
● Special PVC insulation
● Color-coded core identification
● Optimal lay length for stranded cores
● With yellow-green grounding wire (3 cores and above)
● Special PVC outer sheath
● Black color (RAL 9005) matte finish
| High Flexibility 5 Million Times Drag Chain Cable Test Standards | ||
| Drag Chain Bending Test Test Method: Take a 2-meter finished cable, with a bending radius of 6 times the outer diameter of the cable, a moving stroke of 900 mm, and reciprocating movement at a speed of 90 times/minute. |
Two-Wheel Winding Test Test Method: Take a 5-meter finished cable, according to the specified pulley diameter and weight of the weights. The pulley moves at a speed of 0.33 m/sec, and the moving distance is more than 1.0 meter under reciprocating conditions |
90-Degree Bend Test Test Method: Take a 2-meter finished cable, with a bending radius of 2.5 times the outer diameter of the cable, according to the standard specified weight of the weights, bending at a speed of 40 times/minute |
| Judgment Criteria: 1. The number of reciprocations exceeds 5,000,000 times without open circuit or short circuit. 2. The sheath is not broken | Judgment Criteria: 1. The number of reciprocations exceeds 200,000 times without open circuit or short circuit. 2. The sheath is not broken | Judgment Criteria: 1. The number of reciprocations exceeds 100,000 times without open circuit or short circuit. 2. The sheath is not broken |
