Technical data Linear Servo Motors Cable Linear Motor Wire
● The special Teflon insulation and special PUR sheath have ultra-high strength and bending/torsion performance
●Complies with TUV2 PfG 2577 Class V requirements.
●Temperature range: -20°C to +80°C for mobile installation -40°C to +90°C for fixed installation
●Nominal voltage 300/500V
●Test voltage 2000V
●Insulation resistance: Minimum 100 MOhm x km Minimum bending radius:6 x the cable diameter for mobile installation 4 x the cable diameter for fixed installation
●Complies with EU RoHS and Reach regulations.
●Oil resistance: Fully resistant to oil (in compliance with DIN EN50363-10-2 standard), Cass3.
● Black or color can be customized according to customer requirements

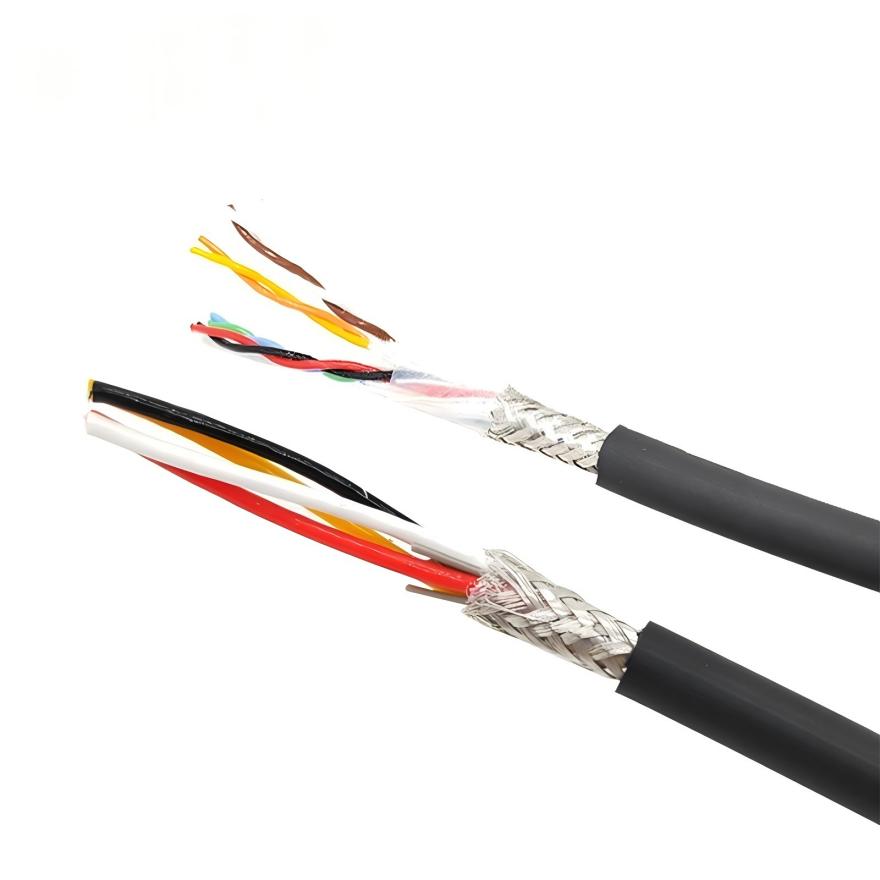

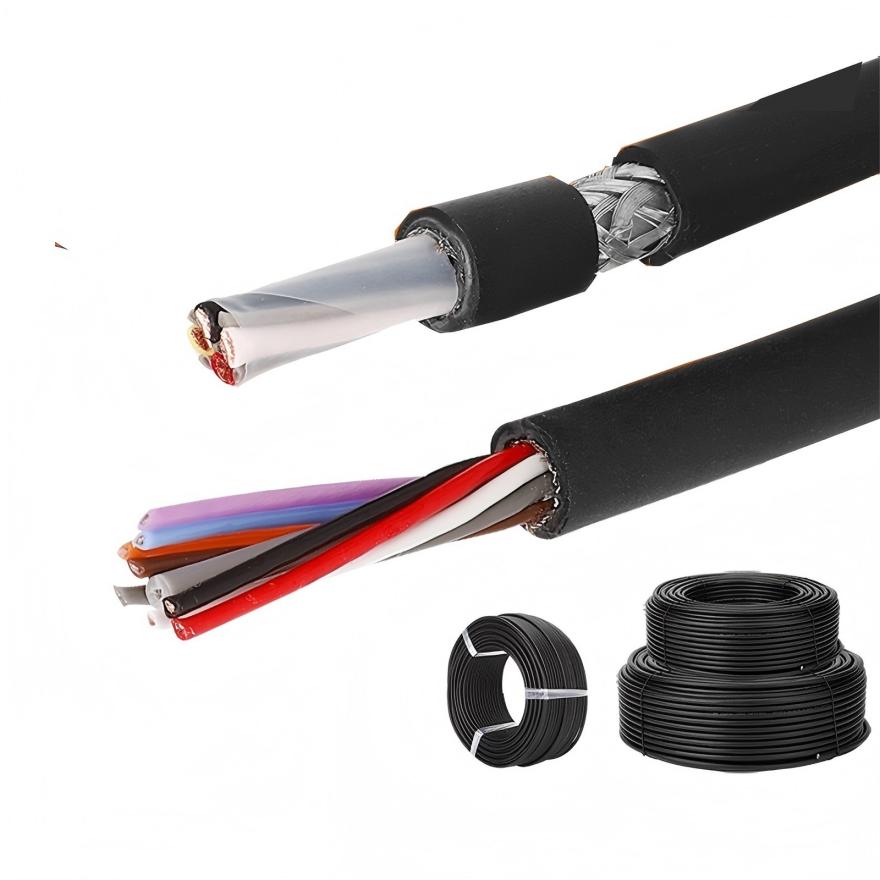

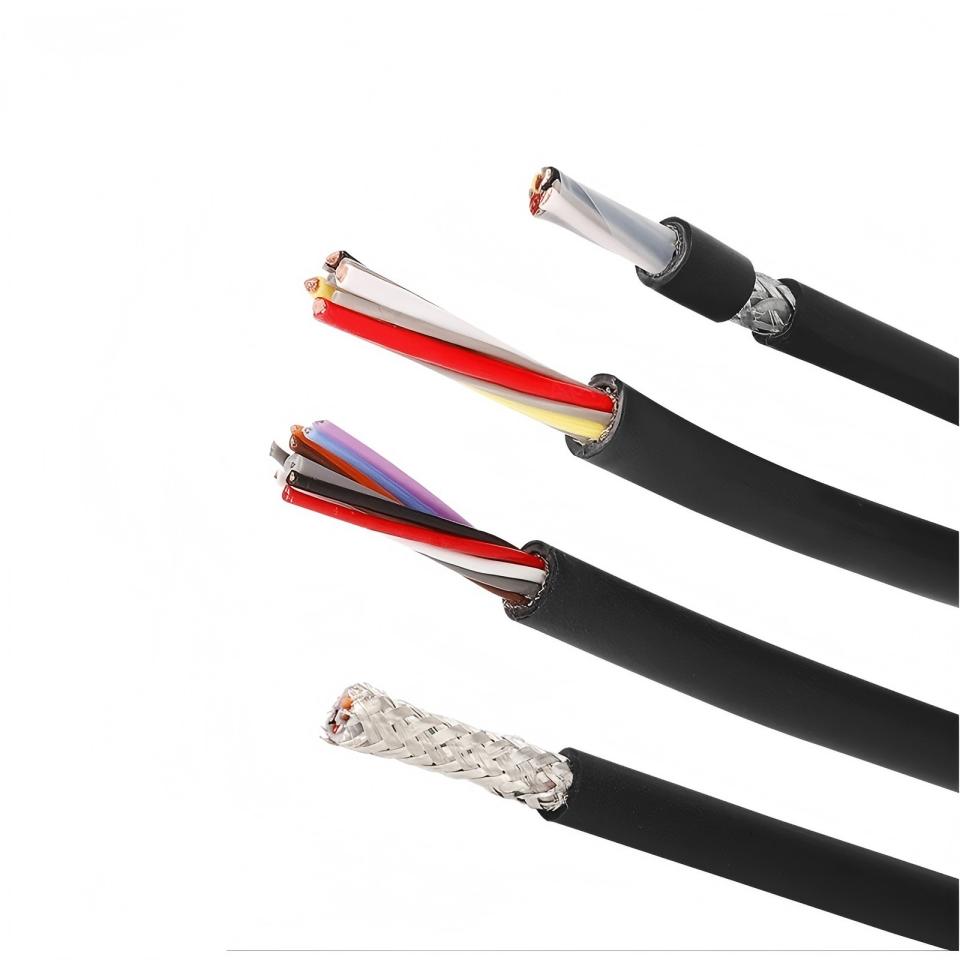

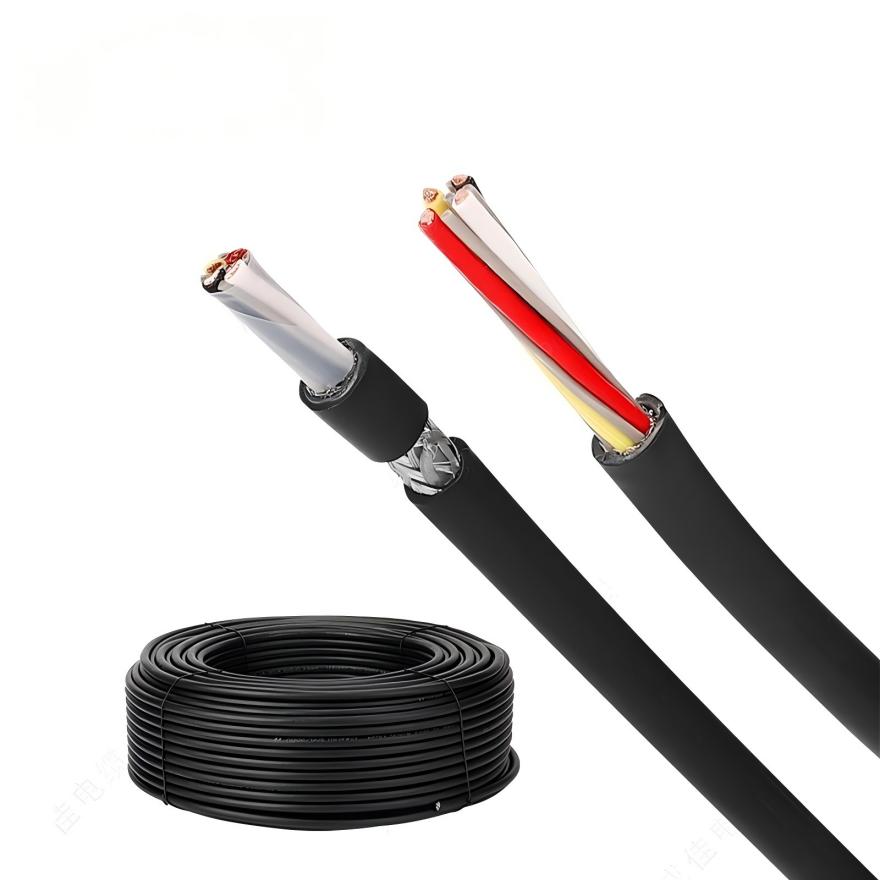

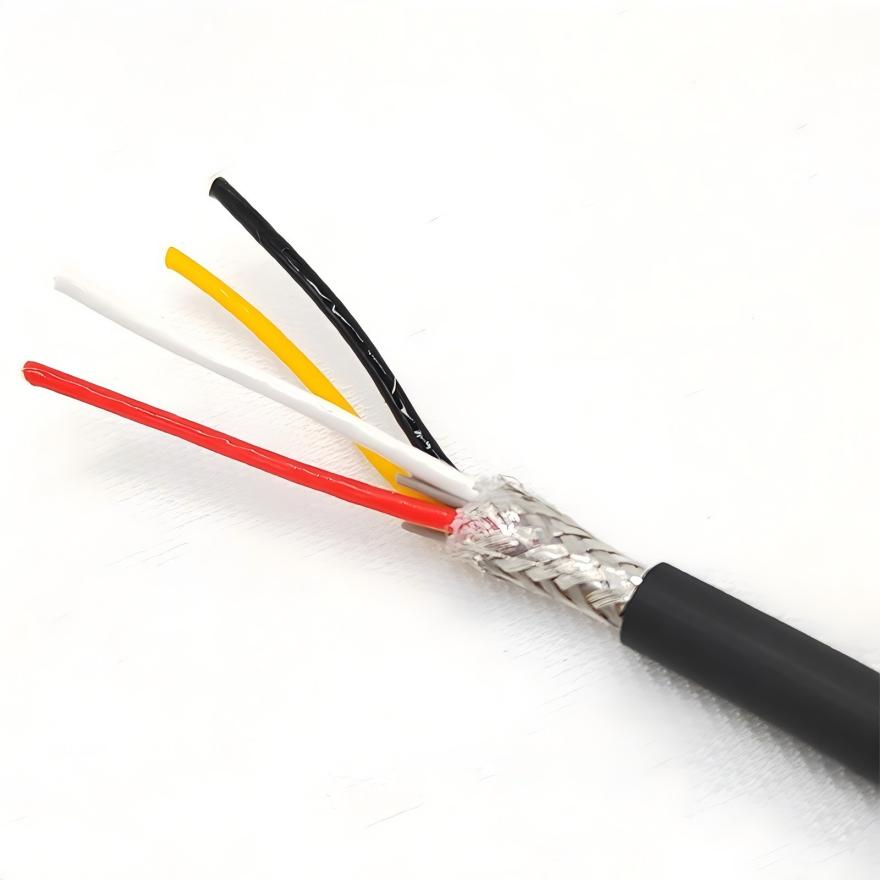

ケーブル構造
●Bare copper conductor, ultra-fine copper wire Complies with DIN VDE 0295 Class 6 and IEC60228 Class 6
●Special fluororesin insulation
●Core wire color is color-coded
●Optimal pitch layer stranded core wire
●Improved tinned copper wire braided shield
● Minimum coverage of 95%
● Low-friction, PUR-based compound suitable for use in drag chains (in compliance with Part 10 of DIN 0281 standard).
ULTRA HIGH SPEED LINEAR MOTOR POWER CABLE ( 50 million times reliability tests for drag chain) | ||||
いいえ。 | 製品コード | コア数と断面積 | おおよその外径(mm) | 外被シース色 |
(NO.Xm㎡) | ||||
1 | LM-FP5002.04.0050 | 4×0.5 | 5.2 | 黒 |
2 | LM-FP5002.04.0075 | 4×0.75 | 6.8 | 黒 |
3 | LM-FP5002.04.0100 | 4×1.0 | 7.5 | 黒 |
4 | LM-FP5002.04.0150 | 4×1.5 | 8 | 黒 |
5 | LM-FP5002.06.2026 | 4×0.5+(2×0.14) | 6.2 | 黒 |
