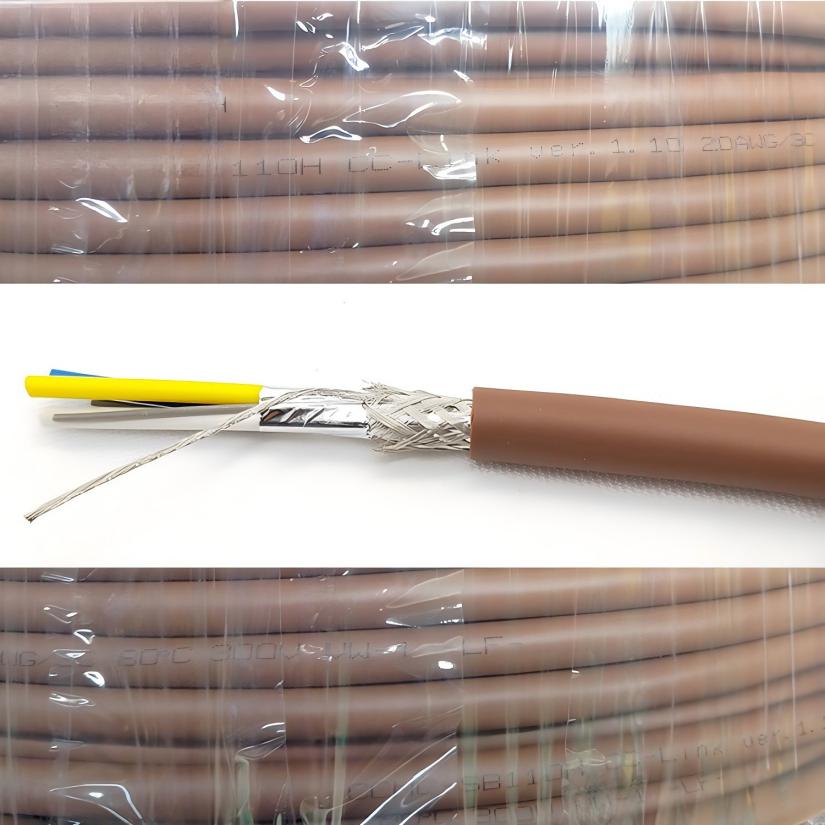

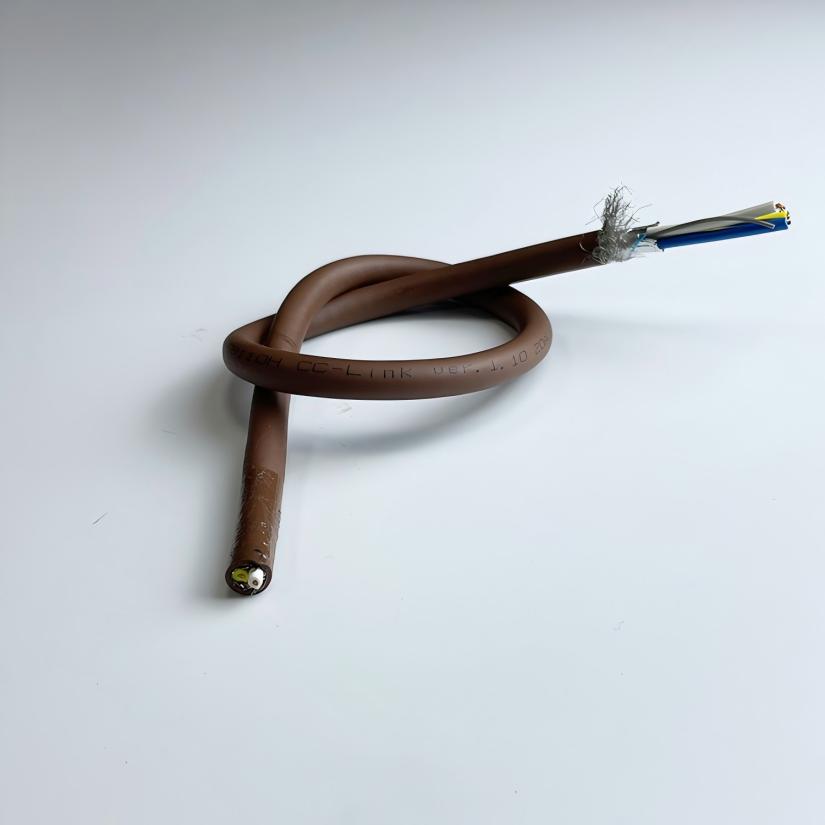

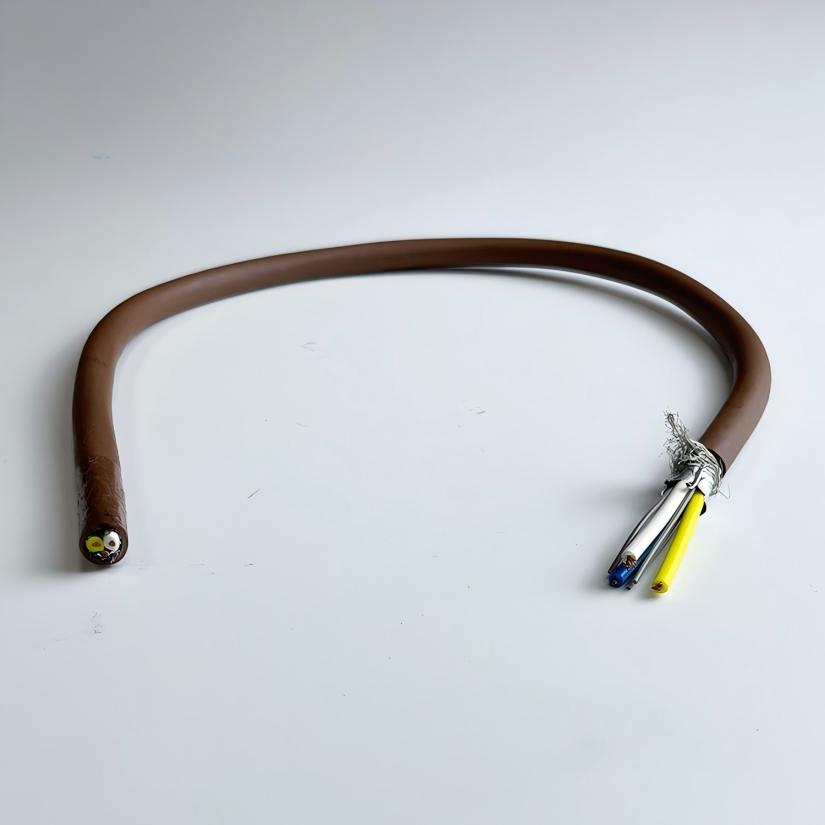

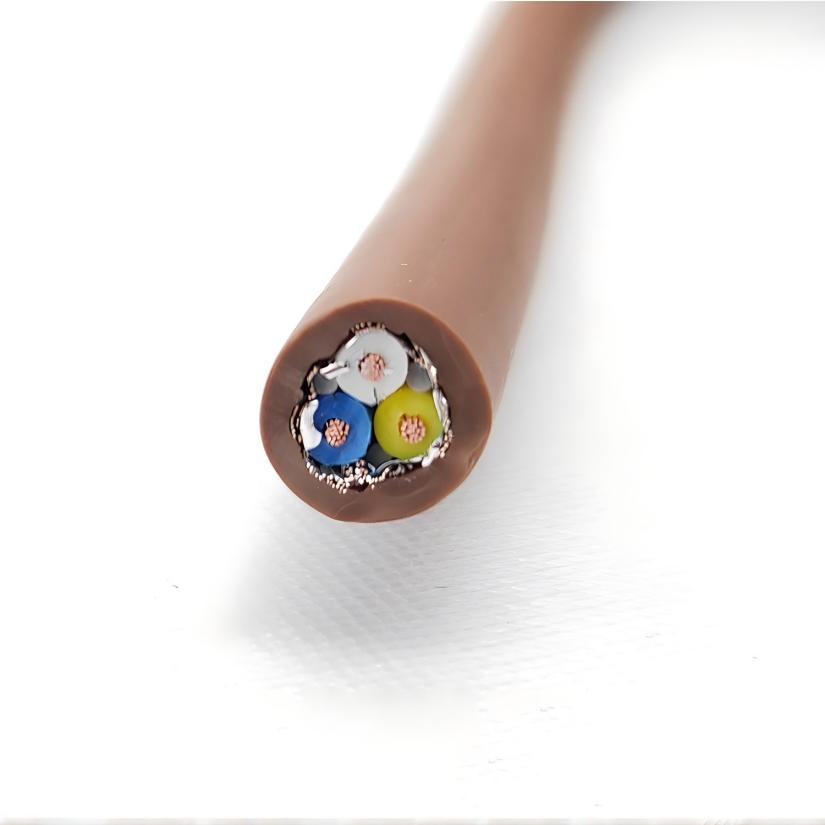

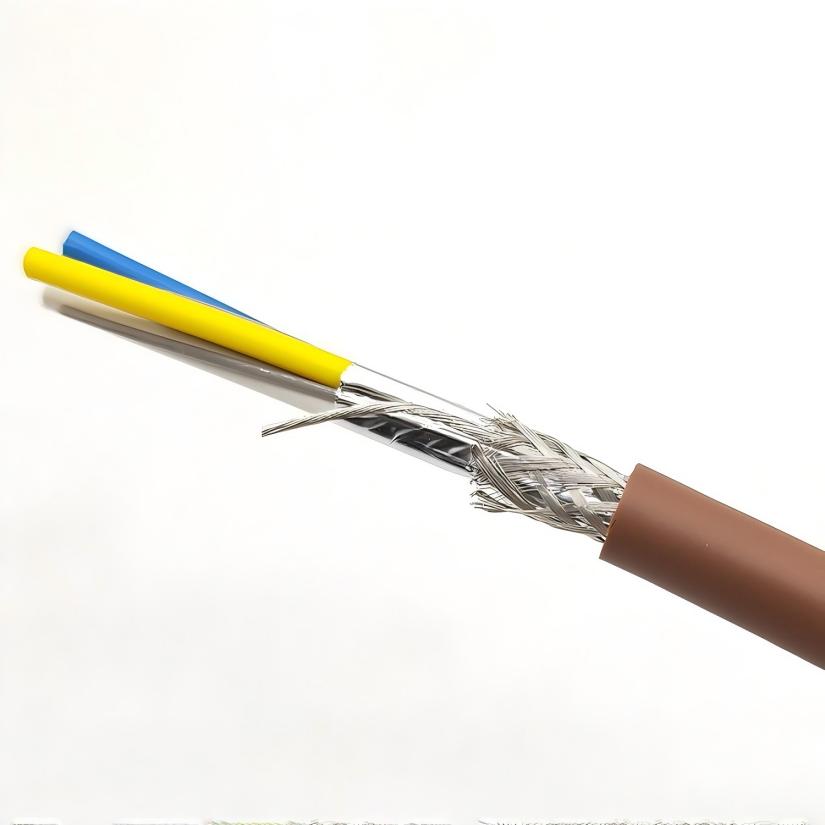

CC-Link ネットワークロボット FieldLink ケーブル 3XAWG20 PVC/TPU シース
This high-flexibility bus cable is designed for data transmission in CC-Link bus systems, specifically for applications requiring high flexibility. It features a special structural design and modified outer jacket material, providing excellent resistance to wear and media. It can withstand long-term acceleration, deceleration, stretching, and compression stresses, as well as millions of cycles of periodic bending.
技術的パラメータ
● Special PVC sheath, highly flexible.
● Complies with bus cable specifications.
● Temperature range: For mobile installation: -5°C to +70°C For fixed installation: -15°C to +80°C
● Nominal voltage: 50V
● Test voltage: 500V
● Insulation resistance: Minimum 20 MOhm x km
● Minim um bending radius: For mobile installation: 14 times cable diameter For fixed installation: 7 times cable diameter
● Complies with EU RoHS and Reach regulations
| CC-LINK BUS CABLE ( 2/5 million times reliability tests for drag chain) | ||||
| いいえ。 | 製品コード | コア数と断面積 | おおよその外径（mm） | 外被シース色 |
| (NO.Xm㎡) | ||||
| 1 | BUS-HY02.03.0050 | 3×0.50 | 7.9 | Brown |
| 2 | BUS-HY502.03.0050 | 3×0.50 | 9.0 | Blue |
PUR (available) has oil resistance, high abrasion resistance, UV resistance, acid and alkali resistance, chemical corrosion resistance, and resistance to various lubricants.
PUR (available) is resistant to low temperature, especially strong, impact-resistant, and can be selected for hydrolysis resistance.
Special models with customized conductor cross-sectional area, material, shielding, different colored cores, and other specifications of the sheath can be customized according to requirements.
