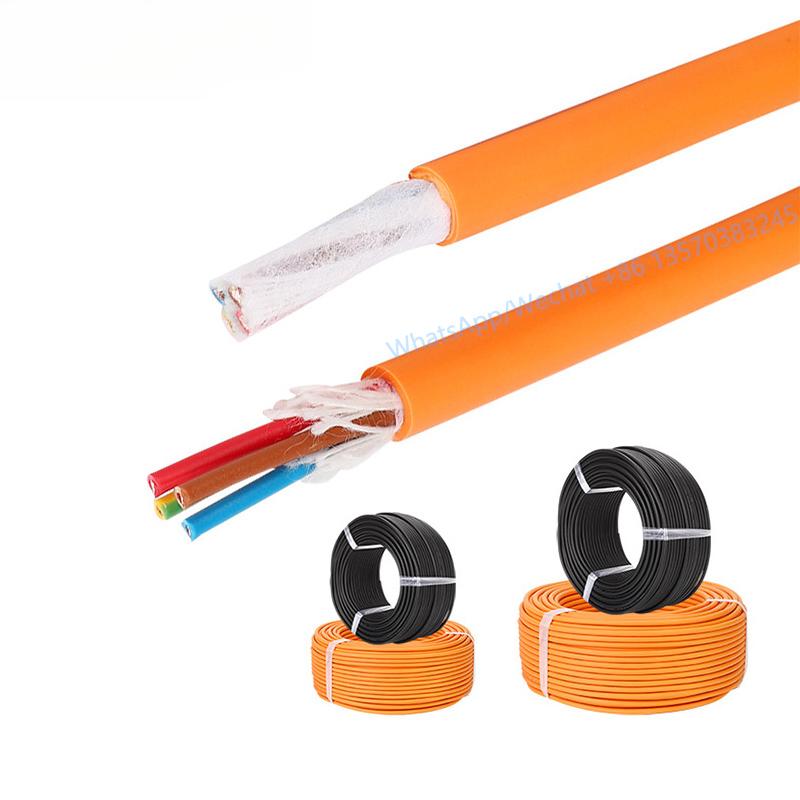

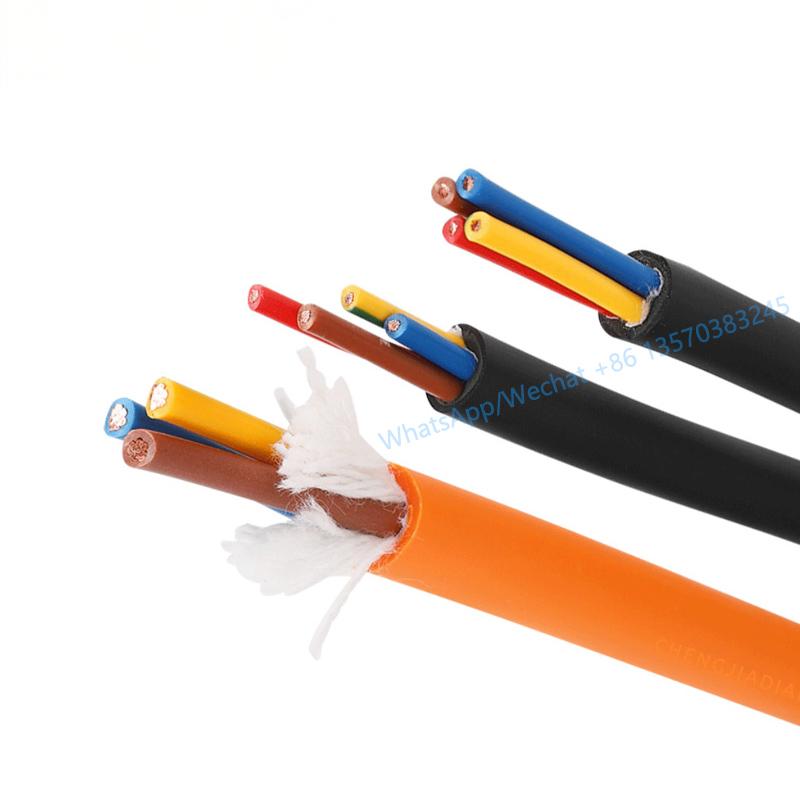

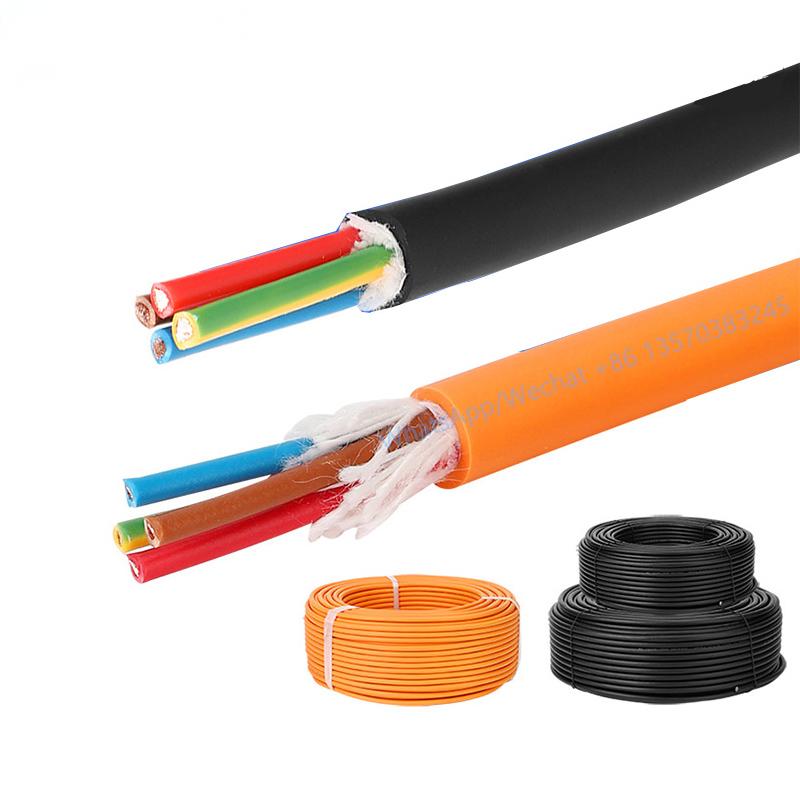

TY1008 HIGH FLEXIBILITY SERVO POWER CABLE SHIELDED (10 million times reliability tests for drag chain)
TY1008.04.0075 4G0.75mm2
SERVO POWER CABLE SHIELDED Technical data
Intervallo di temperatura:
Moving inside the drag chain: +5°C to 80°C
Moving outside the drag chain: -5°C to 80°C
Raggio di curvatura:
Moving inside the drag chain: Minimum 15 xd
Moving outside the drag chain: Minimum 12 xd
Vita della catena portacavi:
Fattori che influenzano la durata dei cavi nella catena portacavi:
Temperatura, Raggio di curvatura, Distanza percorsa, Velocità
Standard di prova TUV e catene portacavi stabili:
Intervallo di temperatura: da +15°C a 25°C
Bending radius: 15xd
Distanza di viaggio: 0,9 metri
Velocità: 90 cicli/minuto
The drag chain’s life can reach: 10 million cycle times
Voltaggio standard: 600/1000 V
Tensione di prova: 4000 V
SERVO POWER CABLE SHIELDED Application
Especially suitable for mechanical equipment, machine tools, and other applications involving continuous high-intensity and high-speed bending of drag chains.
Suitable for use in short-distance, high-speed drag chains.
The TY1008 series drag chain cables have been widely applied in indoor drag chain systems for warehousing equipment, processing equipment, packaging equipment, indoor cranes, glass equipment, as well as in the packaging and logistics industries
SERVO POWER CABLE SHIELDED Structure
Struttura del prodotto:
Complies with UL758 STYLE 2570
Conduttore:
Filo sottile intrecciato in rame nudo con elevata resistenza alla flessione, conforme a DIN VDE 0295 Classe 5 e IEC 60228 Classe 5
Isolamento:
Isolamento in polimero TPE ad alte prestazioni meccaniche
Conductor Colors:
For a single conductor, it uses one yellow-green ground wire along with black conductors marked with white numbers.
For two conductors, the power line uses one yellow-green ground wire with black conductors marked with white numbers; the brake line uses both black and white colors.
Phase Shielding:
High-strength tin-plated copper wire shielding with optical coverage > 85%.
Twisting Method:
Optimal pitch twisting.
Overall Shielding:
High-strength tin-plated copper wire shielding with optical coverage > 85%.
Giacca esterna:
Modified high-strength PVC polymer.
| Articolo | Codice prodotto | Numero di nuclei e area della sezione trasversale | Diametro esterno approssimativo | Colore | Numero del prodotto | MOQ |
| 1 | TY1008.02.0075 | 2×0,75 | 6.30 | orange | C-2200 | |
| 2 | TY1008.04.0050 | 4G0.5 | 6,60 | orange | C-2201 | |
| 3 | TY1008.04.0075 | 4G0.75 | 7.20 | orange | C-2202 | |
| 4 | TY1008.04.0100 | 4G1.0 | 7,80 | orange | C-2203 | |
| 5 | TY1008.04.0150 | 4G1.5 | 8,50 | orange | C-2204 | |
| 6 | TY1008.04.0250 | 4G2.5 | 10.00 | orange | C-2205 | ※ |
| 7 | TY1008.04.0400 | 4G4.0 | 11.50 | orange | C-2206 | ※ |
| 8 | TY1008.04.0600 | 4G6.0 | 13.50 | orange | C-2207 | ※ |
| 9 | TY1008.04.1000 | 4G10.0 | 18.00 | orange | C-2208 | ※ |
| 10 | TY1008.04.1600 | 4G16.0 | 22.00 | orange | C-2209 | ※ |
| 11 | TY1008.04.2500 | 4G25.0 | 26.20 | orange | C-2210 | ※ |
| 12 | TY1008.04.3500 | 4G35.0 | 30.00 | orange | C-2211 | ※ |
| 13 | TY1008.06.1920 | 4G0.75+(2×0.5+B) | 8.70 | orange | C-2212 | |
| 14 | TY1008.06.1719 | 4G1.0+(2×0.75+B) | 9,80 | orange | C-2214 | |
| 15 | TY1008.06.1519 | 4G1.5+(2×0.75+B) | 10.40 | orange | C-2215 | ※ |
| 16 | TY1008.06.1319 | 4G2.5+(2×0.75+B) | 11.80 | orange | C-2217 | ※ |
| 17 | TY1008.06.1315 | 4G2.5+(2×1.5+B) | 12.50 | orange | C-2219 | ※ |
| 18 | TY1008.06.1115 | 4G4.0+(2×1.5+B) | 14.40 | orange | C-2221 | ※ |
| 19 | TY1008.06.0915 | 4G6.0+(2×1.5+B) | 16.30 | orange | C-2223 | ※ |
| 20 | TY1008.06.0715 | 4G10.0+(2×1.5+B) | 19.60 | orange | C-2225 | ※ |
| 21 | TY1008.06.0515 | 4G16.0+(2×1.5+B) | 23.60 | orange | C-2227 | ※ |
| 22 | TY1008.06.0315 | 4G25.0+(2×1.5+B) | 28.00 | orange | C-2228 | ※ |
| 23 | TY1008.06.0215 | 4G35.0+(2×1.5+B) | 31.50 | orange | C-2229 | ※ |
Note
1: G = with yellow-green ground wire; X = without yellow-green ground wire
2: American standard AWG sizes are approximate; actual cross-sectional area prevails
3: Minimum order for specifications with ※ is 10 meters, shipped as needed
.
