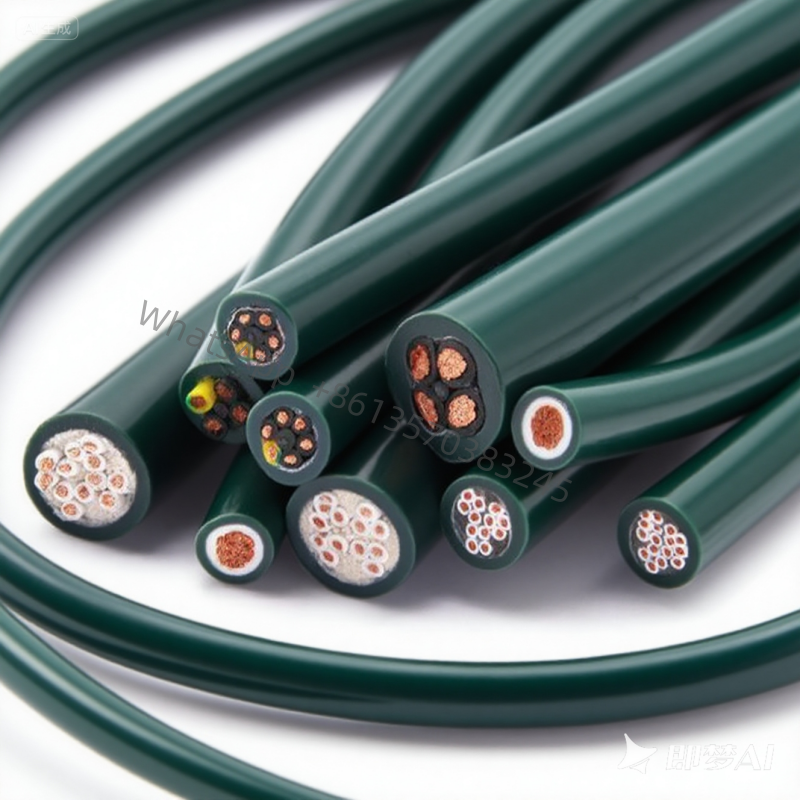

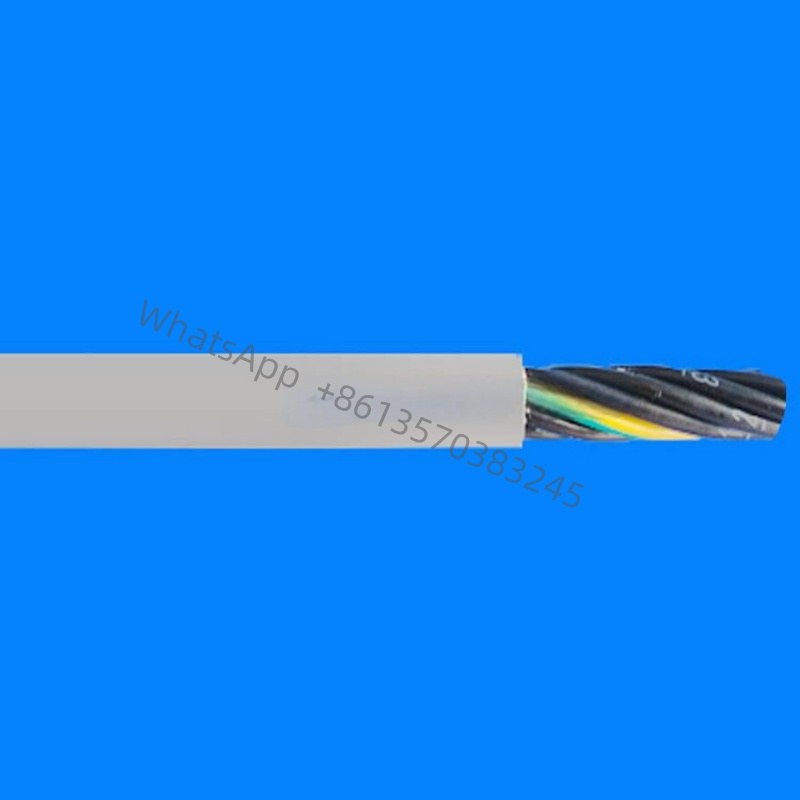

TY100.02 ULTRA HIGH FLEXIBLE CONTROL CABLE SHIELDED
(20 million times reliability tests for drag chain)
Overhead application travel distance is less than 100 meters
Dati tecnici
Temperature Range:
Moving inside the drag chain: +5°C to 80°C
Moving outside the drag chain: -5°C to 80°C
Bending Radius:
Moving inside the drag chain: Minimum 7.5xd
Moving outside the drag chain: Minimum 6xd
Drag Chain Life:
Factors affecting the service life of cables within the drag chain:
Temperature, Bending radius, Travel distance, Speed
TUV and Stable Drag Chain Testing Standards:
Temperature range: +15°C to 25°C
Bending radius: 7.5xd
Travel distance: 0.9 meters
Speed: 90 cycles/minute
The drag chain’s life can reach: 20 million cycle times
Maximum Speed and Acceleration:
Overhead: 8 m/s Sliding: 5 m/s Acceleration: 80 m/s²
Travel Distance:
For overhead applications, travel distance is less than 100 meters
Standard Voltage: 300/600V
Test Voltage: 3000V
Specifically designed for continuous high-intensity and high-speed bending applications of drag chains in mechanical equipment, machine tools, etc. Especially suitable for applications in high-speed, long-distance drag chains. The TY100.02 series drag chain cables have been widely used in indoor drag chain systems such as storage equipment, processing equipment, packaging equipment, indoor cranes, glass equipment, as well as in the packaging and logistics industries.
Struttura del cavo

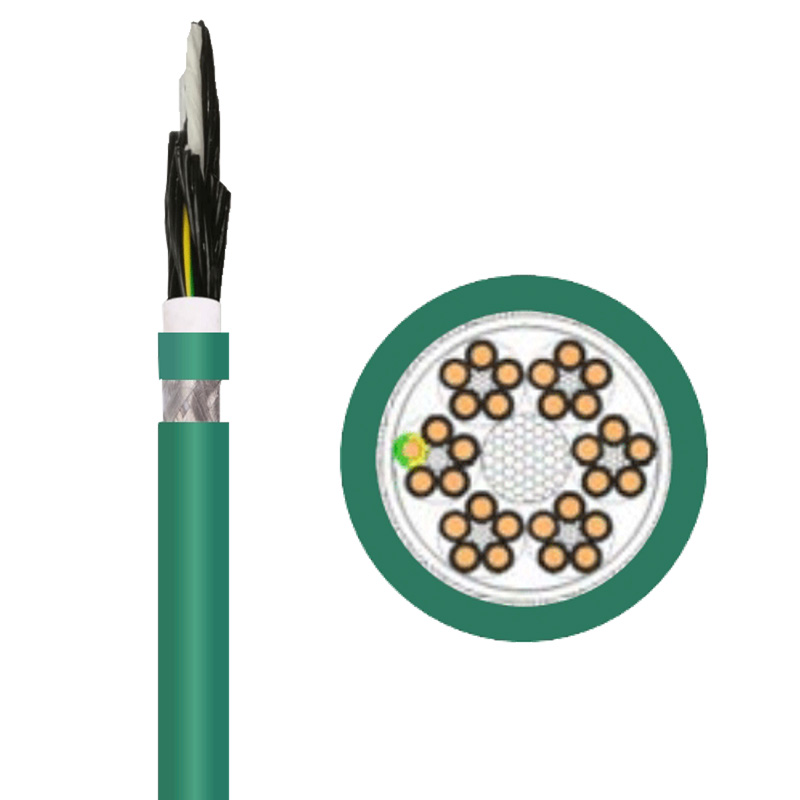

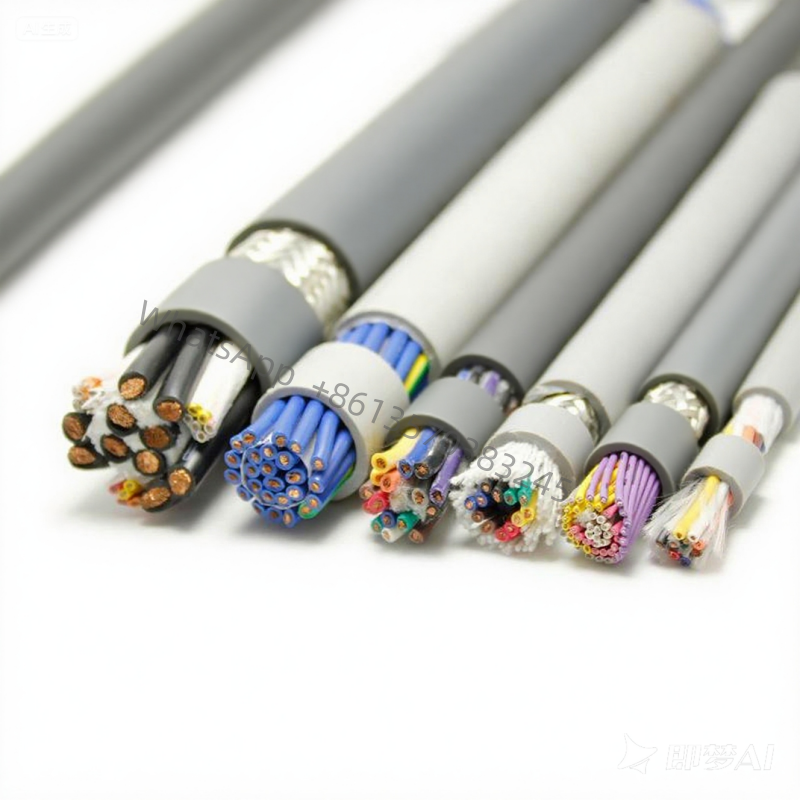

Product Structure:
Complies with UL758 STYLE 2570
Conductor:
Fine bare copper stranded wire with high bend strength, conforming to DIN VDE 0295 Class 5 and IEC 60228 Class 5
Insulation:
High mechanical performance TPE polymer insulation
Core Wire Color:
Cross-sectional area < 0.5 mm²: Colored core wires for differentiation, colors conform to DIN 47100 standard
Cross-sectional area ≥ 0.5 mm²: Green-yellow ground wire with black core wire marked with white numbers
Stranding Method:
For core wire quantity < 12: Short pitch stranding in one layer
For core wire quantity ≥ 12: Grouped and twisted twice to enhance torsional strength
Inner Sheath: Modified PVC Polymer
Overall Shielding: High-strength tinned copper wire shielding, optical coverage ≥ 85%
Outer Jacket:
Modified high-strength PVC polymer
| Item | Codice prodotto | Number of Cores and Cross-Sectional Area | Approximate Outer Diameter | Colore | Product Number | MOQ |
| 1 | TY100.02.03.0025 | 3×0.25 | 5.50 | Dark Green | C-601 | |
| 2 | TY100.02.04.0025 | 4×0.25 | 6.00 | Dark Green | C-602 | |
| 3 | TY100.02.07.0025 | 7×0.25 | 7.20 | Dark Green | C-605 | |
| 4 | TY100.02.12.0025 | 12×0.25 | 10.00 | Dark Green | C-609 | ※ |
| 5 | TY100.02.18.0025 | 18×0.25 | 12.00 | Dark Green | C-612 | ※ |
| 6 | TY100.02.25.0025 | 25×0.25 | 14.00 | Dark Green | C-615 | ※ |
| 7 | TY100.02.02.0034 | 2×0.34 | 5.80 | Dark Green | C-619 | |
| 8 | TY100.02.05.0034 | 5×0.34 | 7.00 | Dark Green | C-622 | |
| 9 | TY100.02.07.0034 | 7×0.34 | 8.00 | Dark Green | C-624 | |
| 10 | TY100.02.12.0034 | 12×0.34 | 11.00 | Dark Green | C-628 | ※ |
| 11 | TY100.02.02.0050 | 2×0,5 | 6.50 | Dark Green | C-638 | |
| 12 | TY100.02.04.0050 | 4G0.5 | 7.50 | Dark Green | C-640 | |
| 13 | TY100.02.05.0050 | 5G0.5 | 8.00 | Dark Green | C-641 | |
| 14 | TY100.02.07.0050 | 7G0.5 | 9.00 | Dark Green | C-643 | |
| 15 | TY100.02.12.0050 | 12G0.5 | 12.50 | Dark Green | C-647 | ※ |
| 16 | TY100.02.18.0050 | 18G0.5 | 14.80 | Dark Green | C-650 | ※ |
| 17 | TY100.02.25.0050 | 25G0.5 | 16.80 | Dark Green | C-653 | ※ |
| 18 | TY100.02.03.0075 | 3G0.75 | 7.50 | Dark Green | C-658 | |
| 19 | TY100.02.04.0075 | 4G0.75 | 8.00 | Dark Green | C-659 | |
| 20 | TY100.02.05.0075 | 5G0,75 | 8.50 | Dark Green | C-660 | |
| 21 | TY100.02.07.0075 | 7G0.75 | 10.00 | Dark Green | C-662 | ※ |
| 22 | TY100.02.12.0075 | 12G0.75 | 13.80 | Dark Green | C-666 | ※ |
| 23 | TY100.02.18.0075 | 18G0.75 | 16.80 | Dark Green | C-669 | ※ |
| 24 | TY100.02.25.0075 | 25G0.75 | 18.80 | Dark Green | C-672 |
| Item | Codice prodotto | Number of Cores and Cross-Sectional Area | Approximate Outer Diameter | Colore | Product Number | MOQ |
| 25 | TY100.02.02.0100 | 2×1.0 | 7.50 | Dark Green | C-676 | |
| 26 | TY100.02.03.0100 | 3G1.0 | 7.80 | Dark Green | C-677 | |
| 27 | TY100.02.04.0100 | 4G1.0 | 8.50 | Dark Green | C-678 | |
| 28 | TY100.02.05.0100 | 5G1.0 | 9.20 | Dark Green | C-679 | |
| 29 | TY100.02.07.0100 | 7G1.0 | 10.80 | Dark Green | C-681 | |
| 30 | TY100.02.12.0100 | 12G1.0 | 14.80 | Dark Green | C-685 | ※ |
| 31 | TY100.02.18.0100 | 18G1.0 | 18.50 | Dark Green | C-688 | |
| 32 | TY100.02.25.0100 | 25G1.0 | 20.50 | Dark Green | C-691 | ※ |
| 33 | TY100.02.03.0150 | 3G1.5 | 8.50 | Dark Green | C-696 | |
| 34 | TY100.02.04.0150 | 4G1.5 | 9.20 | Dark Green | C-697 | |
| 35 | TY100.02.05.0150 | 5G1.5 | 10.00 | Dark Green | C-698 | ※ |
| 36 | TY100.02.07.0150 | 7G1.5 | 12.00 | Dark Green | C-700 | ※ |
| 37 | TY100.02.12.0150 | 12G1.5 | 16.80 | Dark Green | C-704 | ※ |
| 38 | TY100.02.18.0150 | 18G1.5 | 20.50 | Dark Green | C-707 | ※ |
| 39 | TY100.02.25.0150 | 25G1.5 | 23.00 | Dark Green | C-710 | ※ |
| 40 | TY100.02.36.0150 | 36G1.5 | 27.00 | Dark Green | C-712 | ※ |
| 41 | TY100.02.04.0250 | 4G2.5 | 11.00 | Dark Green | C-716 | ※ |
Notes
1.G = With yellow-green ground wire X = Without yellow-green ground wire 2.American Wire Gauge (AWG) sizes are approximate; actual cross-sectional area prevails 3.For wire with an outer diameter greater than 10mm, a minimum order of 10 meters is required for the specified ※ items, and delivery will be made as needed
