Servo Motor Shielded Cable 4 Cores 15/13/11/9AWG（5 million cycle times)
For use with leading servo motors and heavy-load power cables in drag chains. Suitable across manufacturing equipment: pick-and-place devices, assembly lines, production machinery, and applications involving moving mechanical parts or drag chains. Specifically resistant in damp machine tool and transmission line environments.
Datos técnicos
● Funda de PVC especial, de altísima flexibilidad.
● Rango de temperatura Instalación móvil: -5°C a +70°C Instalación fija: -15°C a +80°C
● Tensión nominal Uo/U: 300/500V
● Tensión de prueba: 2000V
● Resistencia de aislamiento: Mínimo 20 MOhmxkm
● Minimum bending radius: Mobile installation: 6 x cable diameter
Fixed installation: 4 x cable diameter
●Cumple con las normas RoHS y Reach de la UE.
● Retardante de llama, conforme a IEC 60332-1-2, CEI 20-35, FT1, VW-1.

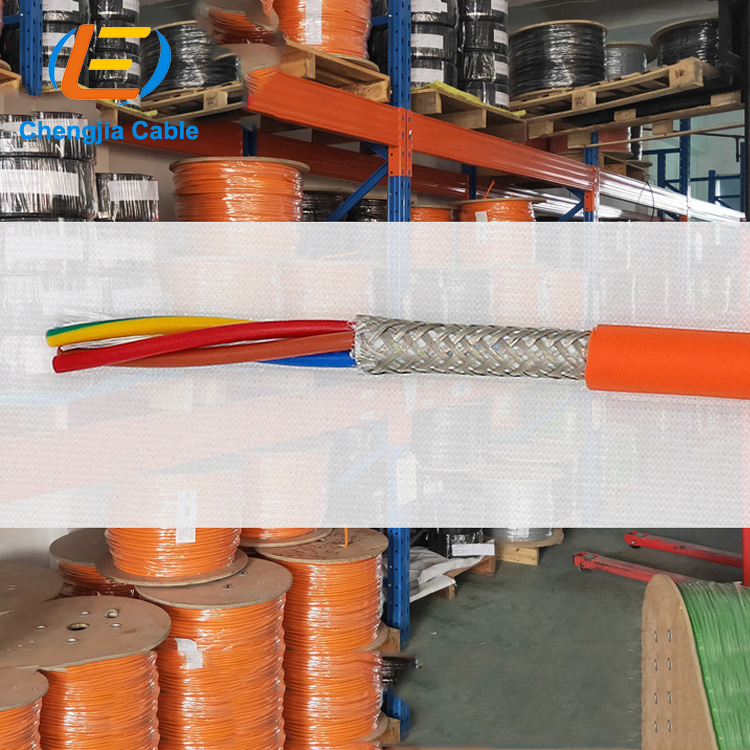

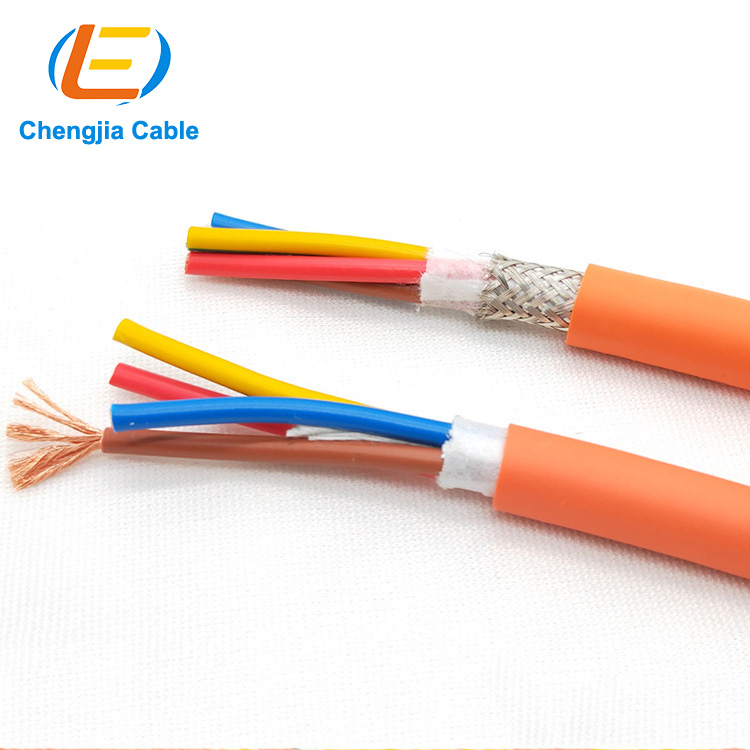

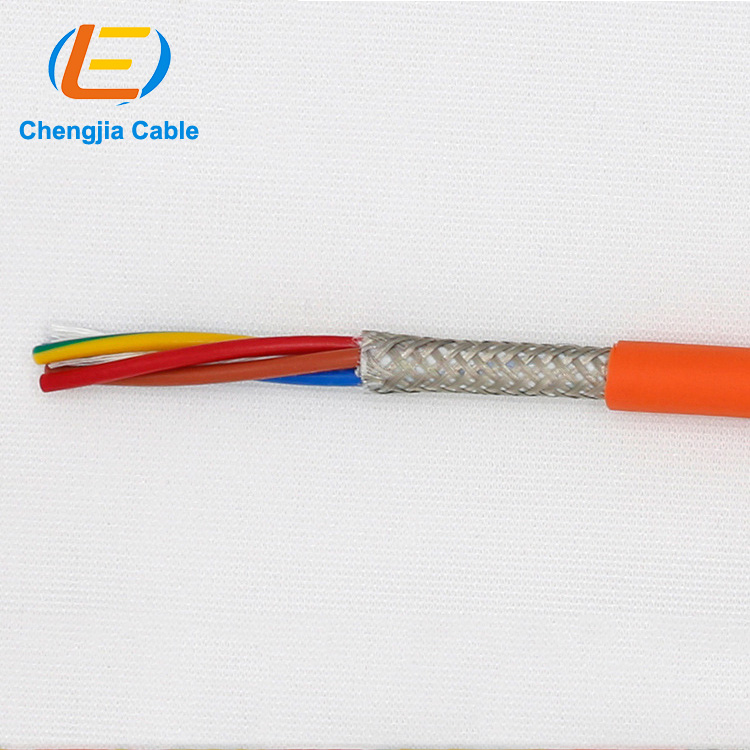

Servo Motor Shielded Cable Structure:
● Conductor de cobre desnudo de 0,08 mm², alambre de cobre ultrafino
●Cumple con DIN VDE 0295 Clase 6 e IEC 60228 Clase 6
●Aislamiento especial de PVC
●Núcleos codificados por colores
●Núcleos trenzados concéntricos de paso óptimo
●Con cable de conexión a tierra amarillo-verde (3 núcleos y más)
● Gris, negro, naranja o color se pueden personalizar según los requisitos del cliente.
| Servo Motor Shielded Cable MOQ 1 ROLL | |||||||||||
| Producto | Item | Model | Specification | OD | Color | 6.5~6.9 9 |
7~7.49 | 7.5~7.9 9 |
8~8.49 | 8.5~8.9 9 |
Mark |
| Ultra High Servo Motor Shielded Cable (10 million times reliability tests for drag chain) | 1 | YY1008.02.0050 | 2*0.5mm2 | 5.6 | Black/orange | 2.28 | 2.37 | 2.47 | 2.56 | 2.66 | China standard core wire colors: blue, brown, red, yellow/green |
| 2 | YY1008.04.0050 | 4*0.5mm2 | 6.5 | Black/orange | 3.58 | 3.72 | 3.87 | 4.02 | 4.17 | ||
| 3 | YY1008.04.0075 | 4*0.75mm2 | 7.2 | Black/orange | 5.32 | 5.55 | 5.77 | 5.99 | 6.21 | ||
| 4 | YY1008.04.0100 | 4*1.0mm2 | 7.8 | Black/orange | 6.60 | 6.87 | 7.15 | 7.42 | 7.70 | ||
| 5 | YY1008.04.0150 | 4*1.5mm2 | 9 | Black/orange | 9.23 | 9.61 | 10.00 | 10.38 | 10.76 | ||
| 6 | YY1008.04.0250 | 4*2.5mm2 | 11 | Black/orange | 14.61 | 15.22 | 15.82 | 16.43 | 17.04 | ||
| 7 | L-YY1008.02.0050 | 2*0.5mm2 | 5.6 | Black/orange | 2.28 | 2.37 | 2.47 | 2.56 | 2.66 | UL standard core wire colors: black, white, red, yellow/green | |
| 8 | L-YY1008.04.0050 | 4*0.5mm2 | 6.5 | Black/orange | 3.58 | 3.72 | 3.87 | 4.02 | 4.17 | ||
| 9 | L-YY1008.04.0075 | 4*0.75mm2 | 7.2 | Black/orange | 5.32 | 5.55 | 5.77 | 5.99 | 6.21 | ||
| 10 | L-YY1008.04.0150 | 4*1.5mm2 | 9 | Black/orange | 9.23 | 9.61 | 10.00 | 10.38 | 10.76 | ||
| 11 | L-YY1008.04.0250 | 4*2.5mm2 | 11 | Black/orange | 14.61 | 15.22 | 15.82 | 16.43 | 17.04 | ||
| 12 | MC-YY3008.04.0050 | 4*0.5mm2 | 6.3 | Negro | 4.39 | 4.57 | 4.75 | 4.94 | 5.12 | Gecko head power cord, UL printed, core Wire colors black, white, red, yellow/green |
|
| 13 | MC-YY3008.06.2024 | 4*0.5+2*0.2 | 6.3 | Negro | 5.17 | 5.38 | 5.60 | 5.81 | 6.03 | ||
