YY01 RVV Flexible Control Cable – Low-Speed High-Flex Cable for Automation Systems
Descripción del Producto
El Cable de control flexible YY01 RVV is a standard low-speed motion cable primarily used in control and power transmission systems. It is widely deployed in sensing technology, computer control equipment, and industrial control engineering. For cables with three or more cores, a green/yellow protective grounding wire is included for enhanced safety.
Key features include:
- Short twisted pitch – Optimized for signal integrity and flexibility.
- Sheath color – Standard black, with other colors available upon request.
- Durabilidad excepcional – Under standard installation and use, service life can reach over 3 million bending cycles.
This unshielded multi-conductor cable is ideal for fixed or low-speed traversing applications where reliability and longevity are essential.

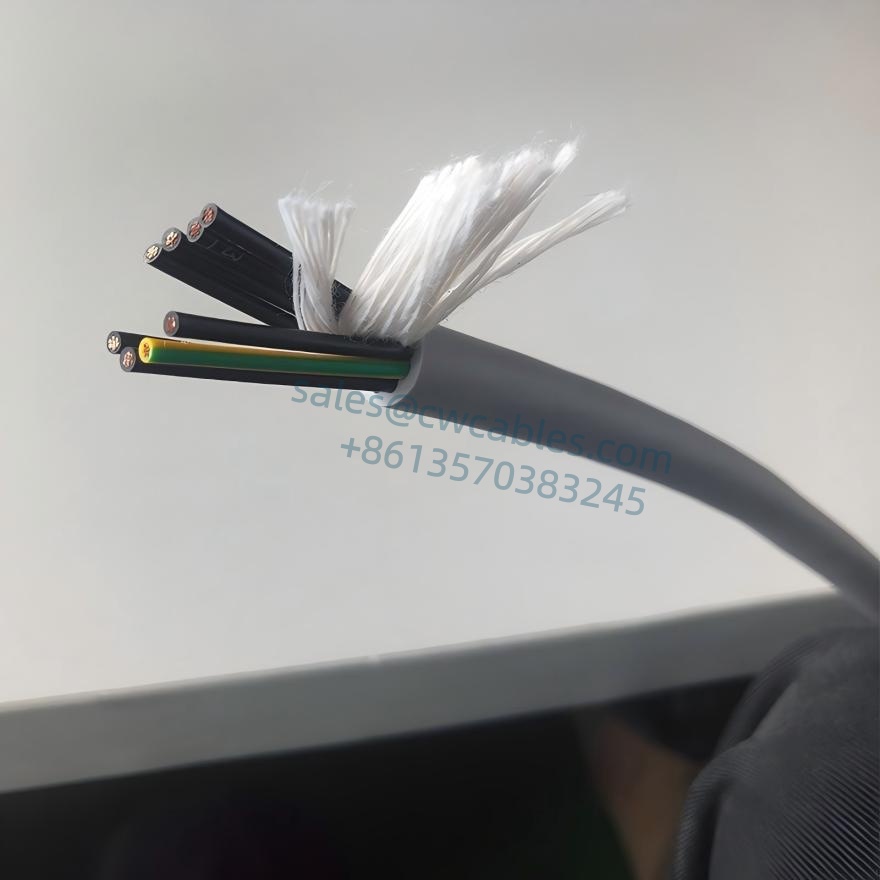

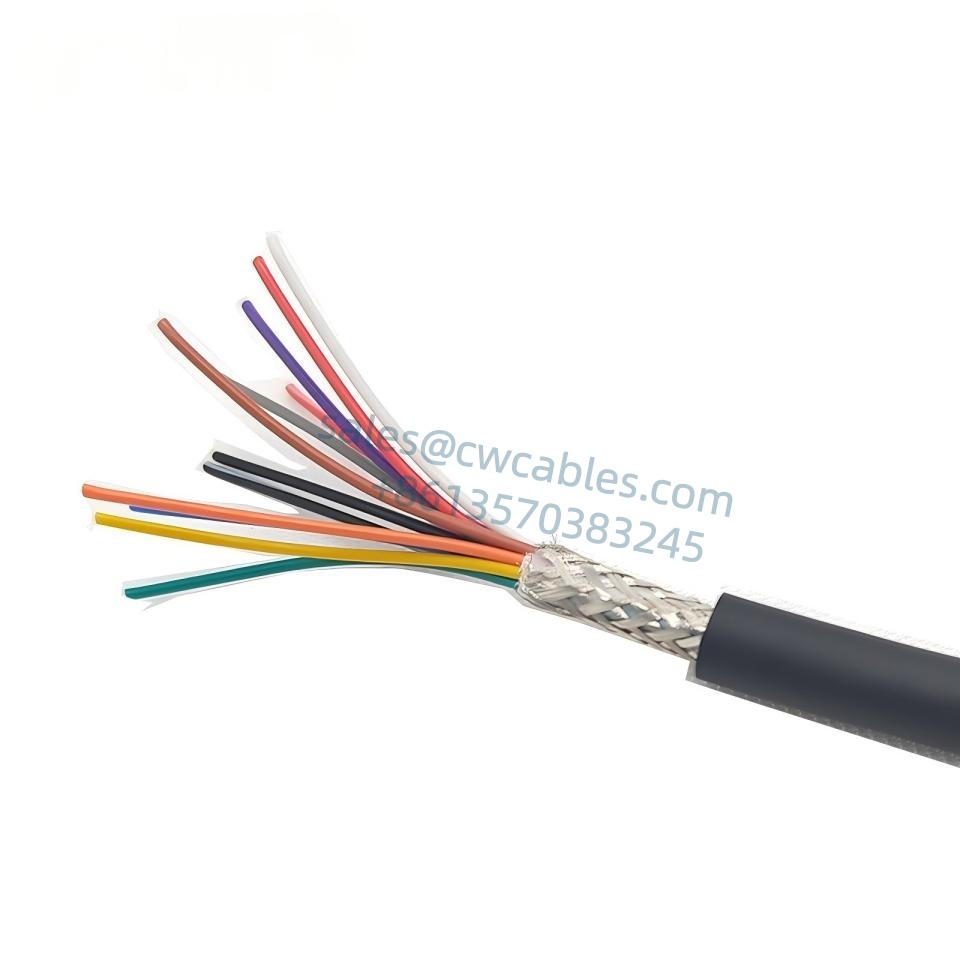

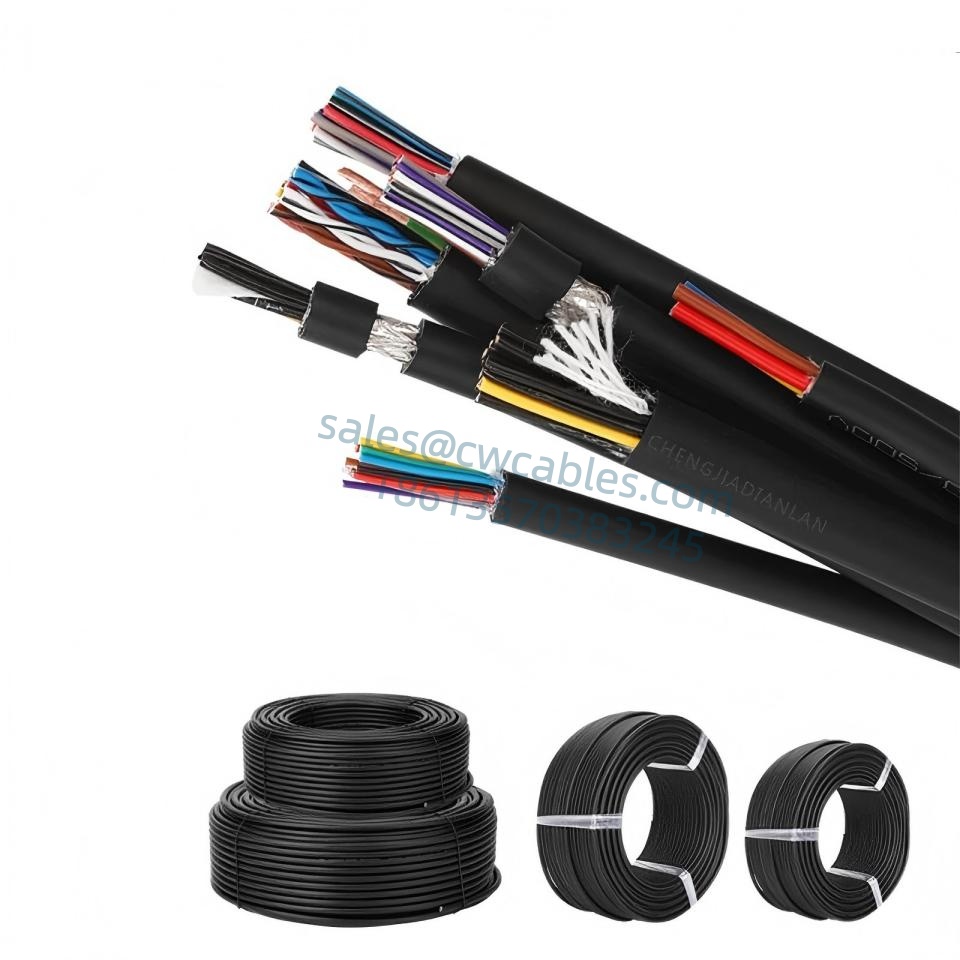

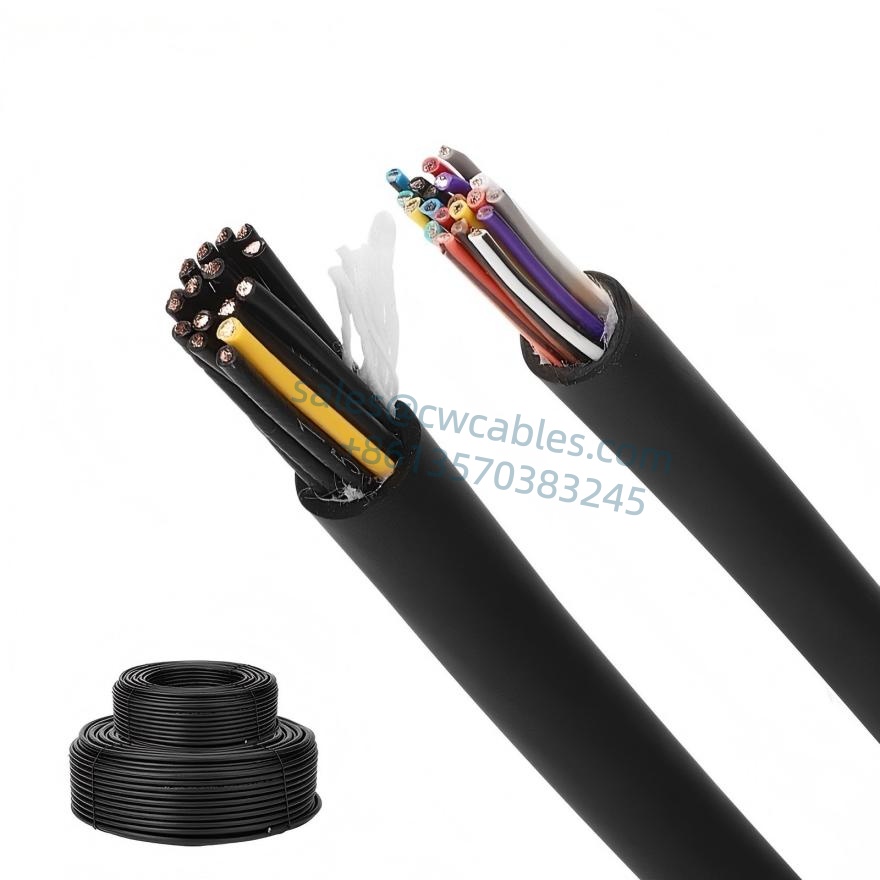

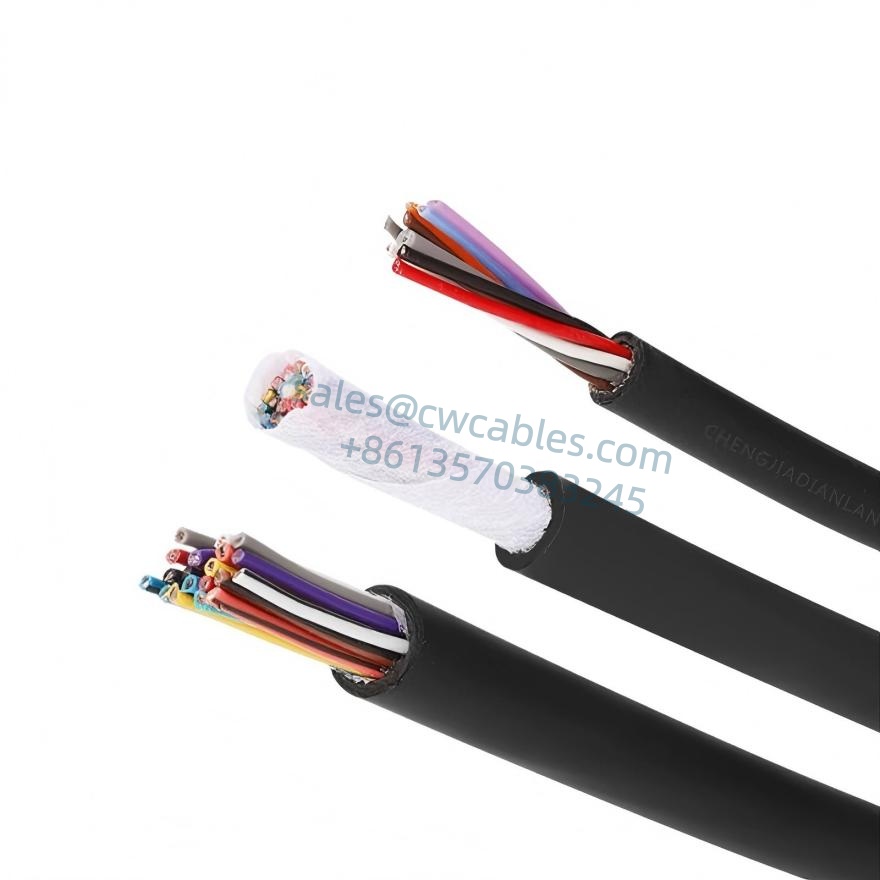

Galería de productos
RVV Flexible Control Cable – Technical Parameters
| Parámetro | Especificación |
|---|---|
| Estándar | Cumple con el estándar UL20276, diseño de diámetro de alambre delgado |
| Conductor | Alambre trenzado de cobre estañado de alta calidad. |
| Material aislante | PVC modificado |
| Estructura central | Trenzado sencillo de paso pequeño |
| Reconocimiento central | Por debajo de 0,5 mm²: cables con núcleo de colores; Por encima de 0,5 mm²: cable de tierra amarillo-verde + cable de núcleo negro con números blancos |
| Funda exterior | Material de PVC modificado |
| Color | Negro (otros colores personalizables) |
| Radio de curvatura | Drag chain moving: >7.5 × d Non-drag chain moving: >6 × d Fixed laying: >5 × d |
| Velocidad de movimiento | Movimiento fijo o de baja velocidad, inferior a 0,3 m/s |
| Distancia de viaje | Tendido fijo, menos de 30 metros (atenuación de señal más allá de esto) |
| Tensión nominal | Uo/U 300/300V |
| Voltaje de prueba | 1500 voltios |
| Solicitud | Suitable for CNC machine tools, industrial robots, servo drives, woodworking machinery, mask machines, manipulators, dispensing machines, laser equipment, stamping lines, logistics automation, ceramic production equipment, and other non-standard automated production equipment. Withstands long-term acceleration, deceleration, tensile/compressive stress, and high-speed periodic bending while maintaining high stability. |
RVV Flexible Control Cable – Construction Details
1. Tinned copper conductor, thin copper wire – compliant with DIN VDE 0295 Class 6 and IEC 60228 Class 6
2. Special PVC insulation for flexibility and durability
3. Identificación del cable central por color para una fácil instalación
4. Wire core stranded in layers with optimal pitch
5. Special PVC outer sheath – oil-resistant and abrasion-resistant
6. Black (RAL 9005) matte finish – anti-UV for outdoor use (non-direct burial)
