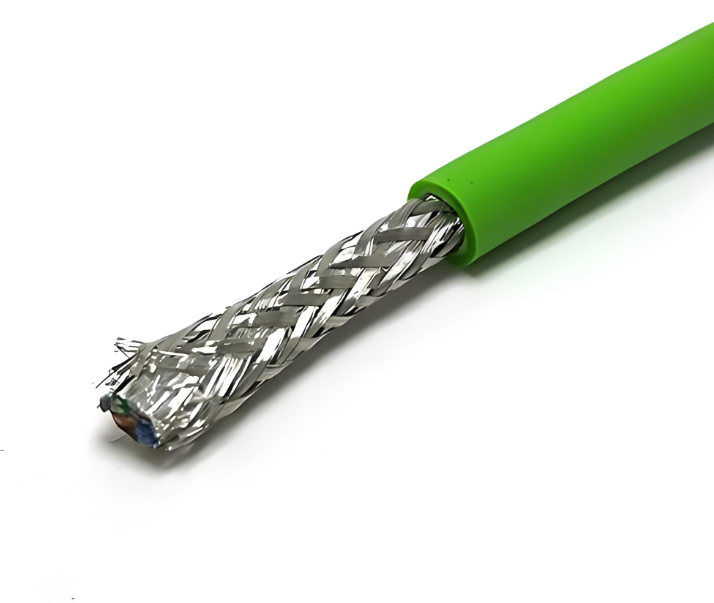

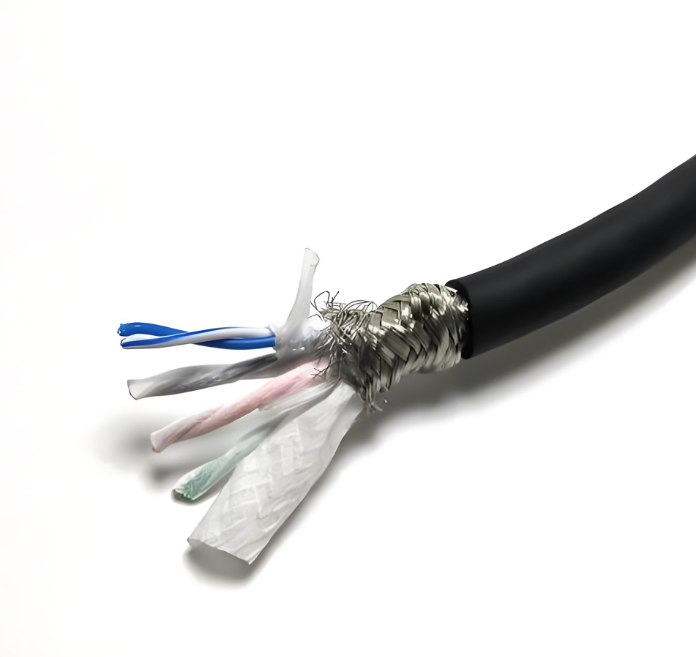

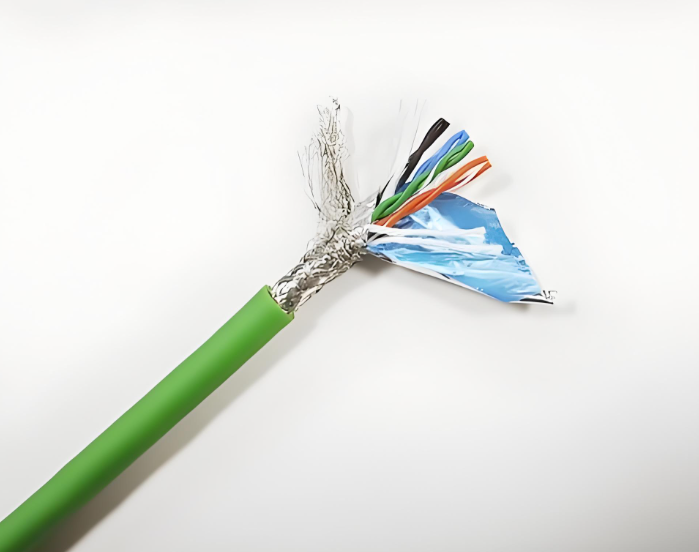

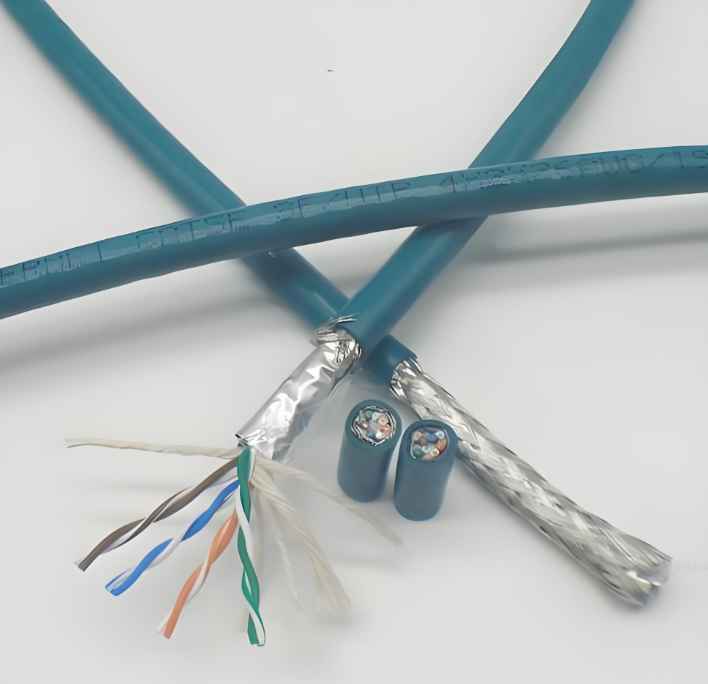

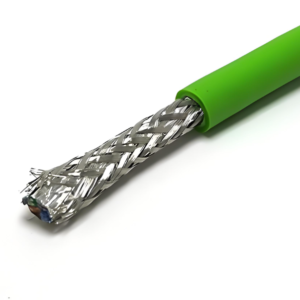

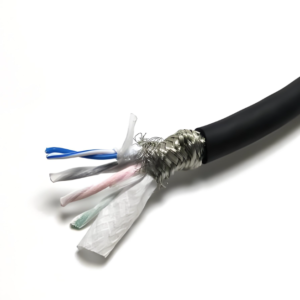

هيكل المنتج
● Conductor ： Stranded fine bare copper twisted wires
Compliant with IEC 60228 & DIN VDE 0295 conductor standards
● Insulation： PE Polyethylene
Brown & White-Brown, Blue & White-Blue, Orange & White-Orange, Green & White-Green
● Filler： Multi-strand tensile cotton yarn filling
● Shield ： Non-woven fabric / Aluminum foil wrapping + Tinned copper braided shielding layer
Overall shielding coverage ≥85%
● Outer Sheath： High mechanical performance special PVC (PUR material optional)
Matte green (similar to RAL 6018) or matte black (similar to RAL 9005)
المعلمات التقنية
●Rated Voltage： 300V
●Test Voltage： 1500V
●Characteristic Impedance： 100±15Ω
●Temperature Range： Fixed installation (-40~+80°C) Moving drag chain (-20~+70°C)
●Bending Radius： Fixed installation 6 x D (Cable Ø) Moving drag chain 10 x D (Cable Ø)

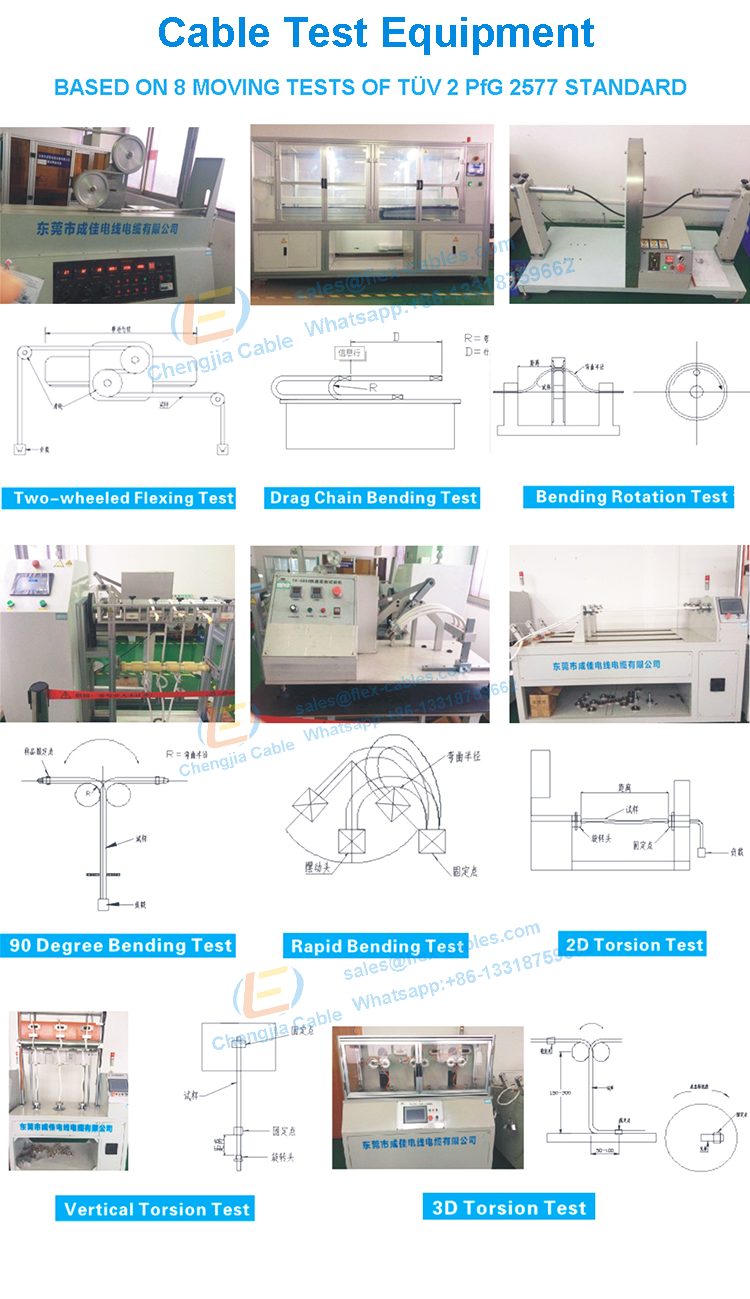

●Drag Chain Performance： ≥10 million cycles (Moving speed ≤2.1M/S)
●Torsion Performance： ≥2 million cycles (L≥400mm; ±180°, 40/min)
●Oil Resistance ： Excellent oil resistance, compliant with UL 758
●Flame Retardant ： Compliant with UL 1581 FT1, VW-1 / IEC 60332-1-2
●Lead-Free： Compliant with EU 2011/65/EU (RoHS-II) environmental standard
Application Scenarios
● Suitable for EtherCAT and EtherNet/IP applications
● For Industrial Ethernet 10/100/1000 Mbit/s
● Medium & high-speed frequent drag chain applications
● Wear-resistant, oil-resistant, flame retardant application scenarios
● Suitable for applications with extremely strict anti-electromagnetic interference requirements
